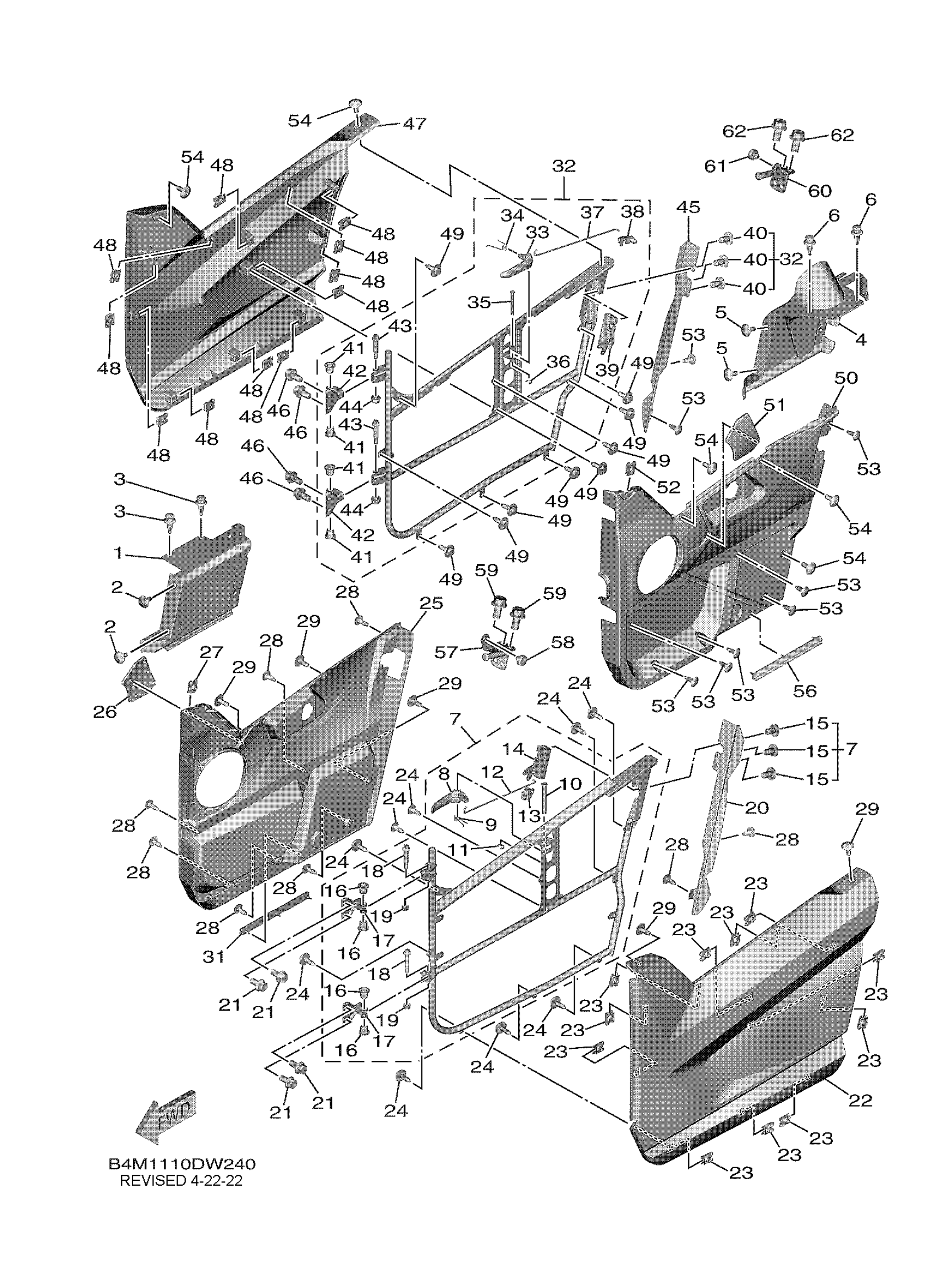

Yamaha YXE10WRZNB (WOLVERINE RMAX2 EPS XTR) B4MC 2022 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

B4J-F1721-01-00

$109.99

2

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

COVER, SIDE 3

B4J-F1731-00-00

$21.99

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

FF. DOOR COMP. LH

B4J-K8504-01-00

$220.99

8

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

9

SPRING

2HC-F1742-00-00

$2.96

10

. PIN

90249-05801-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

Unavailable

12

ROD 1

B4J-F7247-00-00

$3.76

13

CLIP, CABLE

BG4-F2805-01-00

$2.17

14

LOCK ASSY

B4J-F16A0-02-00

$53.99

15

SCREW

90149-08805-00

$1.01

16

BUSH, SOLID

90381-08001-00

Unavailable

17

HINGE

B4J-F1796-01-00

Unavailable

18

BOLT

90109-068C9-00

Unavailable

19

NUT, U FLANGE

95604-06200-00

Unavailable

20

PLATE 1

B4J-F191B-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

SIDE COVER COMP. 1

B4J-F17E0-20-00

Unavailable

23

NUT, SPRING

90183-062A1-00

Unavailable

24

BOLT, WITH WASHER

90119-06226-00

Unavailable

25

PNL., DOOR FR. LH

B4J-K8557-00-00

Unavailable

26

PROTECTOR 1

B4J-K811V-01-00

Unavailable

27

NUT, SPRING

90183-062A1-00

Unavailable

28

RIVET(8AB)

90269-05073-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

31

SEAL 2

B4J-F1735-00-00

Unavailable

32

FF. DOOR COMP. RH

B4J-K8505-01-00

Unavailable

33

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

34

SPRING

2HC-F1742-00-00

$2.96

35

. PIN

90249-05801-00

Unavailable

36

CIRCLIP (EU0)

99080-04600-00

Unavailable

37

ROD 2

B4J-F7248-00-00

Unavailable

38

CLIP, CABLE

BG4-F2805-01-00

$2.17

39

LOCK ASSY 2

B4J-F16B0-02-00

Unavailable

40

SCREW

90149-08805-00

$1.01

41

BUSH, SOLID

90381-08001-00

Unavailable

42

HINGE

B4J-F1796-01-00

Unavailable

43

BOLT

90109-068C9-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

PLATE 2

B4J-F191C-00-00

Unavailable

46

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

47

SIDE COVER COMP. 2

B4J-F17F0-20-00

Unavailable

48

NUT, SPRING

90183-062A1-00

Unavailable

49

BOLT, WITH WASHER

90119-06226-00

Unavailable

50

PNL., DOOR FR. RH

B4J-K8558-00-00

Unavailable

51

PROTECTOR 1

B4J-K811V-01-00

Unavailable

52

NUT, SPRING

90183-062A1-00

Unavailable

53

RIVET(8AB)

90269-05073-00

Unavailable

54

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

56

SEAL 2

B4J-F1735-00-00

Unavailable

57

HOOK, SIDE COVER 1

B4J-F1331-01-00

Unavailable

58

PLUG

90338-10801-00

Unavailable

59

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

60

HOOK, SIDE COVER 2

B4J-F1332-01-00

Unavailable

61

PLUG

90338-10801-00

Unavailable

62

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
