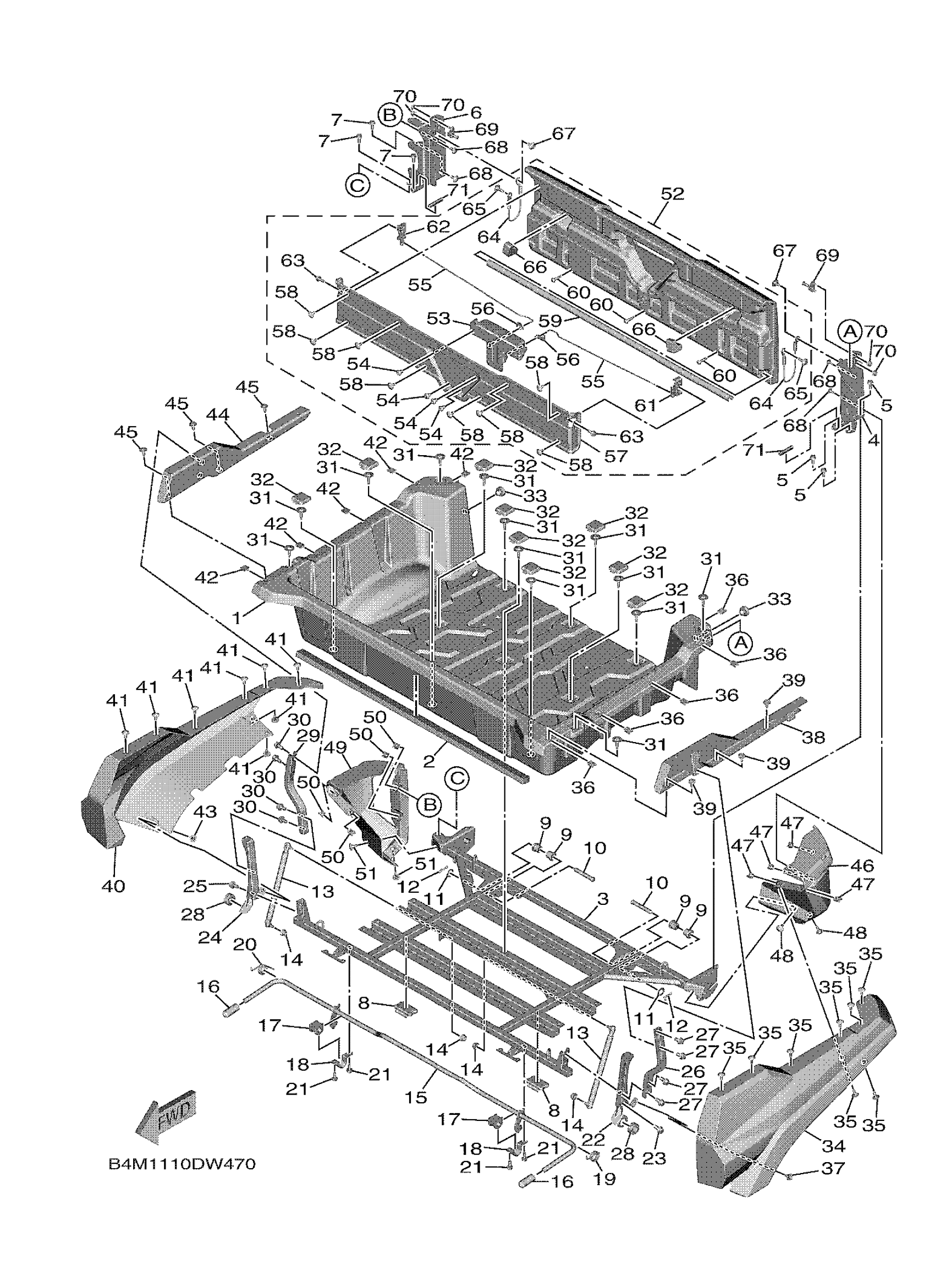

Yamaha YXE10WRZNB (WOLVERINE RMAX2 EPS XTR) B4MC 2022 CARRIER Diagram
#
1
BOX
B8K-F1171-00-00
Unavailable
2
INSULATOR 3
B8K-F172S-00-00
$9.49
3
BOX, BASE
B8K-F845C-10-00
Unavailable
4
STAY, FRONT GUARD
B8K-F8413-11-00
$79.99
5
BOLT, FLANGE
95817-06016-00
$2.75
6
STAY, FRONT GUARD 2
B8K-F8414-10-00
$57.99
7
BOLT, FLANGE
95817-06016-00
$2.75
8
DAMPER
B42-F113B-00-00
$3.76
9
BUSH 1
JW6-F2123-00-00
Unavailable
10
PIN, TAPER
1XD-F7827-00-00
Unavailable
11
WASHER PLATE 611441260000
90201-14212-00
$8.49
12
CLIP(3YF)
90468-16191-00
$8.49
13
DAMPER 1
B8K-F8415-10-00
$33.99
14
NUT, SELF-LOCKING
95602-08200-00
$3.20
15
LATCH ASSY
B8K-K7180-00-00
$37.99
16
CAP, PROTECTOR END
B8K-K818M-00-00
Unavailable
17
GROMMET
90480-01819-00
Unavailable
18
BRKT., TRUNCK 1
B8K-F84AS-00-00
Unavailable
19
SPRING
B8K-F8489-00-00
Unavailable
20
SPRING 2
B8K-F848A-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
BRACKET 3
B8K-F8476-10-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
BRACKET 5
B8K-F8486-10-00
Unavailable
25
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
26
BRACKET 3
B4M-F8476-00-00
Unavailable
27
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
28
GROMMET
90480-25801-00
Unavailable
29
BRACKET 3
B4M-F8476-00-00
Unavailable
30
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
31
BOLT
90109-068A5-00
Unavailable
32
CAP
2MB-F143A-00-00
Unavailable
33
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
34
PANEL, REAR FENDER
B4M-K8193-01-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
36
NUT, SPRING
90183-062A1-00
Unavailable
37
BOLT
90109-06334-00
Unavailable
38
SUPT, 1
B4M-F845S-03-00
Unavailable
39
BOLT, WITH WASHER
90119-06226-00
Unavailable
40
PANEL, REAR FENDER
B4M-K8194-01-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
42
NUT, SPRING
90183-062A1-00
Unavailable
43
BOLT
90109-06334-00
Unavailable
44
SUPT. ,2
B4M-F845T-03-00
Unavailable
45
BOLT, WITH WASHER
90119-06226-00
Unavailable
46
COVER, TAILLIGHT
B4M-H4516-00-00
Unavailable
47
NUT, SPRING
90183-062A1-00
Unavailable
48
BOLT
90109-06334-00
Unavailable
49
COVER, TAILLIGHT
B4M-H4716-00-00
Unavailable
50
NUT, SPRING
90183-062A1-00
Unavailable
51
BOLT
90109-06334-00
Unavailable
52
REAR STORAGE LID C
BAN-K810N-10-00
Unavailable
53
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
54
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
55
ROD
B8K-F8478-00-00
Unavailable
56
CLIP, CABLE
BG4-F2805-01-00
Unavailable
57
COVER
B8K-F331G-00-00
Unavailable
58
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
59
HINGE 2
B8K-F463F-02-00
Unavailable
60
. SCREW
90149-06846-00
Unavailable
61
LOCK ASSY
BG4-F16A0-00-00
Unavailable
62
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
63
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
64
HOLDER, CABLE
B8K-K7195-00-00
Unavailable
65
BOLT
90109-06171-00
Unavailable
66
DAMPER 2
BG4-F8416-10-00
Unavailable
67
BOLT
90109-06212-00
Unavailable
68
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
69
BOLT, STUD
BG4-F4441-00-00
Unavailable
70
NUT, U FLANGE
95604-06200-00
Unavailable
71
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
