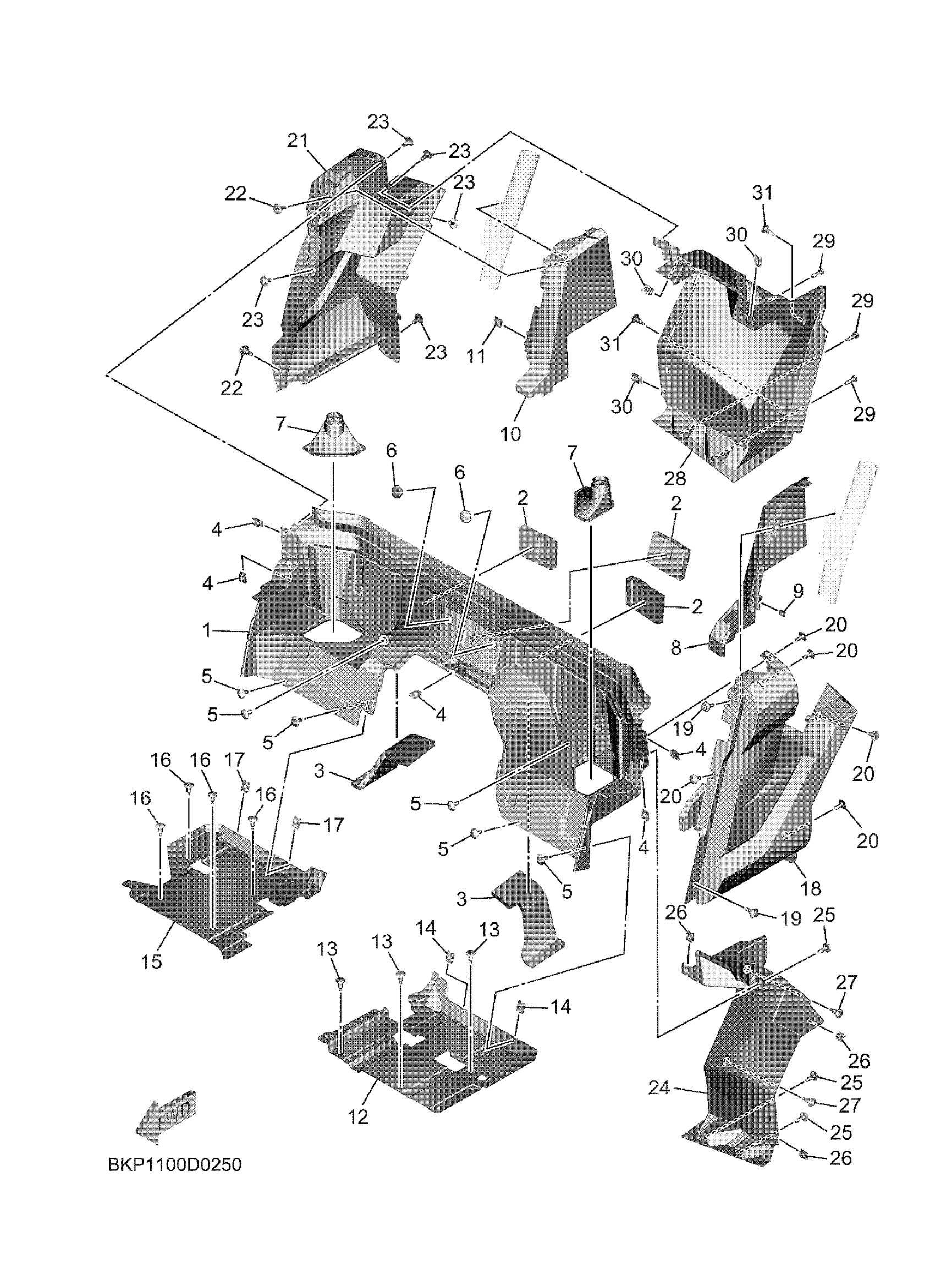

Yamaha YXE10WRLTL (WOLVERINE RMAX2 1000 LE) BKPD 2026 SIDE COVER 2 Diagram

#

Description
Price

1

COVER,REAR PURPBLU

B8K-F2866-01-00

$62.99

2

INSULATOR, SIDE CO

B8K-F174A-00-00

$3.02

3

INSULATOR, SIDE CO

B8K-F174T-00-00

$7.49

4

NUT, SPRING

90183-062A1-00

$1.96

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

PLUG

90338-18266-00

$7.49

7

PLATE, RUBBER 5

B8K-F845J-01-00

$40.99

8

COVER, SIDE 1

B4M-F2864-00-00

$13.99

9

NUT, SPRING

90183-062A1-00

$1.96

10

COVER, SIDE 2

B4M-F2868-00-00

$9.49

11

NUT, SPRING

90183-062A1-00

$1.96

12

PLATE

B8K-F84A3-01-00

$29.99

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

NUT, SPRING

90183-062A1-00

$1.96

15

PLATE, UNDER 2

B8K-F84A4-00-00

$28.99

16

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

17

NUT, SPRING

90183-062A1-00

$1.96

18

SIDE COVER COMP. 1

B4M-F17E0-90-00

Unavailable

19

BOLT

90109-06840-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

21

SIDE COVER COMP. 2

B4M-F17F0-90-00

Unavailable

22

BOLT

90109-06840-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

24

MUD GUARD 1

B8K-F2327-00-00

Unavailable

25

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

26

NUT, SPRING

90183-062A1-00

$1.96

27

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

28

MUD GUARD 2

B8K-F2328-00-00

Unavailable

29

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

30

NUT, SPRING

90183-062A1-00

$1.96

31

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable
