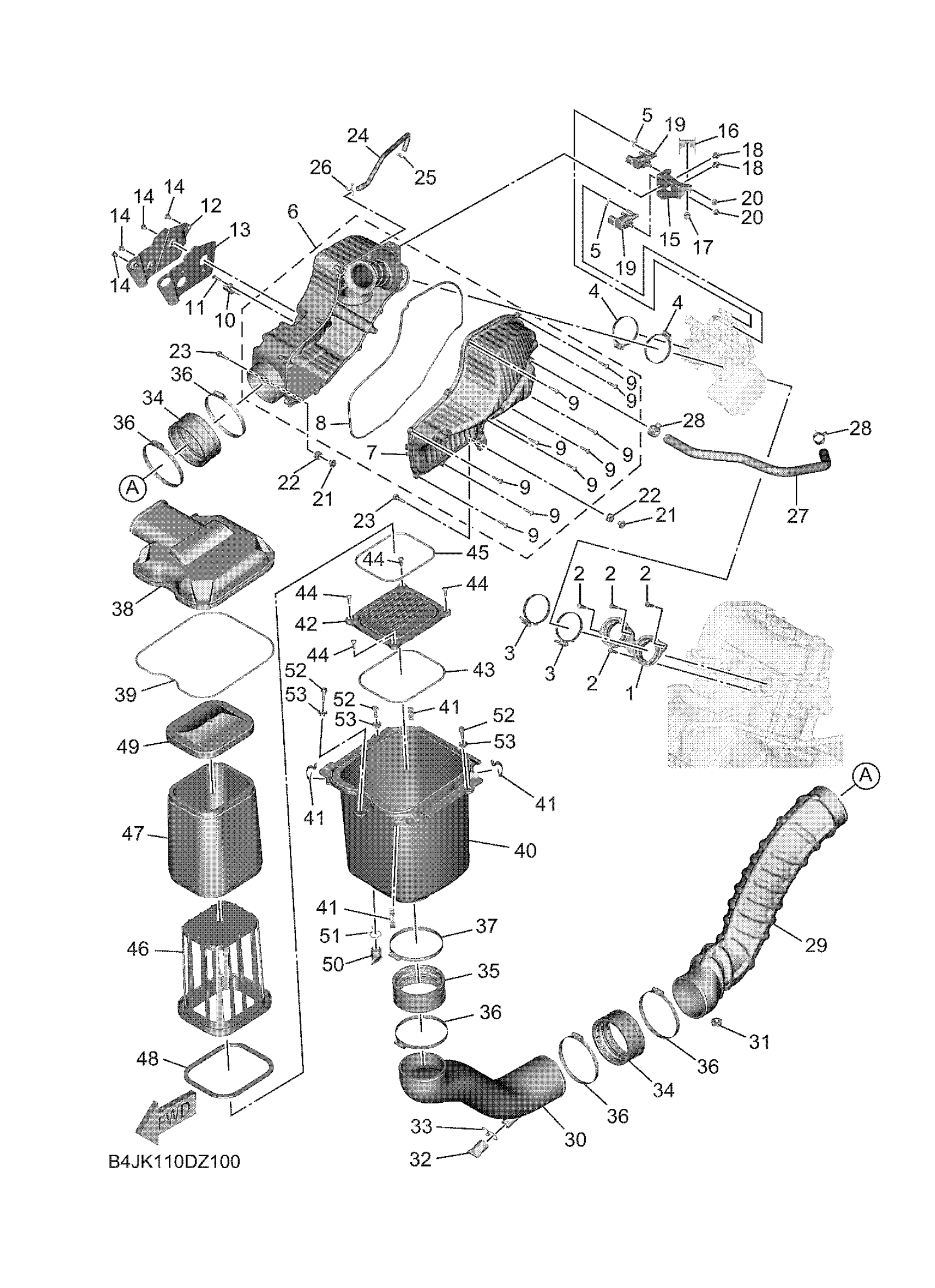

Yamaha YXE10WRLTL (WOLVERINE RMAX2 1000 LE) BKPD 2026 INTAKE Diagram
#
1
JOINT, CARBURETOR
B1R-E3586-00-00
$40.99
2
BOLT,SOCKET HEAD
91314-06020-00
$1.49
3
HOSE CLAMP ASSY
90450-64005-00
Unavailable
4
HOSE CLAMP ASSY
90450-63007-00
Unavailable
5
CLIP
90467-100A1-00
$7.49
6
SILENCER ASSY, INTAKE
B4J-E4440-01-00
Unavailable
7
SILENCER, INTAKE 1
B4J-E4431-00-00
$40.99
8
SEAL
B4J-E4467-00-00
$4.88
9
SCREW, TRUSS TAP.
97707-50025-00
$8.49
10
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
$60.99
11
SCREW, PANHEAD TAPPING
97702-50520-00
$0.43
12
PLATE
B4J-E4477-01-00
$12.49
13
DAMPER
B4J-E4409-00-00
$7.49
14
SCREW, BIND(2TV)
98980-06008-00
$3.19
15
STAY 1
B4J-E4493-10-00
Unavailable
16
BRACKET
B4J-F1159-00-00
Unavailable
17
BOLT, FLANGE
95812-06010-00
Unavailable
18
BOLT, FLANGE
95812-06008-00
Unavailable
19
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
20
NUT, FLANGE
95702-06500-00
Unavailable
21
COLLAR
90387-06199-00
Unavailable
22
GROMMET(4FM)
90480-12596-00
Unavailable
23
BOLT, FLANGE
95822-06025-00
Unavailable
24
PIPE, BREATHER 1
B4J-11166-00-00
Unavailable
25
CLIP
90467-100A1-00
$7.49
26
CLIP (4X4)
90467-12052-00
Unavailable
27
PIPE, OIL TANK BRE
B4J-F1745-00-00
Unavailable
28
CLIP(34X)
90467-22097-00
Unavailable
29
DUCT
BG4-E4437-01-00
Unavailable
30
DUCT
BG4-E443A-03-00
Unavailable
31
GROMMET(4FU)
90480-13567-00
Unavailable
32
SEAL
59V-14457-00-00
Unavailable
33
CLIP
90467-220A0-00
Unavailable
34
SEAL
BG4-E4476-10-00
Unavailable
35
SEAL
B4J-14239-00-00
Unavailable
36
HOSE CLAMP ASSY
90450-99806-00
Unavailable
37
HOSE CLAMP ASSY
90450-99018-00
Unavailable
38
CAP, CLEANER CASE
B4J-E4412-00-00
Unavailable
39
SEAL
BG4-E4452-00-00
Unavailable
40
CASE, AIR CLEANER 1
B4J-E4411-10-00
Unavailable
41
CLIP, CAP FITTING
B16-E4424-00-00
Unavailable
42
ELEMENT, AIR CLEAN
B4J-E4461-00-00
Unavailable
43
SEAL
B4J-E4462-00-00
Unavailable
44
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
45
SEAL
B4J-E4457-00-00
Unavailable
46
GUIDE
B4J-E4458-00-00
Unavailable
47
ELEMENT, AIR CLEAN
B4J-E4451-00-00
Unavailable
48
DAMPER 1
B4J-E4425-00-00
Unavailable
49
CAP, CLEANER CASE
B4J-E4422-00-00
Unavailable
50
PIPE, DRAIN
B16-E443E-00-00
Unavailable
51
CLIP
90467-220A1-00
Unavailable
52
BOLT, FLANGE
90105-06833-00
Unavailable
53
COLLAR (4N0)
90387-071E0-00
Unavailable
