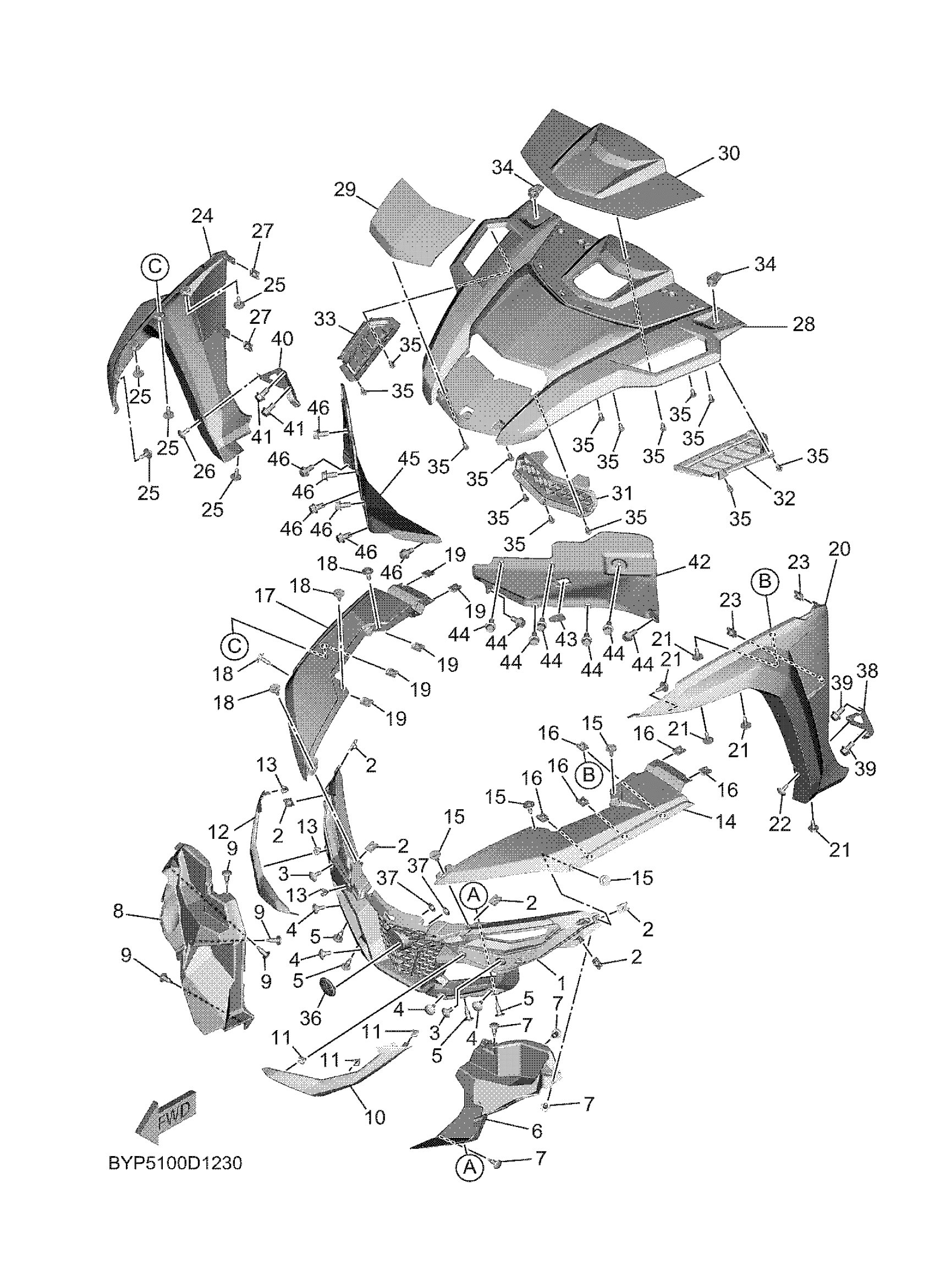

Yamaha YXE10WRLTL (WOLVERINE RMAX2 1000 LE) BKPD 2026 FRONT FENDER 2 Diagram

#

Description
Price

1

GRILLE, FRONT

B4J-F8309-00-00

$108.92

2

NUT, SPRING

90183-062A1-00

$1.75

3

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

4

BOLT

90109-06334-00

$2.33

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

COVER 1

B4J-E246A-02-00

$21.55

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

COVER 2

B4J-E246E-02-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

COVER, UPPER 1

B4J-F3121-70-00

Unavailable

11

CLIP

90468-040A0-00

$5.81

12

COVER, UPPER 2

B4J-F3131-70-00

$63.50

13

CLIP

90468-040A0-00

$5.81

14

PANEL, FRONT FENDE

B4J-K819L-A0-00

Unavailable

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

NUT, SPRING

90183-062A1-00

$1.75

17

PANEL, FRONT FENDE

B4J-K819M-A0-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$2.12

19

NUT, SPRING

90183-062A1-00

$1.75

20

FRONT FENDER COMP.

B4J-F1510-50-00

Unavailable

21

BOLT, WITH WASHER

90119-06226-00

$2.12

22

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

23

NUT, SPRING

90183-062A1-00

$1.75

24

FRONT FENDER COMP.

B4J-F1501-50-00

Unavailable

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

27

NUT, SPRING

90183-062A1-00

$1.75

28

HOOD ASSY 3

B4J-F197A-B0-00

Unavailable

29

HOOD 1

B4J-F835E-00-00

Unavailable

30

HOOD 2

B4J-F835F-01-00

Unavailable

31

GRILLE

B4J-K715N-01-00

Unavailable

32

VENT, FRONT 1

B4J-K715H-00-00

Unavailable

33

VENT, FRONT 2

B4J-K715J-00-00

Unavailable

34

LEVER, LOCK

1XD-2175K-10-00

Unavailable

35

TAPPING SCREW

90169-06802-00

Unavailable

36

EMBLEM, YAMAHA

B4J-F153E-00-00

Unavailable

37

NUT, SPRING

90183-06071-00

$0.50

38

STAY, FENDER 1

BYP-F1513-00-00

Unavailable

39

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

40

STAY, FENDER 2

BYP-F1514-00-00

Unavailable

41

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

42

PROTECTOR 1

BYP-F622K-01-00

Unavailable

43

PLUG, HOLE

BG4-F312G-00-00

Unavailable

44

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

45

PROTECTOR 2

BYP-F622L-01-00

Unavailable

46

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
