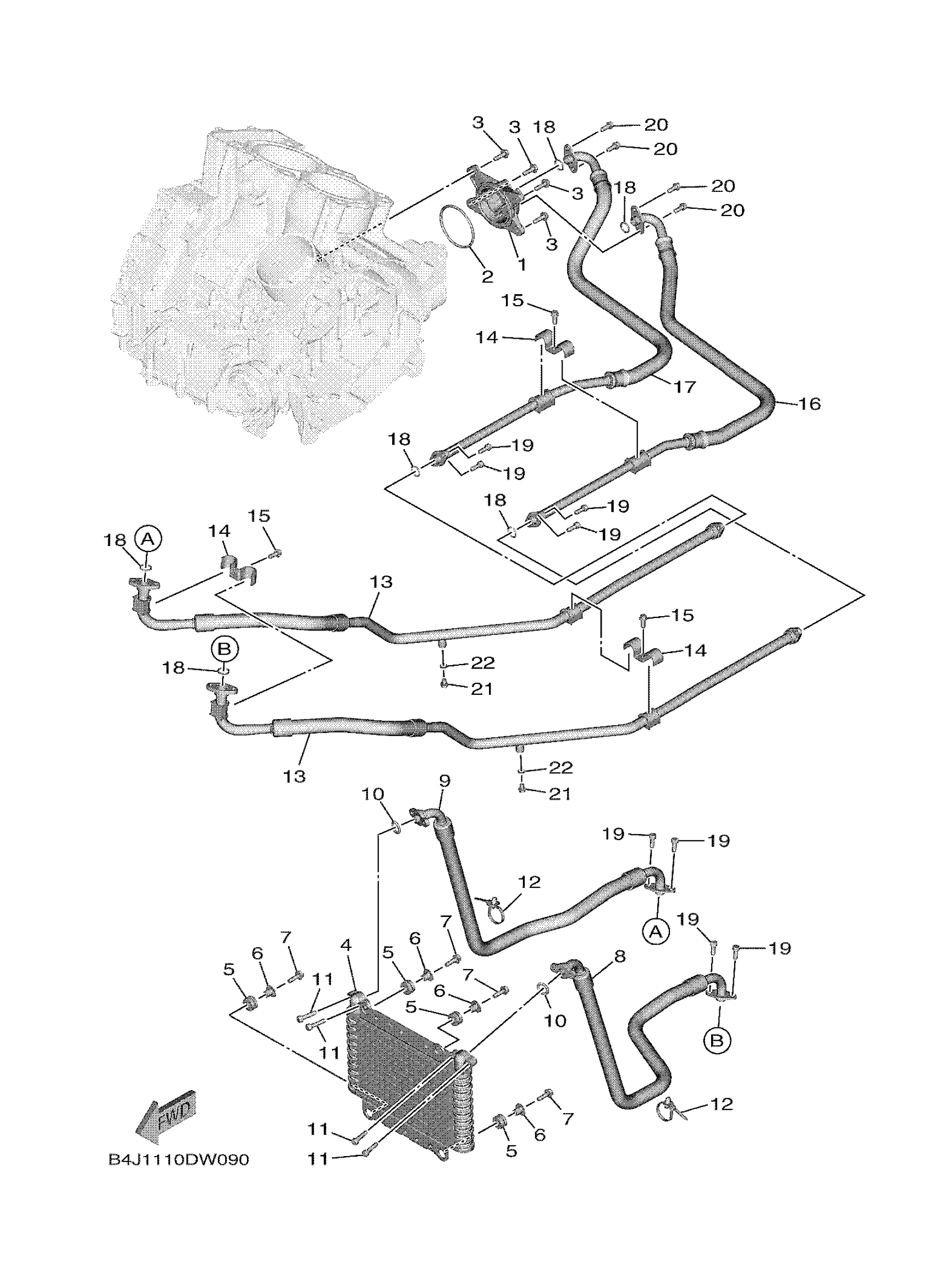

Yamaha YXE10WRLSL (WOLVERINE RMAX2 1000 LE) BKP5 2025 OIL COOLER Diagram

#

Description
Price

1

PLATE, ADAPTOR

B1R-13461-01-00

Unavailable

2

O-RING (583 OIL CLEANER)

93210-64297-00

$6.66

3

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15

4

ELEMENT, OIL COOLER

BKP-13480-00-00

Unavailable

5

GROMMET(2GH)

90480-12475-00

$6.22

6

COLLAR

90387-06161-00

$5.81

7

BOLT, FLANGE

95817-06020-00

$2.52

8

HOSE, OIL 1

B4J-1316F-10-00

$175.35

9

HOSE, OIL 2

B4J-1316G-10-00

$175.33

10

O-RING (26H)

93210-14637-00

$5.47

11

BOLT,SOCKET

91317-06025-00

$1.91

12

CLAMP

1NS-F1338-00-00

$2.80

13

OIL PIPE COMP. 1

B4J-13405-01-00

$260.00

14

STAY

B4J-E3151-00-00

$1.77

15

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

16

HOSE 7

B4J-12551-00-00

Unavailable

17

HOSE 8

B4J-12552-00-00

Unavailable

18

O-RING

93210-16006-00

Unavailable

19

BOLT(3MA)

91312-06016-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

Unavailable

21

BOLT, FLANGE

95022-06008-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable
