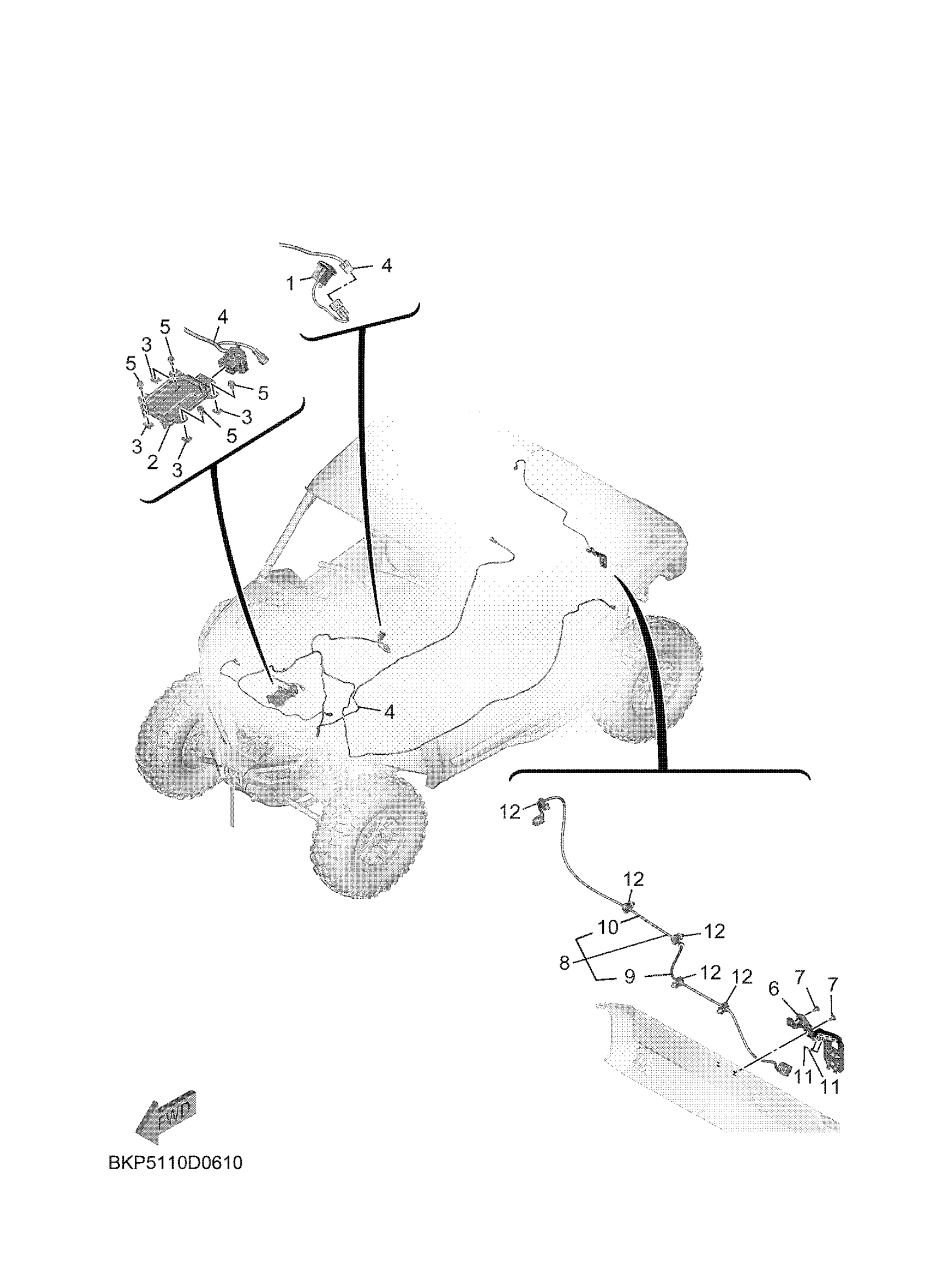

Yamaha YXE10WRLSL (WOLVERINE RMAX2 1000 LE) BKP5 2025 ELECTRICAL 5 Diagram

#

Description
Price

1

SWITCH ASSY

B4J-H1860-01-00

$102.30

2

CONTROL UNIT ASSY

B4J-H1930-00-00

$541.99

3

NUT, SPRING

90183-062A1-00

$1.75

4

WIRE, SUB LEAD

BKP-H8189-00-00

Unavailable

5

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$5.80

6

BRACKET COMPLETE

BKP-H182J-00-00

Unavailable

7

RIVET(81E)

90269-05055-00

$6.54

8

CAMERA UNIT ASSY.

BKP-H62C0-01-00

$165.23

9

CABLE 1

BKP-H8146-00-00

$238.05

10

CABLE 2

BKP-H8147-00-00

$25.39

11

SCREW

90149-02800-00

$0.65

12

CLAMP

90464-12830-00

$0.98
