- YXE10WRLSL (WOLVERINE RMAX2 1000 LE) BKP5 2025
ELECTRICAL 2

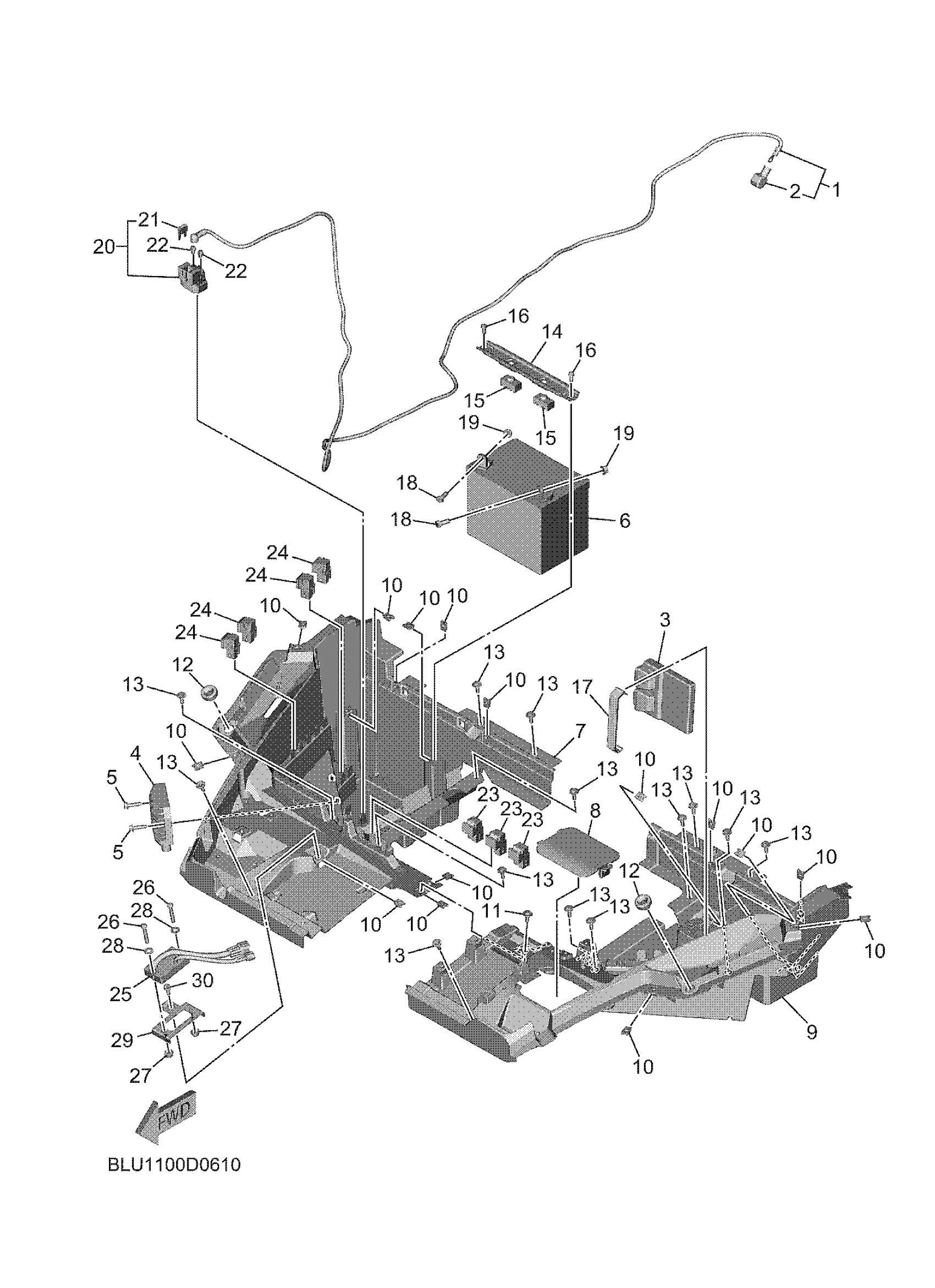

Yamaha YXE10WRLSL (WOLVERINE RMAX2 1000 LE) BKP5 2025 ELECTRICAL 2 Diagram
#
1
CORD, STARTER MOTOR
BKP-81815-00-00
Unavailable
2
CAP
4B5-81871-00-00
Unavailable
3
ENGINE CONTROL UNIT ASSY
BKP-8591A-01-00
Unavailable
4
RECTIFIER & REGULATOR ASSY
BFN-81960-00-00
Unavailable
5
BOLT, FLANGE
90105-06833-00
$2.28
6
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
7
BOX, BATTERY 1
B4J-H212B-01-00
$37.99
8
COVER 1
B4J-H246B-01-00
$3.88
9
PANEL, SWITCH
B4J-H2565-01-00
$62.99
10
NUT, SPRING
90183-062A1-00
$1.96
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
GROMMET
90480-16807-00
$1.11
13
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
14
BRACKET, BATTERY
2HC-H2128-00-00
$10.49
15
PAD, SEAT
3C3-24741-00-00
$9.99
16
BOLT, FLANGE
95022-06014-00
Unavailable
17
BAND, BATTERY
5JJ-82131-00-00
Unavailable
18
BOLT(6TD)
97080-08020-00
Unavailable
19
NUT
90179-08015-00
Unavailable
20
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
21
FUSE (10A)
42X-82151-00-00
Unavailable
22
BOLT, FLANGE
95022-06008-00
Unavailable
23
RELAY ASSY
5DM-81950-01-00
Unavailable
24
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
25
CONTROL UNIT ASSY
BKP-H3677-00-00
Unavailable
26
SCREW, PAN HEAD
98517-04025-00
Unavailable
27
NUT, FLANGE
95707-04500-00
Unavailable
28
WASHER(6E1)
92907-04200-00
Unavailable
29
BRACKET
BKP-H350E-00-00
Unavailable
30
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
