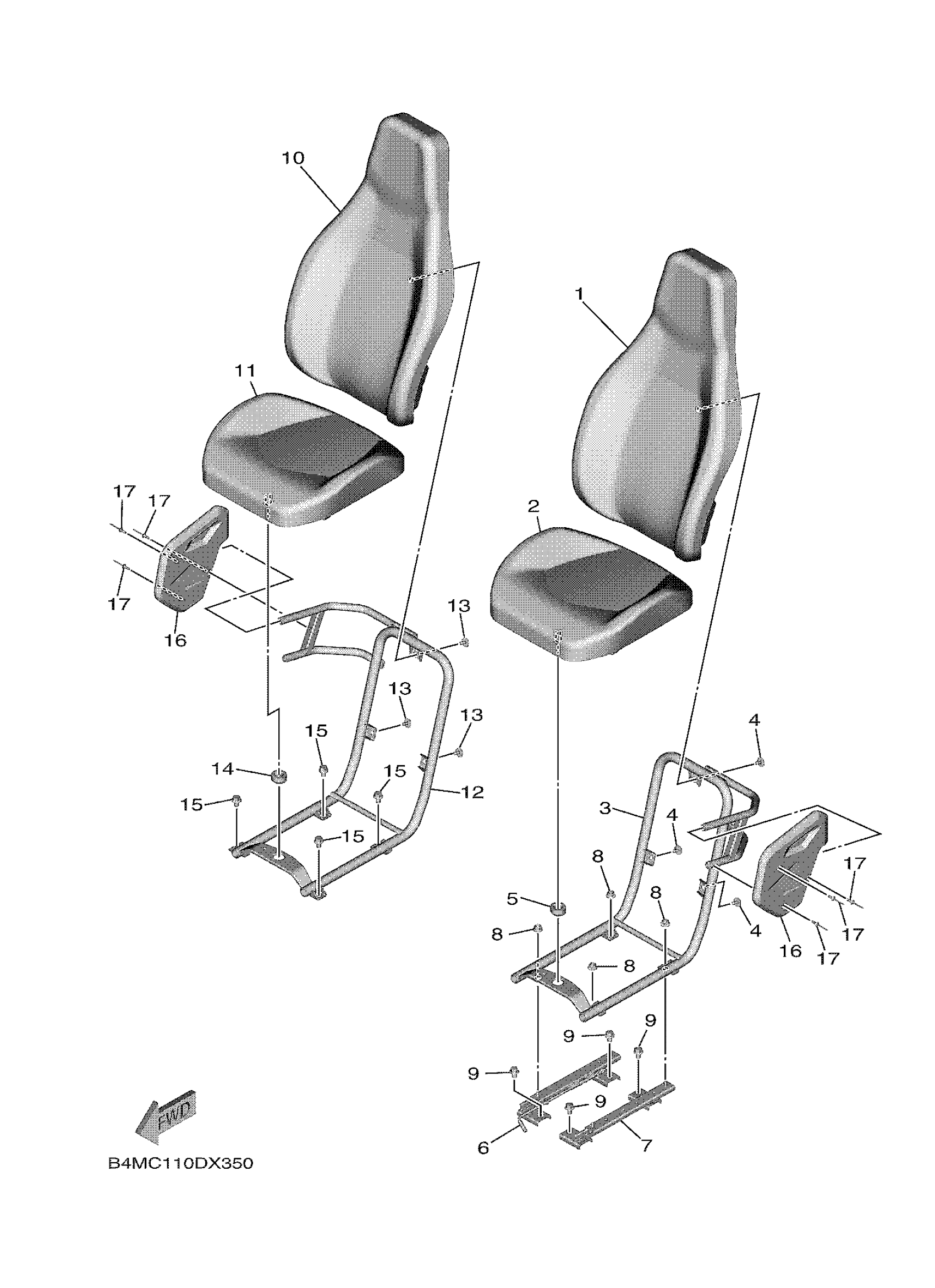

Yamaha YXE10WRLRS (WOLVERINE RMAX2 LE) D265 2024 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

B4J-F4790-70-00

$286.15

2

SEAT ASSY 2

B4J-K8420-70-00

$178.85

3

FRAME, SEAT 1

B4J-F473C-02-00

$126.74

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

5

GROMMET

1XD-F4742-00-00

$2.96

6

ADJUSTER ASSY

B4J-F7270-01-00

$45.32

7

ADJUSTER ASSY

B4J-F7260-01-00

Unavailable

8

NUT, SELF-LOCKING

95602-08200-00

$2.73

9

BOLT, FLANGE

95817-08012-00

$3.71

10

SEAT BACK ASSY

B4J-F4790-70-00

$286.15

11

SEAT ASSY 2

B4J-K8420-70-00

$178.85

12

FRAME, SEAT 2

B4J-F473D-02-00

$135.58

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

14

GROMMET

1XD-F4742-00-00

$2.96

15

BOLT, FLANGE

95817-08012-00

$3.71

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
