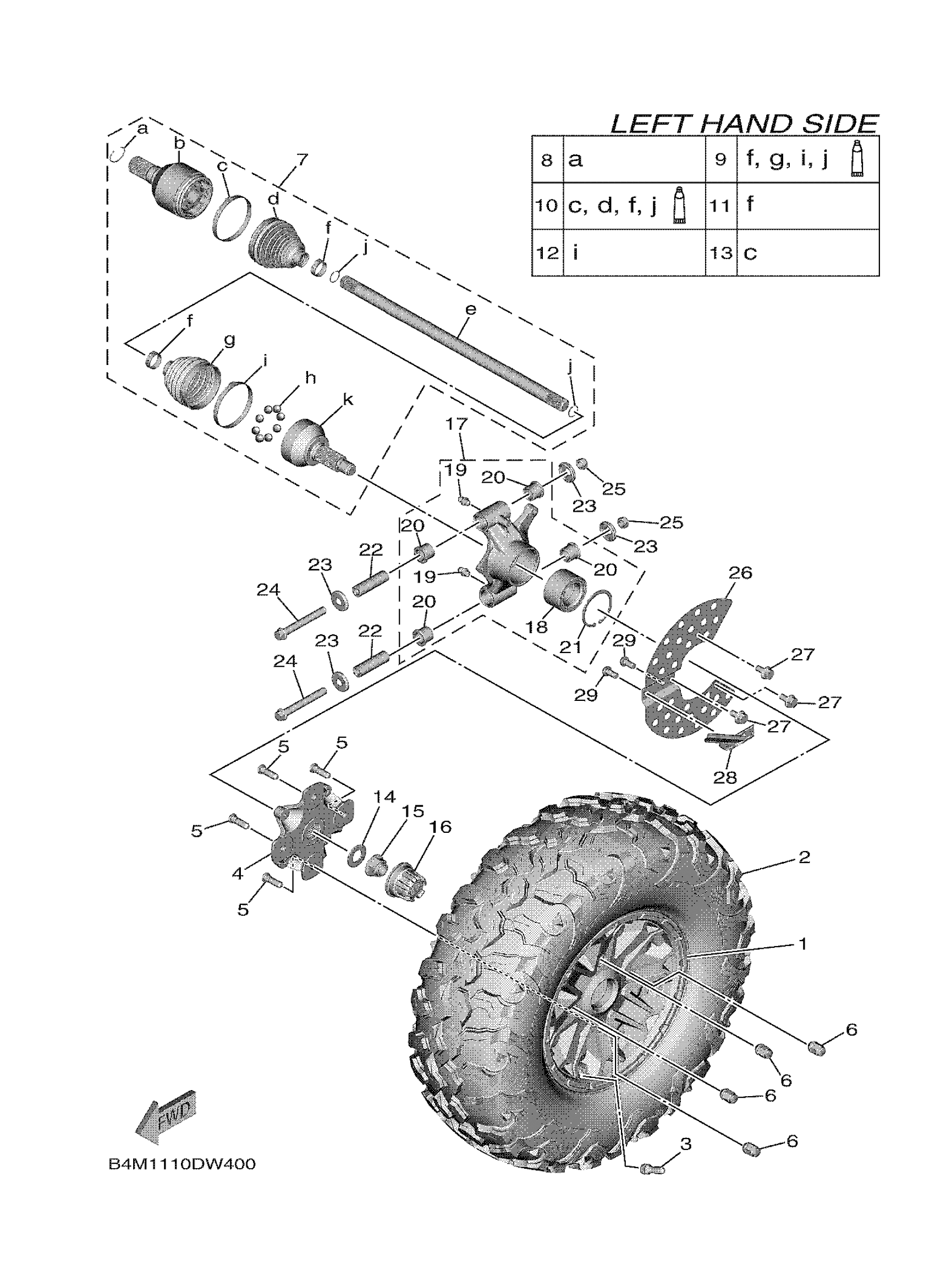

Yamaha YXE10WRLRS (WOLVERINE RMAX2 LE) D265 2024 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, FRONT
B4J-F5168-20-00
$333.99
2
TIRE (30X10.00R14 ML1 8PR TL)
94110-14809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB, FRONT
B4J-F5111-02-00
$131.99
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12801-00
Unavailable
7
REAR DRIVE SHAFT ASSY
B4M-F531H-03-00
Unavailable
8
CLIP, SPRING
B4J-F536E-00-00
Unavailable
9
BOOT SET (BALL JOI
B4J-F530X-00-00
$88.99
10
BOOT SET(DOUBLE OF
B4J-F530Y-00-00
$169.99
11
BAND
B4J-F5719-00-00
$10.49
12
BAND
B4J-F639A-00-00
$5.60
13
BAND
B4J-F6293-00-00
$5.60
14
WASHER, PLATE
90201-25023-00
$10.49
15
NUT
90179-24006-00
$13.99
16
CAP, WHEEL
2HC-F512A-00-00
Unavailable
17
REAR KNUCKLE ASSY
B4J-F530F-00-00
Unavailable
18
BEARING
93305-00801-00
Unavailable
19
NIPPLE, GREASE
93700-06M03-00
Unavailable
20
BUSH, SOLID
90381-22001-00
Unavailable
21
CIRCLIP (70R)
93420-72065-00
Unavailable
22
COLLAR
90387-14025-00
Unavailable
23
COVER, THRUST 1
BYP-23517-00-00
Unavailable
24
BOLT, FLANGE
90105-14017-00
Unavailable
25
NUT, SELF-LOCKING
90185-14010-00
Unavailable
26
RING, WHEEL RR. 1
2HC-F534C-00-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
PLATE, GUIDE 1
2HC-F2341-00-00
Unavailable
29
BOLT, FLANGE
95817-06012-00
Unavailable
