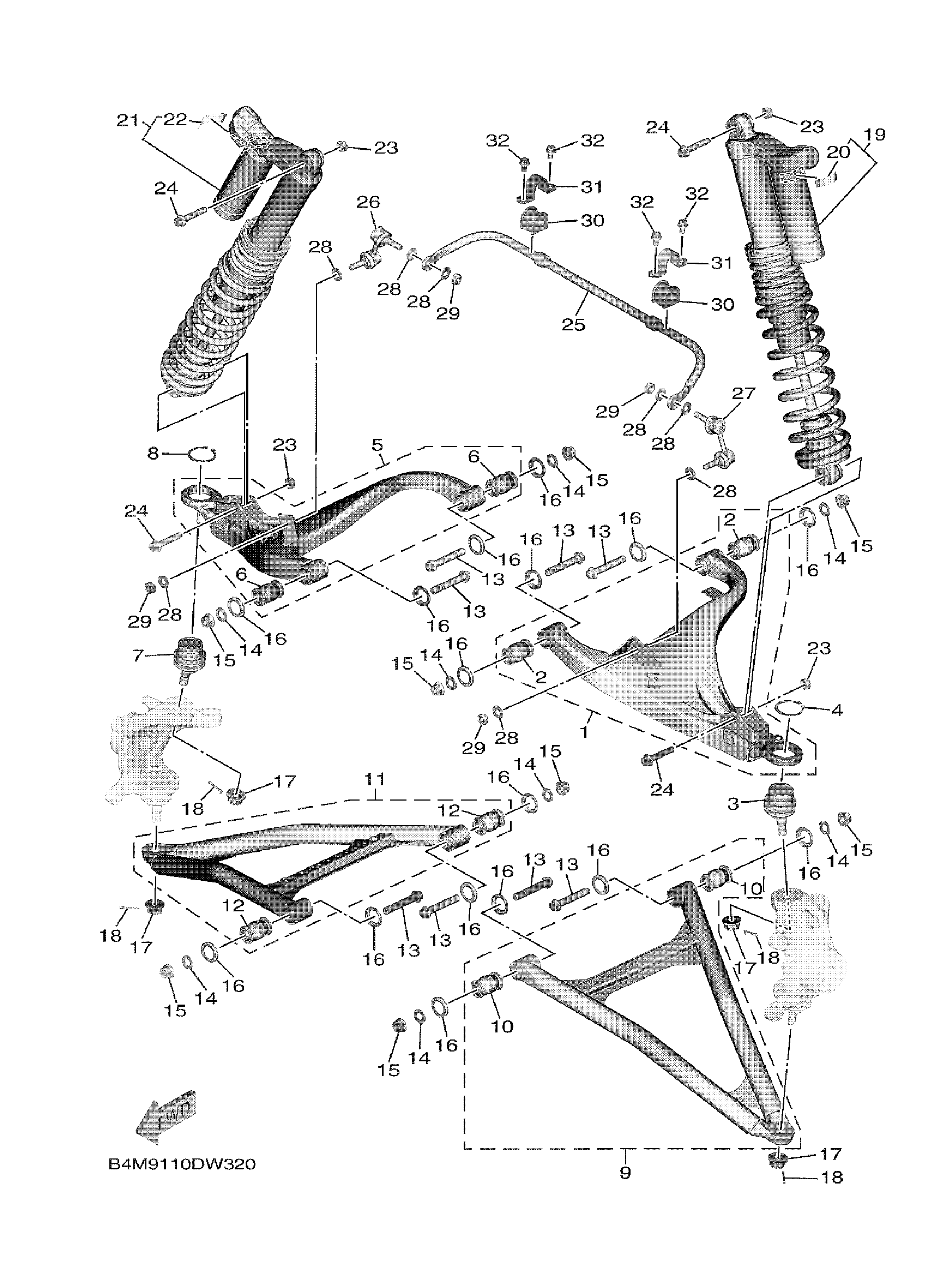

Yamaha YXE10WRLRS (WOLVERINE RMAX2 LE) D265 2024 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

B4J-F3540-02-00

Unavailable

2

BUSH

B4J-F3526-01-00

Unavailable

3

BALL JOINT 2

2HC-23579-00-00

$96.99

4

CIRCLIP

93410-42096-00

$2.55

5

FRONT UPPER ARM CO

B4J-F3550-02-00

$198.99

6

BUSH

B4J-F3526-01-00

Unavailable

7

BALL JOINT 2

2HC-23579-00-00

$96.99

8

CIRCLIP

93410-42096-00

$2.55

9

FRONT LOWER ARM CO

B4J-F3570-01-00

Unavailable

10

BUSH

B4J-F3526-01-00

Unavailable

11

FRONT LOWER ARM CO

B4J-F3580-01-00

Unavailable

12

BUSH

B4J-F3526-01-00

Unavailable

13

BOLT, FLANGE

90105-12095-00

$9.49

14

WASHER, PLATE

90201-12045-00

$5.60

15

NUT, SELF-LOCKING

90185-12002-00

$12.49

16

COVER, THRUST 1

B4J-F3517-00-00

Unavailable

17

NUT, CASTLE

90171-14005-00

Unavailable

18

PIN, COTTER

91401-30025-00

Unavailable

19

FRONT SUSPENSION A

B4M-F3750-02-00

Unavailable

20

LABEL, WARNING

B4M-F2259-00-00

Unavailable

21

FRONT SUSPENSION A

B4M-F3740-02-00

Unavailable

22

LABEL, WARNING

B4M-F2259-00-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable

24

BOLT, FLANGE

90105-10199-00

Unavailable

25

BAR, STABILIZER FR

B4J-F386E-00-00

Unavailable

26

JOINT, STABILIZER 1

16B-2385L-10-00

Unavailable

27

JOINT, STABILIZER 2

16B-2385M-10-00

Unavailable

28

WASHER, PLATE

90201-10035-00

Unavailable

29

NUT, SELF-LOCKING

90185-10012-00

Unavailable

30

BUSH

B4J-F376B-00-00

Unavailable

31

BRKT., STABILIZER

BG4-F386B-00-00

Unavailable

32

BOLT, FLANGE

95817-08014-00

Unavailable
