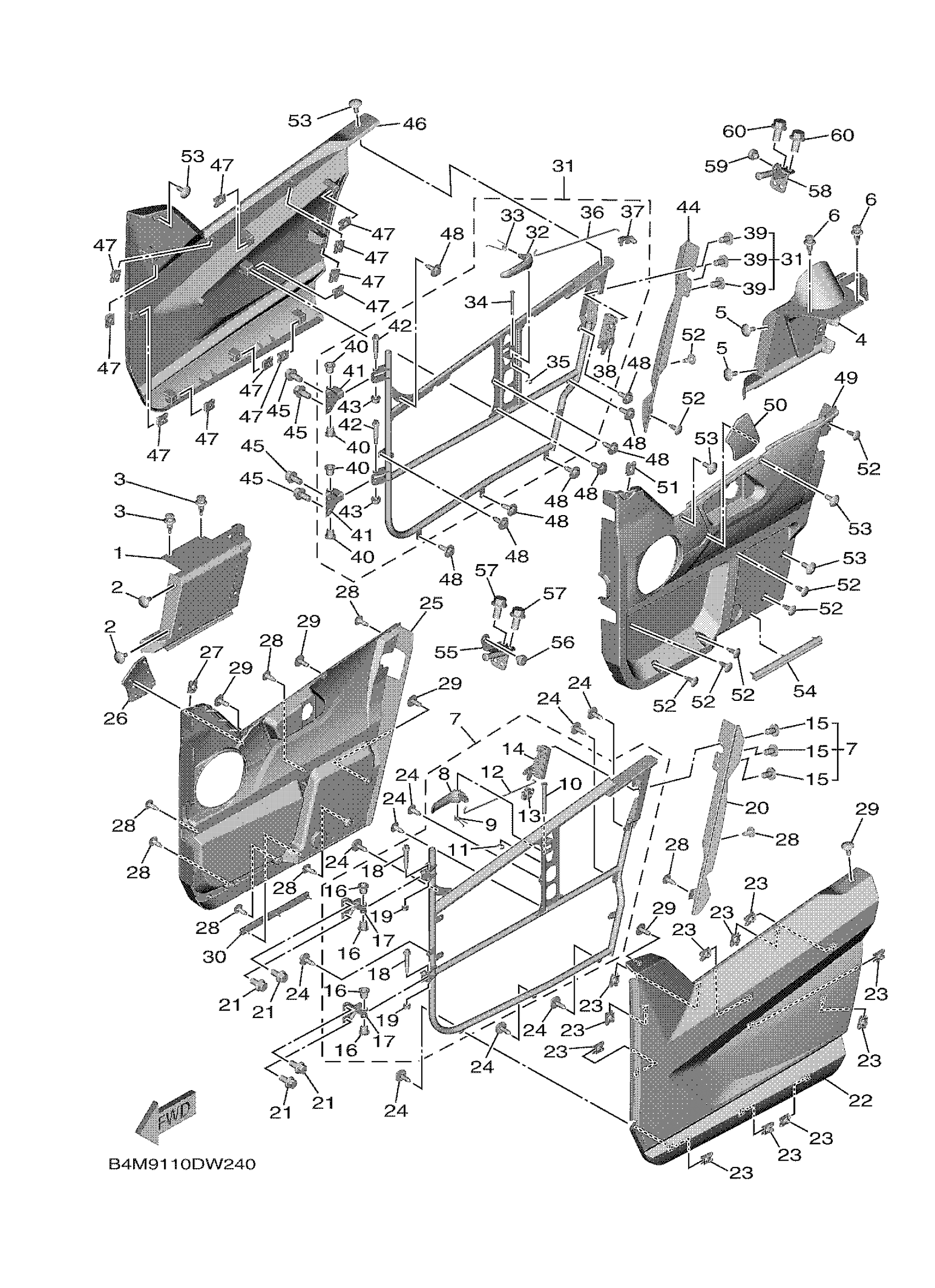

Yamaha YXE10WRLPD (WOLVERINE RMAX2 LE) B4MP 2023 SIDE COVER Diagram
#
1
COVER, SIDE 2
B4J-F1721-01-00
$109.99
2
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
COVER, SIDE 3
B4J-F1731-00-00
$21.99
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
FF. DOOR COMP. LH
B4J-K8504-01-00
$220.99
8
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
9
SPRING
2HC-F1742-00-00
$2.96
10
. PIN
90249-05801-00
Unavailable
11
CIRCLIP (EU0)
99080-04600-00
Unavailable
12
ROD 1
B4J-F7247-00-00
$3.76
13
CLIP, CABLE
BG4-F2805-01-00
$2.17
14
LOCK ASSY
B4J-F16A0-02-00
$53.99
15
SCREW
90149-08805-00
$1.01
16
BUSH, SOLID
90381-08001-00
Unavailable
17
HINGE
B4J-F1796-01-00
Unavailable
18
BOLT
90109-068C9-00
Unavailable
19
NUT, U FLANGE
95604-06200-00
Unavailable
20
PLATE 1
B4J-F191B-00-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
SIDE COVER COMP. 1
B4J-F17E0-50-00
Unavailable
23
NUT, SPRING
90183-062A1-00
Unavailable
24
BOLT, WITH WASHER
90119-06226-00
Unavailable
25
PNL., DOOR FR. LH
B4J-K8557-00-00
Unavailable
26
PROTECTOR 1
B4J-K811V-01-00
Unavailable
27
NUT, SPRING
90183-062A1-00
Unavailable
28
RIVET(8AB)
90269-05073-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
30
SEAL 2
B4J-F1735-00-00
Unavailable
31
FF. DOOR COMP. RH
B4J-K8505-01-00
Unavailable
32
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
33
SPRING
2HC-F1742-00-00
$2.96
34
. PIN
90249-05801-00
Unavailable
35
CIRCLIP (EU0)
99080-04600-00
Unavailable
36
ROD 2
B4J-F7248-00-00
Unavailable
37
CLIP, CABLE
BG4-F2805-01-00
$2.17
38
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
39
SCREW
90149-08805-00
$1.01
40
BUSH, SOLID
90381-08001-00
Unavailable
41
HINGE
B4J-F1796-01-00
Unavailable
42
BOLT
90109-068C9-00
Unavailable
43
NUT, U FLANGE
95604-06200-00
Unavailable
44
PLATE 2
B4J-F191C-00-00
Unavailable
45
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
46
SIDE COVER COMP. 2
B4J-F17F0-50-00
Unavailable
47
NUT, SPRING
90183-062A1-00
Unavailable
48
BOLT, WITH WASHER
90119-06226-00
Unavailable
49
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
50
PROTECTOR 1
B4J-K811V-01-00
Unavailable
51
NUT, SPRING
90183-062A1-00
Unavailable
52
RIVET(8AB)
90269-05073-00
Unavailable
53
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
54
SEAL 2
B4J-F1735-00-00
Unavailable
55
HOOK, SIDE COVER 1
B4J-F1331-01-00
Unavailable
56
PLUG
90338-10801-00
Unavailable
57
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
58
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
59
PLUG
90338-10801-00
Unavailable
60
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
