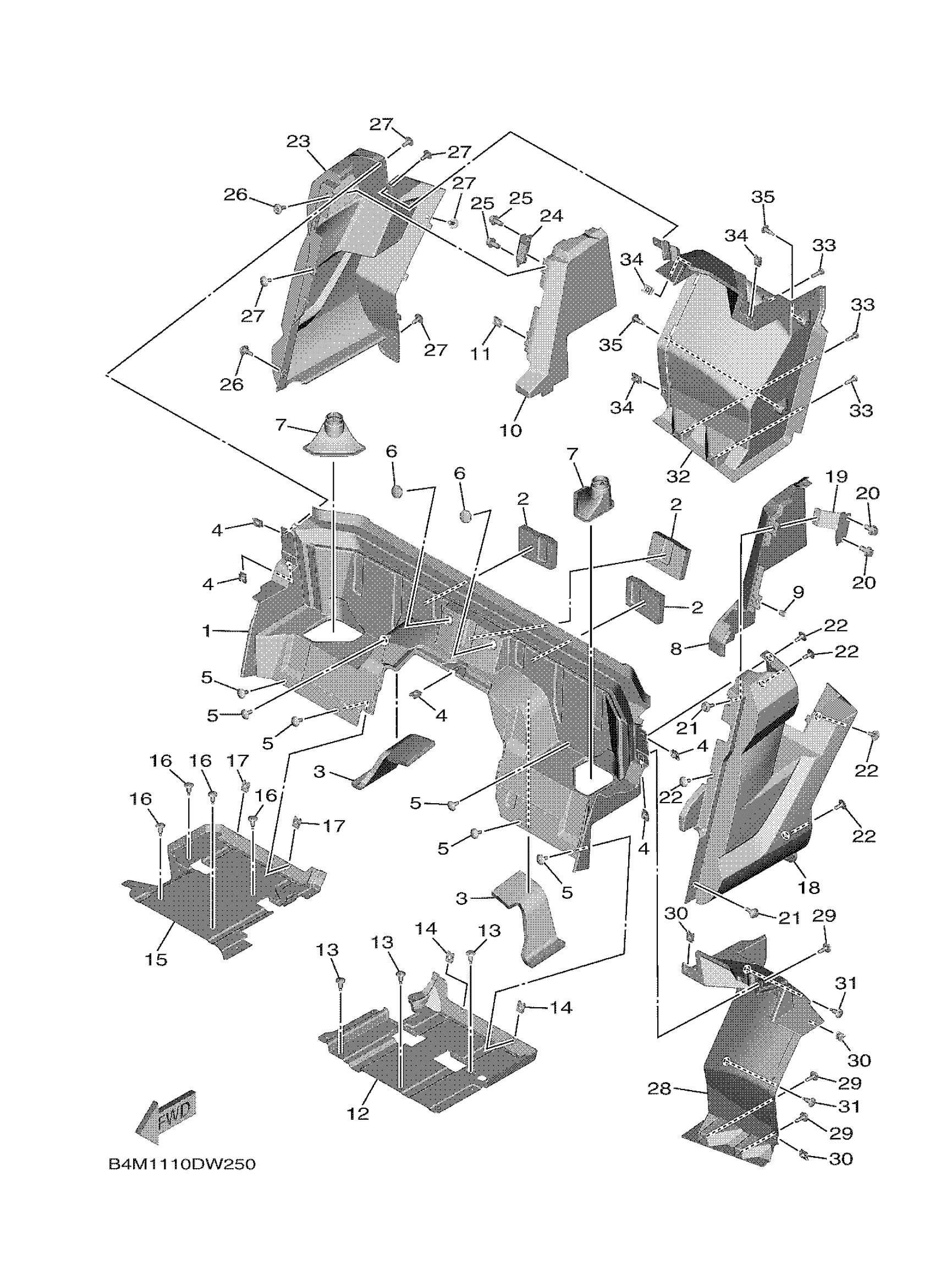

Yamaha YXE10WRLNS (WOLVERINE RMAX 2 EPS LE) B4MG 2022 SIDE COVER 2 Diagram

#

Description
Price

1

COVER,REAR PURPBLU

B8K-F2866-01-00

$60.02

2

INSULATOR, SIDE CO

B8K-F174A-00-00

$2.53

3

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

4

NUT, SPRING

90183-062A1-00

$1.75

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

PLUG

90338-18266-00

$6.52

7

PLATE, RUBBER 5

B8K-F845J-01-00

$33.68

8

COVER, SIDE 1

B4M-F2864-00-00

$10.68

9

NUT, SPRING

90183-062A1-00

$1.75

10

COVER, SIDE 2

B4M-F2868-00-00

$10.74

11

NUT, SPRING

90183-062A1-00

$1.75

12

PLATE

B8K-F84A3-01-00

$18.59

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

14

NUT, SPRING

90183-062A1-00

$1.75

15

PLATE, UNDER 2

B8K-F84A4-00-00

$6.40

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

NUT, SPRING

90183-062A1-00

$1.75

18

SIDE COVER COMP. 1

B4M-F17E0-20-00

Unavailable

19

BRACKET, SIDE PANE

B4M-F253J-00-00

Unavailable

20

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

21

BOLT

90109-06840-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

23

SIDE COVER COMP. 2

B4M-F17F0-20-00

Unavailable

24

BRACKET, SIDE PANE

B4M-F253K-00-00

Unavailable

25

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

26

BOLT

90109-06840-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

28

MUD GUARD 1

B8K-F2327-00-00

Unavailable

29

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

30

NUT, SPRING

90183-062A1-00

$1.75

31

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

32

MUD GUARD 2

B8K-F2328-00-00

Unavailable

33

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

34

NUT, SPRING

90183-062A1-00

$1.75

35

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
