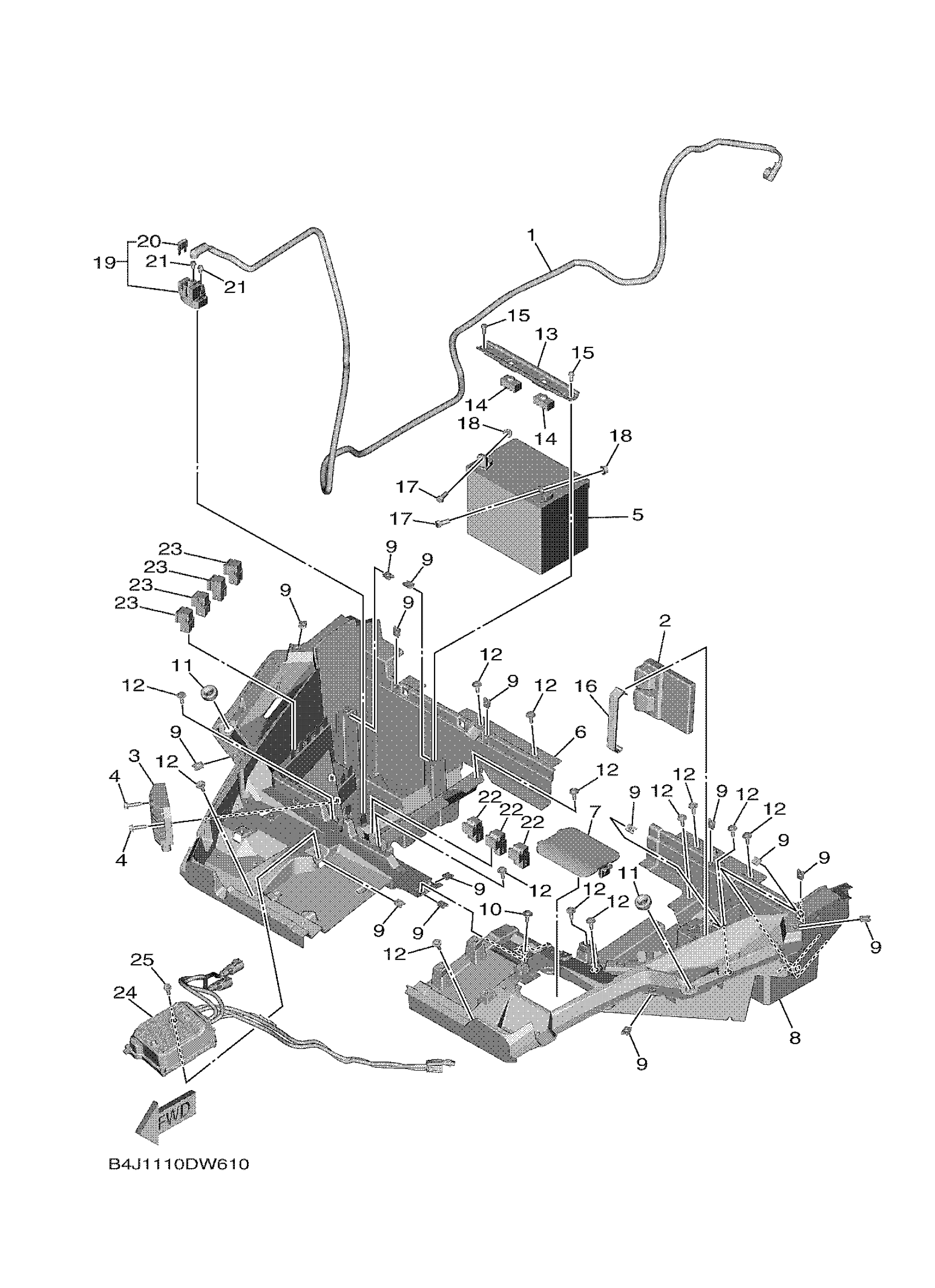

Yamaha YXE10WRLNS (WOLVERINE RMAX 2 EPS LE) B4MG 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

CORD, STARTER MOTOR

B1R-81815-00-00

Unavailable

2

ENGINE CONTROL UNIT ASSY

B4J-8591A-01-00

$887.99

3

RECTIFIER & REGULATOR ASSY

B5H-81960-00-00

Unavailable

4

BOLT, FLANGE

90105-06833-00

$2.28

5

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

6

BOX, BATTERY 1

B4J-H212B-01-00

$37.99

7

COVER 1

B4J-H246B-01-00

$3.88

8

PANEL, SWITCH

B4J-H2565-01-00

$62.99

9

NUT, SPRING

90183-062A1-00

$1.96

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

GROMMET

90480-16807-00

$1.11

12

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

13

BRACKET, BATTERY

2HC-H2128-00-00

$10.49

14

PAD, SEAT

3C3-24741-00-00

$9.99

15

BOLT, FLANGE

95022-06014-00

$3.14

16

BAND, BATTERY

5JJ-82131-00-00

Unavailable

17

BOLT(6TD)

97080-08020-00

Unavailable

18

NUT

90179-08015-00

Unavailable

19

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

20

FUSE (10A)

42X-82151-00-00

Unavailable

21

BOLT, FLANGE

95022-06008-00

Unavailable

22

RELAY ASSY

5DM-81950-01-00

Unavailable

23

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

24

POWER STRG. CONT. UNIT ASSY

B4J-859A0-00-00

Unavailable

25

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable
