- YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026
SIDE COVER 2

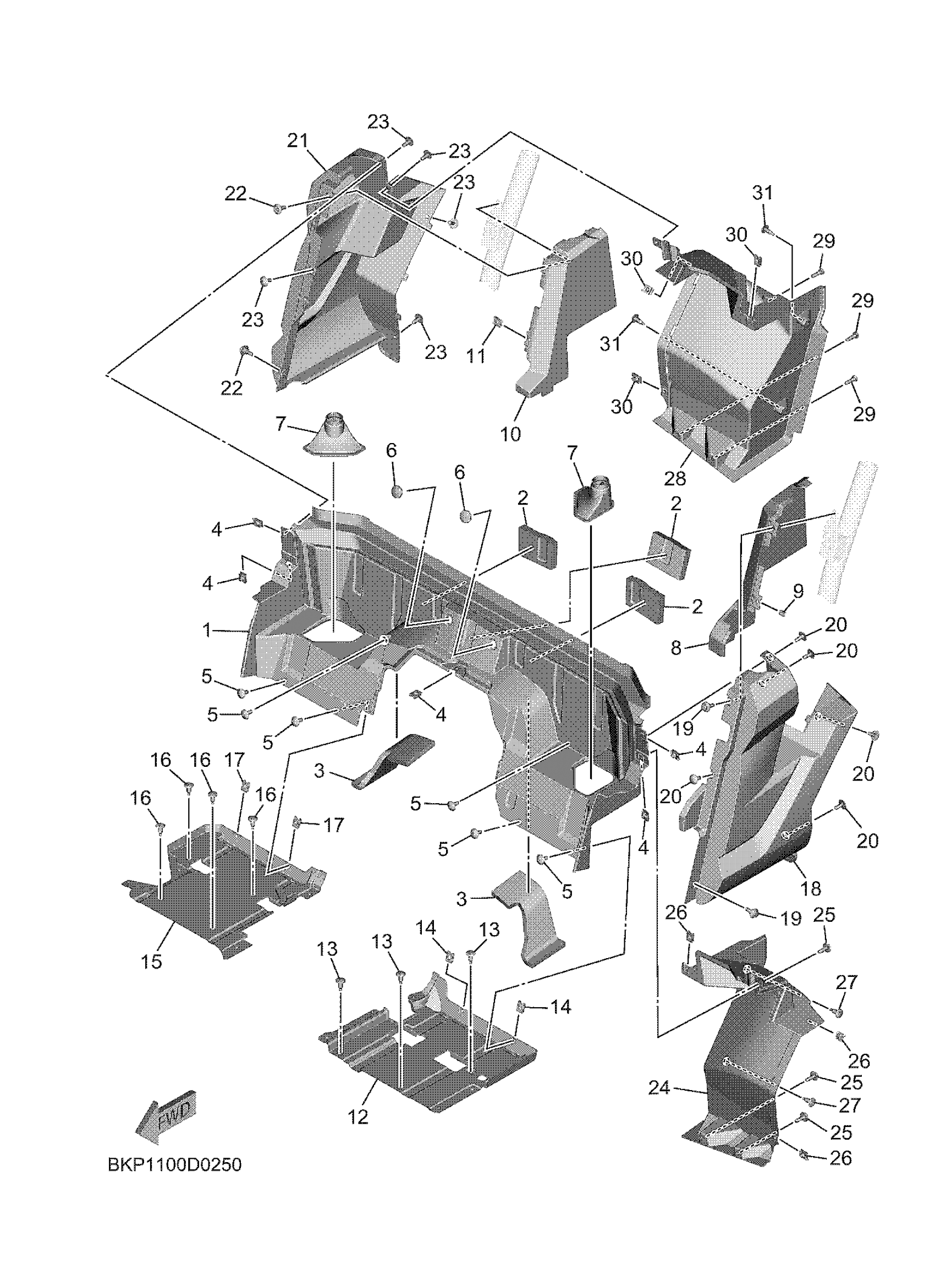

Yamaha YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026 SIDE COVER 2 Diagram
#
1
COVER,REAR PURPBLU
B8K-F2866-01-00
$62.99
2
INSULATOR, SIDE CO
B8K-F174A-00-00
$3.02
3
INSULATOR, SIDE CO
B8K-F174T-00-00
$7.49
4
NUT, SPRING
90183-062A1-00
$1.96
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
PLUG
90338-18266-00
$7.49
7
PLATE, RUBBER 5
B8K-F845J-01-00
$40.99
8
COVER, SIDE 1
B4M-F2864-00-00
$13.99
9
NUT, SPRING
90183-062A1-00
$1.96
10
COVER, SIDE 2
B4M-F2868-00-00
$9.49
11
NUT, SPRING
90183-062A1-00
$1.96
12
PLATE
B8K-F84A3-01-00
$29.99
13
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
14
NUT, SPRING
90183-062A1-00
$1.96
15
PLATE, UNDER 2
B8K-F84A4-00-00
$28.99
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
NUT, SPRING
90183-062A1-00
$1.96
18
COVER, SIDE 4
B4M-F1741-30-00
Unavailable
19
BOLT
90109-06840-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
21
COVER, SIDE 5
B4M-F171E-30-00
Unavailable
22
BOLT
90109-06840-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
24
MUD GUARD 1
B8K-F2327-00-00
Unavailable
25
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
26
NUT, SPRING
90183-062A1-00
$1.96
27
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
28
MUD GUARD 2
B8K-F2328-00-00
Unavailable
29
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
30
NUT, SPRING
90183-062A1-00
$1.96
31
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
