- YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026
REAR WHEEL 2

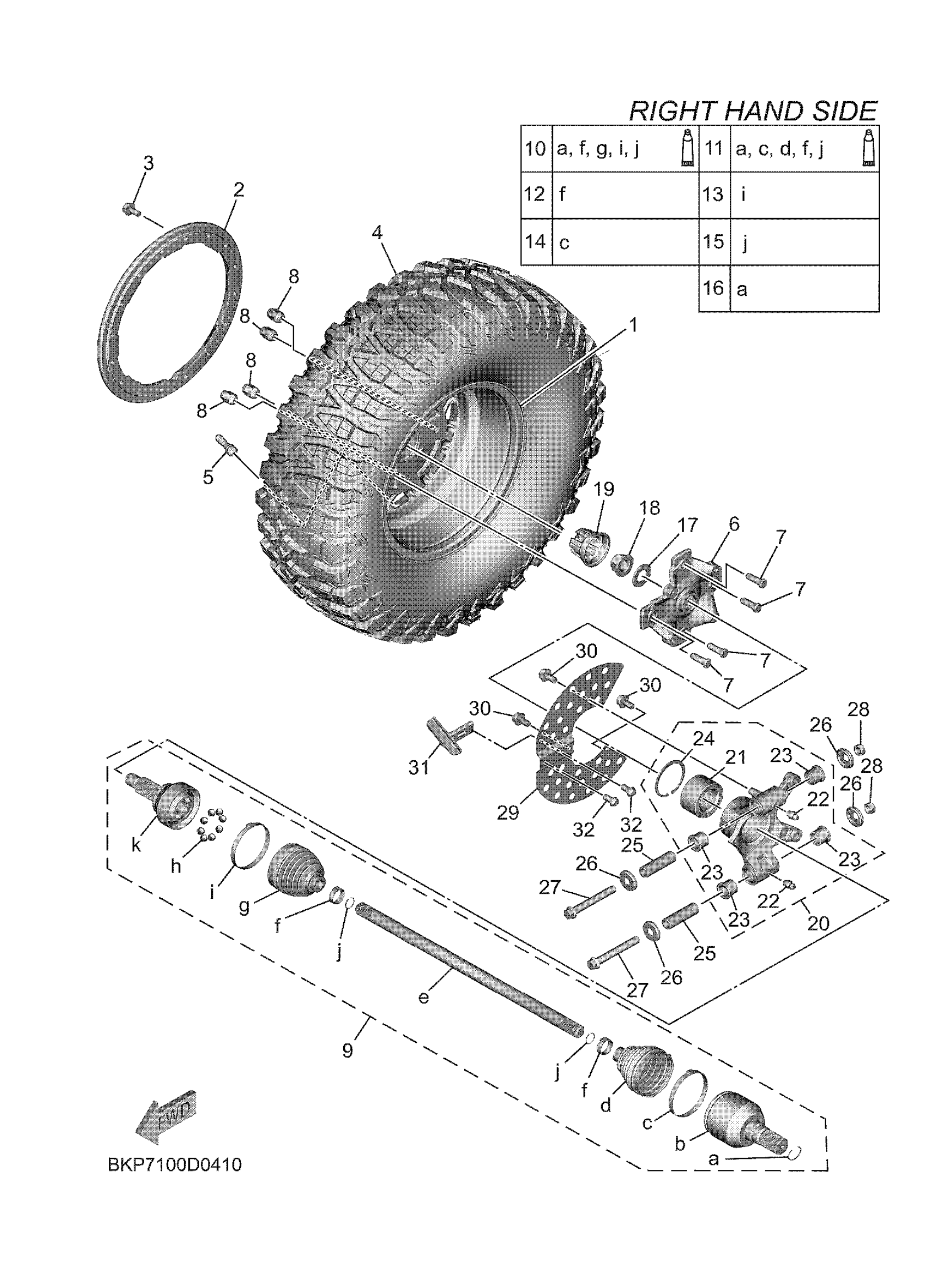

Yamaha YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026 REAR WHEEL 2 Diagram
#
1
CAST WHEEL, FRONT
BKP-F5168-01-00
Unavailable
2
RING 1
B5H-F5185-20-00
Unavailable
3
BOLT, FLANGE
90105-088J5-00
$3.28
4
TIRE (30X10.00R14 GA-787A)
94110-14811-00
Unavailable
5
VALVE, RIM
93900-00840-00
$1.96
6
HUB, FRONT
B4J-F5111-02-00
$131.99
7
BOLT, SERRATION
90114-12005-00
$2.97
8
NUT, CROWN
90176-12801-00
Unavailable
9
REAR DRIVE SHAFT A
BKP-F531H-00-00
Unavailable
10
BOOT SET (BALL JOI
B4J-F530X-00-00
$88.99
11
BOOT SET(DOUBLE OF
BKP-F530Y-00-00
$172.99
12
BAND
B4J-F5719-00-00
$10.49
13
BAND
B4J-F639A-00-00
$5.60
14
BAND
B4J-F6293-00-00
$5.60
15
CLIP
B4J-F6397-00-00
$5.60
16
. CLIP
BKP-F4519-00-00
Unavailable
17
WASHER, PLATE
90201-25023-00
Unavailable
18
NUT
90179-24006-00
Unavailable
19
CAP, WHEEL
2HC-F512A-00-00
Unavailable
20
REAR KNUCKLE ASSY.
BKP-F532F-02-00
Unavailable
21
BEARING
93305-00801-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
BUSH, SOLID
90381-22001-00
Unavailable
24
CIRCLIP (70R)
93420-72065-00
Unavailable
25
COLLAR
90387-14025-00
Unavailable
26
COVER, THRUST 1
BYP-23517-00-00
Unavailable
27
BOLT, FLANGE
90105-14018-00
Unavailable
28
NUT, SELF-LOCKING
90185-14010-00
Unavailable
29
RING, WHEEL RR. 2
2HC-F535C-00-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
PLATE, GUIDE 2
2HC-F2342-00-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
