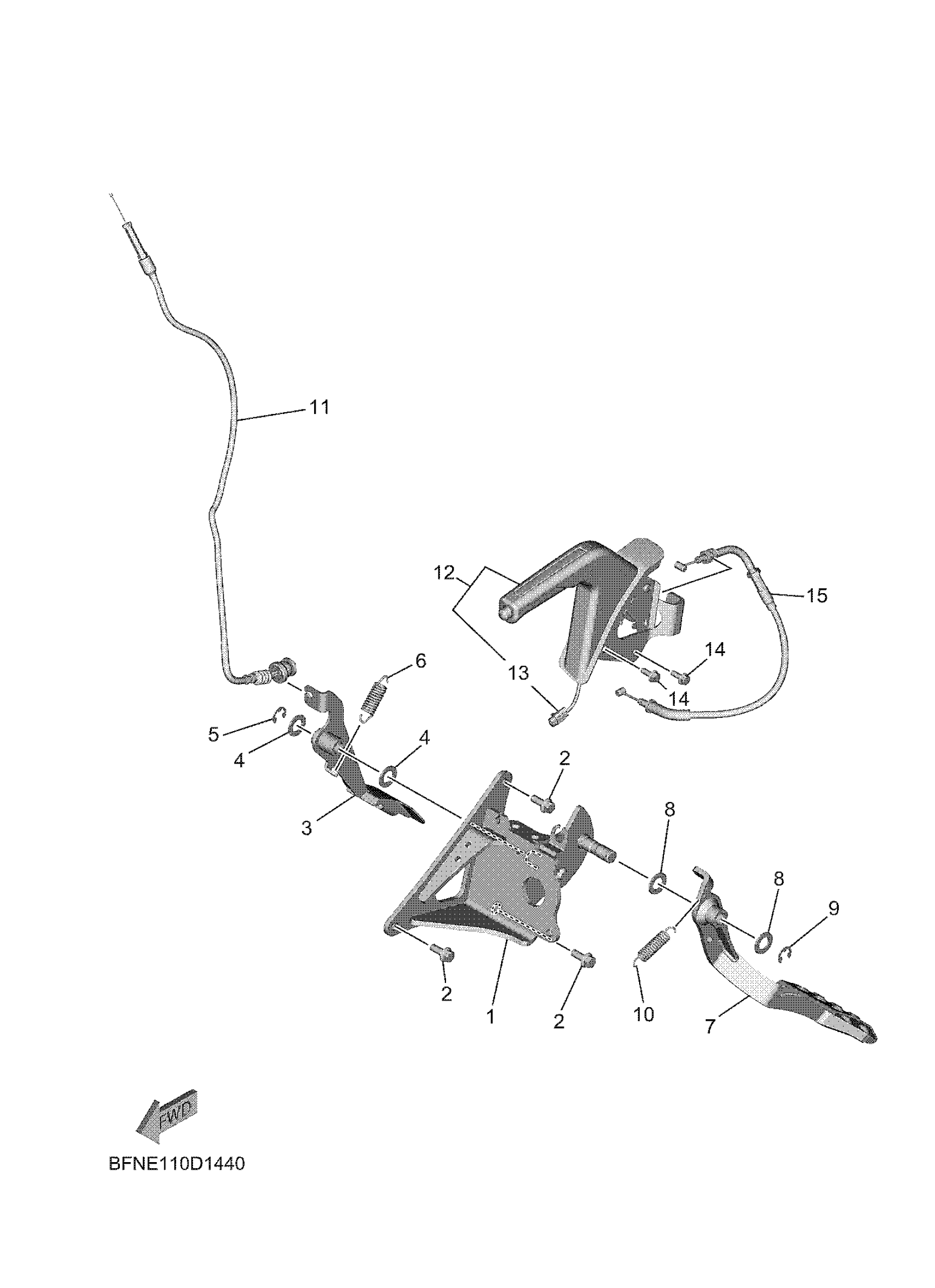

Yamaha YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026 PEDAL WIRE Diagram

#

Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$62.62

2

BOLT, FLANGE

95812-08020-00

$1.58

3

ACCEL PEDAL ASSY

B4J-F7801-00-00

$21.36

4

WASHER, PLATE

90201-15018-00

$5.90

5

CIRCLIP (122)

93430-12008-00

$4.89

6

SPRING, TENSION

90506-23023-00

$3.91

7

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

8

WASHER, PLATE

90201-15018-00

$5.90

9

CIRCLIP (122)

93430-12008-00

$4.89

10

SPRING, TENSION (2X4)

90506-20192-00

$5.30

11

WIRE, THROTTLE 1

B4J-26311-00-00

$42.79

12

PARKING LEVER ASSY

B4J-F5690-01-00

$96.26

13

SWITCH COMP.

B4J-H251S-00-00

Unavailable

14

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$0.89

15

WIRE, BRAKE 1

B4J-26341-02-00

$32.77
