- YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026
CARRIER

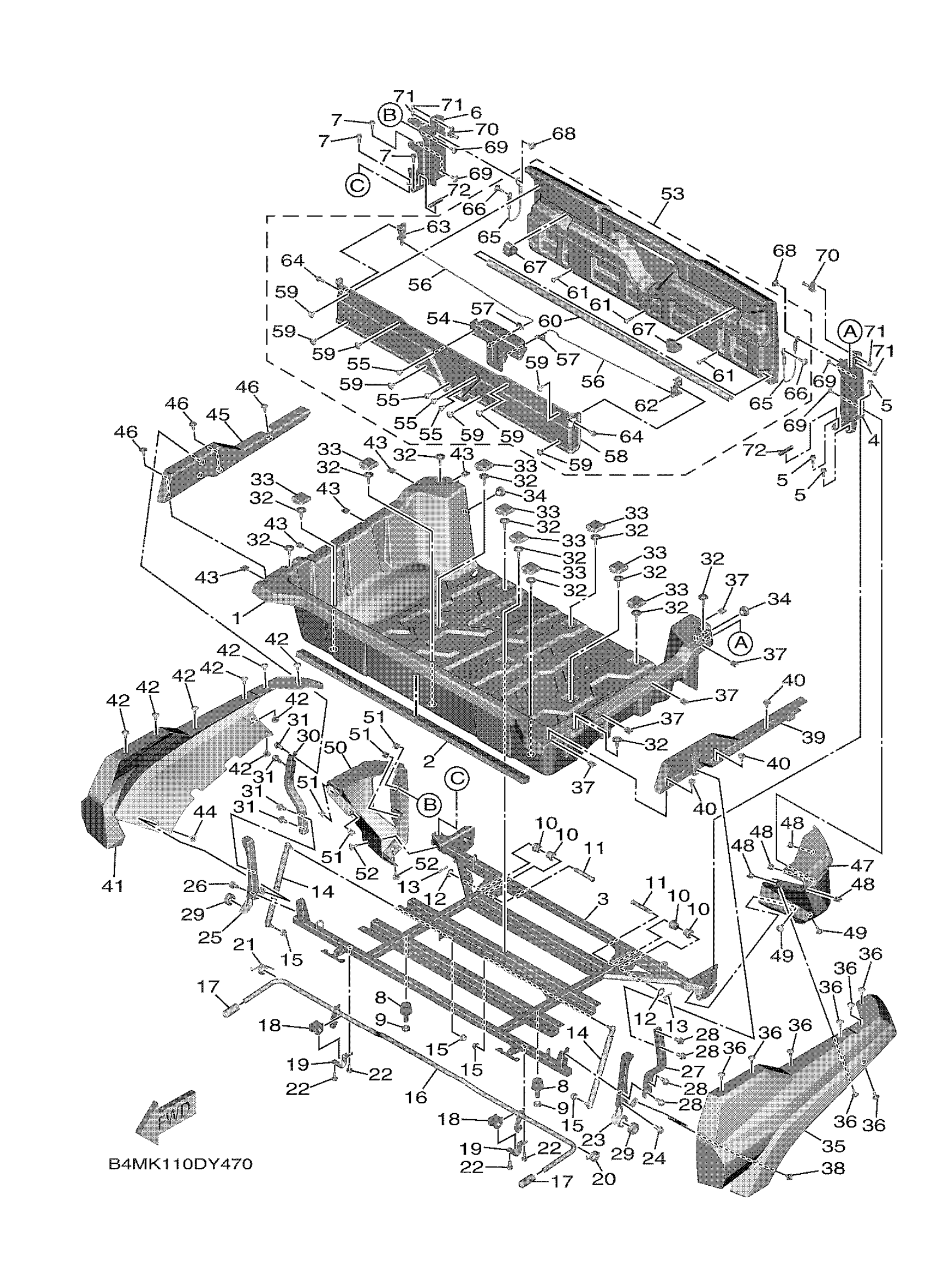

Yamaha YXE10WRCTD (WOLVERINE RMAX2 1000 SPORT) BKPF 2026 CARRIER Diagram
#
1
BOX
B8K-F1171-00-00
Unavailable
2
INSULATOR 3
B8K-F172S-00-00
$9.49
3
BOX, BASE
B8K-F845C-10-00
Unavailable
4
STAY, FRONT GUARD
B8K-F8413-11-00
$79.99
5
BOLT, FLANGE DEEP RECESS
95D32-06016-00
$0.65
6
STAY, FRONT GUARD
B8K-F8414-11-00
Unavailable
7
BOLT, FLANGE DEEP RECESS
95D32-06016-00
$0.65
8
HOLDER, DAMPER
B4M-F8375-00-00
$16.99
9
NUT
90170-10206-00
$5.60
10
BUSH 1
JW6-F2123-00-00
Unavailable
11
PIN, TAPER
1XD-F7827-00-00
Unavailable
12
WASHER PLATE 611441260000
90201-14212-00
$8.49
13
CLIP(3YF)
90468-16191-00
$8.49
14
DAMPER 1
B8K-F8415-10-00
$33.99
15
NUT, SELF-LOCKING
95602-08200-00
$3.20
16
LATCH ASSY
B8K-K7180-00-00
Unavailable
17
CAP, PROTECTOR END
B8K-K818M-00-00
Unavailable
18
GROMMET
90480-01819-00
Unavailable
19
BRKT., TRUNCK 1
B8K-F84AS-00-00
Unavailable
20
SPRING
B8K-F8489-00-00
Unavailable
21
SPRING 2
B8K-F848A-00-00
Unavailable
22
BOLT, FLANGE DEEP RECESS
95D32-06016-00
$0.65
23
BRACKET 3
B8K-F8476-10-00
Unavailable
24
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
25
BRACKET 5
B8K-F8486-10-00
Unavailable
26
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
27
BRACKET 3
B4M-F8476-00-00
Unavailable
28
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
29
GROMMET
90480-25801-00
Unavailable
30
BRACKET 3
B4M-F8476-00-00
Unavailable
31
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
32
BOLT
90109-068A5-00
Unavailable
33
CAP
2MB-F143A-00-00
Unavailable
34
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
35
PANEL, REAR FENDER
B4M-K8191-51-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
37
NUT, SPRING
90183-062A1-00
Unavailable
38
BOLT
90109-06334-00
Unavailable
39
SUPT, 1
B4M-F845S-03-00
Unavailable
40
BOLT, WITH WASHER
90119-06226-00
Unavailable
41
PANEL, REAR FENDER
B4M-K8192-51-00
Unavailable
42
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
43
NUT, SPRING
90183-062A1-00
Unavailable
44
BOLT
90109-06334-00
Unavailable
45
SUPT. ,2
B4M-F845T-03-00
Unavailable
46
BOLT, WITH WASHER
90119-06226-00
Unavailable
47
COVER, TAILLIGHT
B4M-H4516-00-00
Unavailable
48
NUT, SPRING
90183-062A1-00
Unavailable
49
BOLT
90109-06334-00
Unavailable
50
COVER, TAILLIGHT
B4M-H4716-00-00
Unavailable
51
NUT, SPRING
90183-062A1-00
Unavailable
52
BOLT
90109-06334-00
Unavailable
53
REAR STORAGE LID C
BAN-K810N-10-00
Unavailable
54
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
55
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
56
ROD
B8K-F8478-00-00
Unavailable
57
CLIP, CABLE
BG4-F2805-01-00
Unavailable
58
COVER
B8K-F331G-00-00
Unavailable
59
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
60
HINGE 2
B8K-F463F-02-00
Unavailable
61
. SCREW
90149-06846-00
Unavailable
62
LOCK ASSY
BG4-F16A0-00-00
Unavailable
63
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
64
BOLT, FLANGE DEEP RECESS
95D32-06016-00
$0.65
65
HOLDER, CABLE
B8K-K7195-00-00
Unavailable
66
BOLT
90109-06171-00
Unavailable
67
DAMPER 2
BG4-F8416-10-00
Unavailable
68
BOLT
90109-06212-00
Unavailable
69
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
70
BOLT, STUD
BG4-F4441-00-00
Unavailable
71
NUT, U FLANGE
95604-06200-00
Unavailable
72
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
