Description

Price

1

SUPPORT, ROOF 3

B4M-K831A-00-00

Unavailable

2

BOLT, FLANGE

95817-12040-00

$4.19

3

NUT, SELF-LOCKING

90185-12002-00

$12.49

4

BOLT,BUTTON

92017-10070-00

$4.14

5

NUT, SELF-LOCKING

90185-10819-00

$0.90

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

B4M-K831E-00-00

$114.99

8

BOLT, FLANGE

95817-12040-00

$4.19

9

NUT, SELF-LOCKING

90185-12002-00

$12.49

10

BOLT,BUTTON

92017-10070-00

$4.14

11

NUT, SELF-LOCKING

90185-10819-00

$0.90

12

WASHER 2

1XD-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

B4J-K8392-01-00

$171.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, ROOF FRAME 2

B4J-K8393-01-00

$166.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

B4M-K830B-00-00

Unavailable

18

BOLT, FLANGE

95812-10016-00

Unavailable

19

REINFORCEMENT, ROO

B4M-K831M-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

21

BOLT,BUTTON

92017-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10819-00

$0.90

23

BRACKET 2

BAS-K7722-00-00

Unavailable

24

SCREW

90149-08805-00

Unavailable

25

MIRROR

BKP-F6291-01-00

Unavailable

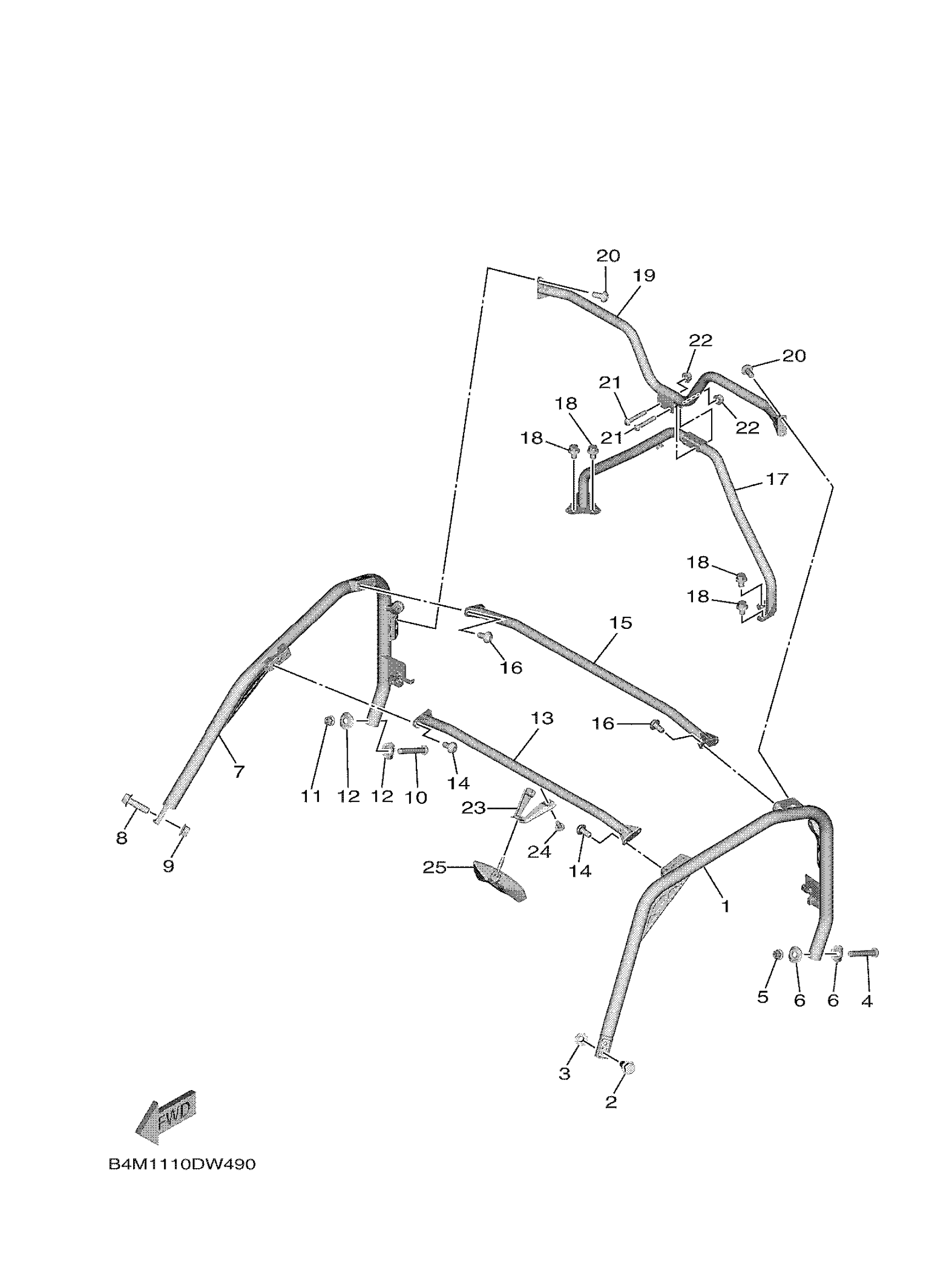

Yamaha YXE10WRCRL (WOLVERINE RMAX 2 SPORT) D267 2024 GUARD 2 Diagram

SUPPORT, ROOF 3

BOLT, FLANGE

NUT, SELF-LOCKING

BOLT,BUTTON

NUT, SELF-LOCKING

WASHER 2

SUPPORT, ROOF 4

BOLT, FLANGE

NUT, SELF-LOCKING

BOLT,BUTTON

NUT, SELF-LOCKING

WASHER 2

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

MEMBER, ROOF FRAME 2

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY

BOLT, FLANGE

REINFORCEMENT, ROO

BOLT,HEX. SOCKET B

BOLT,BUTTON

NUT, SELF-LOCKING

BRACKET 2

SCREW

MIRROR
