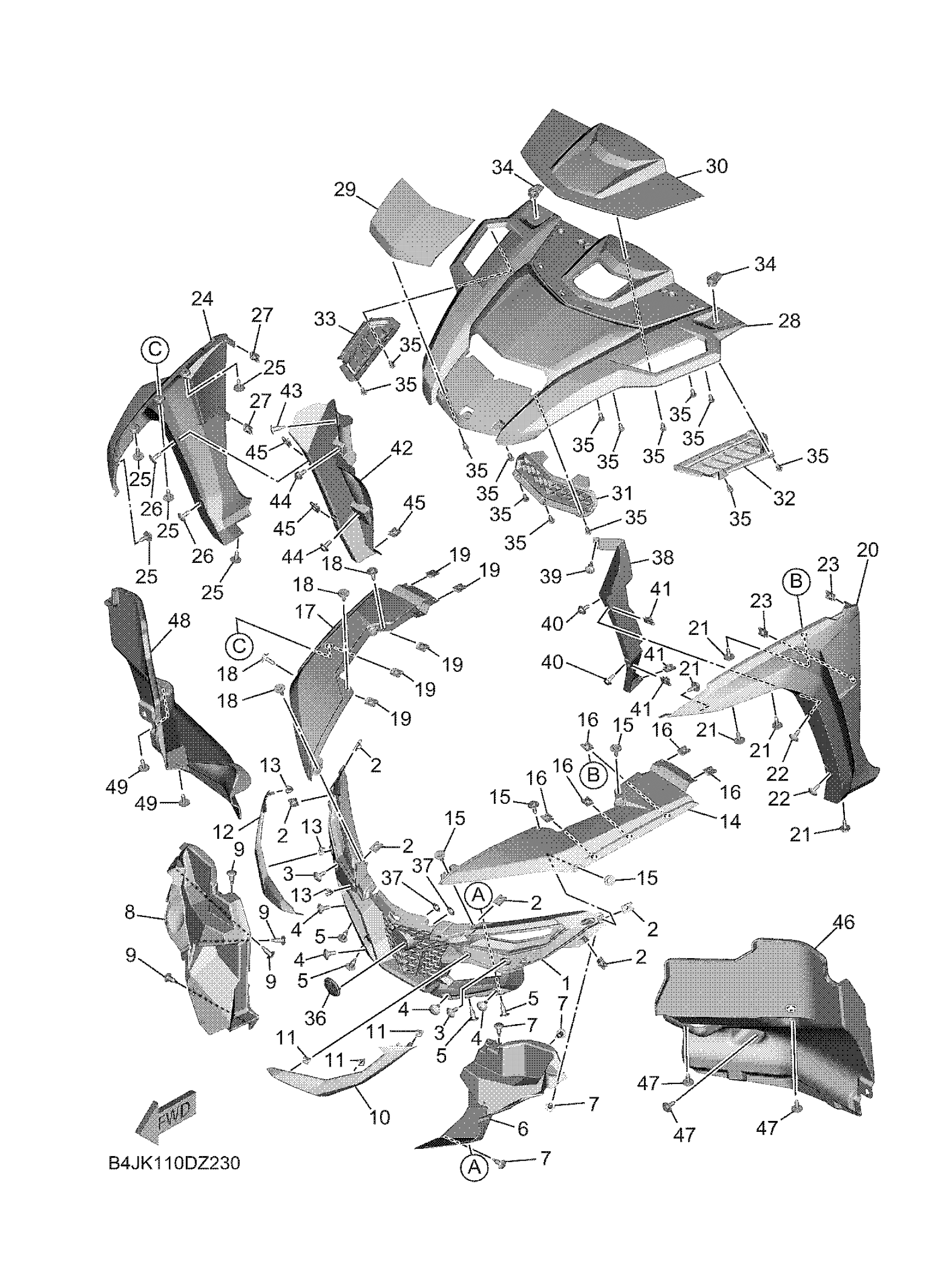

Yamaha YXE10WRCRL (WOLVERINE RMAX 2 SPORT) D267 2024 FRONT FENDER 2 Diagram

#

Description
Price

1

GRILLE, FRONT

B4J-F8309-00-00

$108.92

2

NUT, SPRING

90183-062A1-00

$1.75

3

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

4

BOLT

90109-06334-00

$2.33

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

COVER 1

B4J-E246A-02-00

$21.55

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

COVER 2

B4J-E246E-02-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

PANEL 1

B4J-F835U-50-00

$22.58

11

CLIP

90468-040A0-00

$5.81

12

PANEL 2

B4J-F835V-50-00

$26.41

13

CLIP

90468-040A0-00

$5.81

14

FENDER, INNER

B4J-F1552-10-00

$74.45

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

NUT, SPRING

90183-062A1-00

$1.75

17

FENDER, INNER 2

B4J-F1553-10-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$2.12

19

NUT, SPRING

90183-062A1-00

$1.75

20

FENDER, FRONT

B4J-F1511-40-00

Unavailable

21

BOLT, WITH WASHER

90119-06226-00

$2.12

22

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

23

NUT, SPRING

90183-062A1-00

$1.75

24

FENDER, FRONT 2

B4J-F1556-40-00

Unavailable

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

27

NUT, SPRING

90183-062A1-00

$1.75

28

HOOD 3

B4J-F197H-30-00

$181.41

29

HOOD 1

B4J-F835E-00-00

Unavailable

30

HOOD 2

B4J-F835F-01-00

Unavailable

31

GRILLE

B4J-K715N-01-00

Unavailable

32

VENT, FRONT 1

B4J-K715H-00-00

Unavailable

33

VENT, FRONT 2

B4J-K715J-00-00

Unavailable

34

LEVER, LOCK

1XD-2175K-10-00

Unavailable

35

TAPPING SCREW

90169-06802-00

Unavailable

36

EMBLEM, YAMAHA

B4J-F153E-00-00

Unavailable

37

NUT, SPRING

90183-06071-00

$0.50

38

GUARD, MUD

B4J-F152R-00-00

Unavailable

39

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

40

BOLT, WITH WASHER

90119-06242-00

Unavailable

41

NUT, SPRING

90183-062A1-00

$1.75

42

GUARD, MUD

B4J-F1629-00-00

Unavailable

43

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

44

BOLT, WITH WASHER

90119-06242-00

Unavailable

45

NUT, SPRING

90183-062A1-00

$1.75

46

PROTECTOR 1

BKP-F622K-00-00

Unavailable

47

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

48

PROTECTOR 2

BKP-F622L-00-00

Unavailable

49

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15
