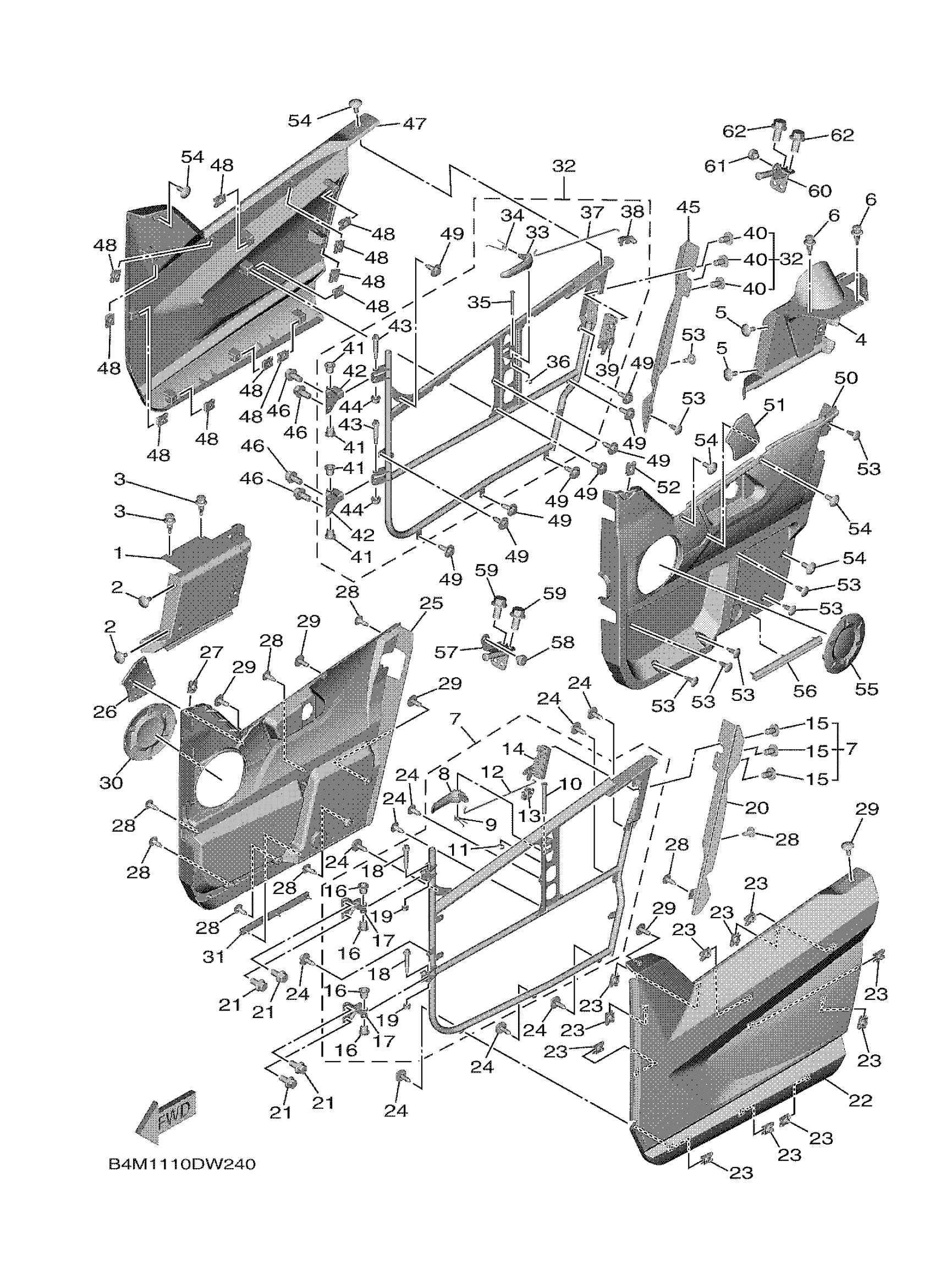

Yamaha YXE10WRCPL (WOLVERINE RMAX2 SPORT) B4MS 2023 SIDE COVER Diagram
#
1
COVER, SIDE 2
B4J-F1721-01-00
$109.99
2
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
COVER, SIDE 3
B4J-F1731-00-00
$21.99
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
FF. DOOR COMP. LH
B4J-K8504-01-00
$220.99
8
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
9
SPRING
2HC-F1742-00-00
$2.96
10
. PIN
90249-05801-00
Unavailable
11
CIRCLIP (EU0)
99080-04600-00
Unavailable
12
ROD 1
B4J-F7247-00-00
$3.76
13
CLIP, CABLE
BG4-F2805-01-00
$2.17
14
LOCK ASSY
B4J-F16A0-02-00
$53.99
15
SCREW
90149-08805-00
$1.01
16
BUSH, SOLID
90381-08001-00
Unavailable
17
HINGE
B4J-F1796-01-00
Unavailable
18
BOLT
90109-068C9-00
Unavailable
19
NUT, U FLANGE
95604-06200-00
Unavailable
20
PLATE 1
B4J-F191B-00-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
TRIM, SIDE PANEL 1
B4J-K817H-30-00
Unavailable
23
NUT, SPRING
90183-062A1-00
Unavailable
24
BOLT, WITH WASHER
90119-06226-00
Unavailable
25
PNL., DOOR FR. LH
B4J-K8557-00-00
Unavailable
26
PROTECTOR 1
B4J-K811V-01-00
Unavailable
27
NUT, SPRING
90183-062A1-00
Unavailable
28
RIVET(8AB)
90269-05073-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
30
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
31
SEAL 2
B4J-F1735-00-00
Unavailable
32
FF. DOOR COMP. RH
B4J-K8505-01-00
Unavailable
33
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
34
SPRING
2HC-F1742-00-00
$2.96
35
. PIN
90249-05801-00
Unavailable
36
CIRCLIP (EU0)
99080-04600-00
Unavailable
37
ROD 2
B4J-F7248-00-00
Unavailable
38
CLIP, CABLE
BG4-F2805-01-00
$2.17
39
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
40
SCREW
90149-08805-00
$1.01
41
BUSH, SOLID
90381-08001-00
Unavailable
42
HINGE
B4J-F1796-01-00
Unavailable
43
BOLT
90109-068C9-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
45
PLATE 2
B4J-F191C-00-00
Unavailable
46
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
47
TRIM, SIDE PANEL 2
B4J-K817J-30-00
Unavailable
48
NUT, SPRING
90183-062A1-00
Unavailable
49
BOLT, WITH WASHER
90119-06226-00
Unavailable
50
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
51
PROTECTOR 1
B4J-K811V-01-00
Unavailable
52
NUT, SPRING
90183-062A1-00
Unavailable
53
RIVET(8AB)
90269-05073-00
Unavailable
54
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
55
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
56
SEAL 2
B4J-F1735-00-00
Unavailable
57
HOOK, SIDE COVER 1
B4J-F1331-01-00
Unavailable
58
PLUG
90338-10801-00
Unavailable
59
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
60
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
61
PLUG
90338-10801-00
Unavailable
62
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
