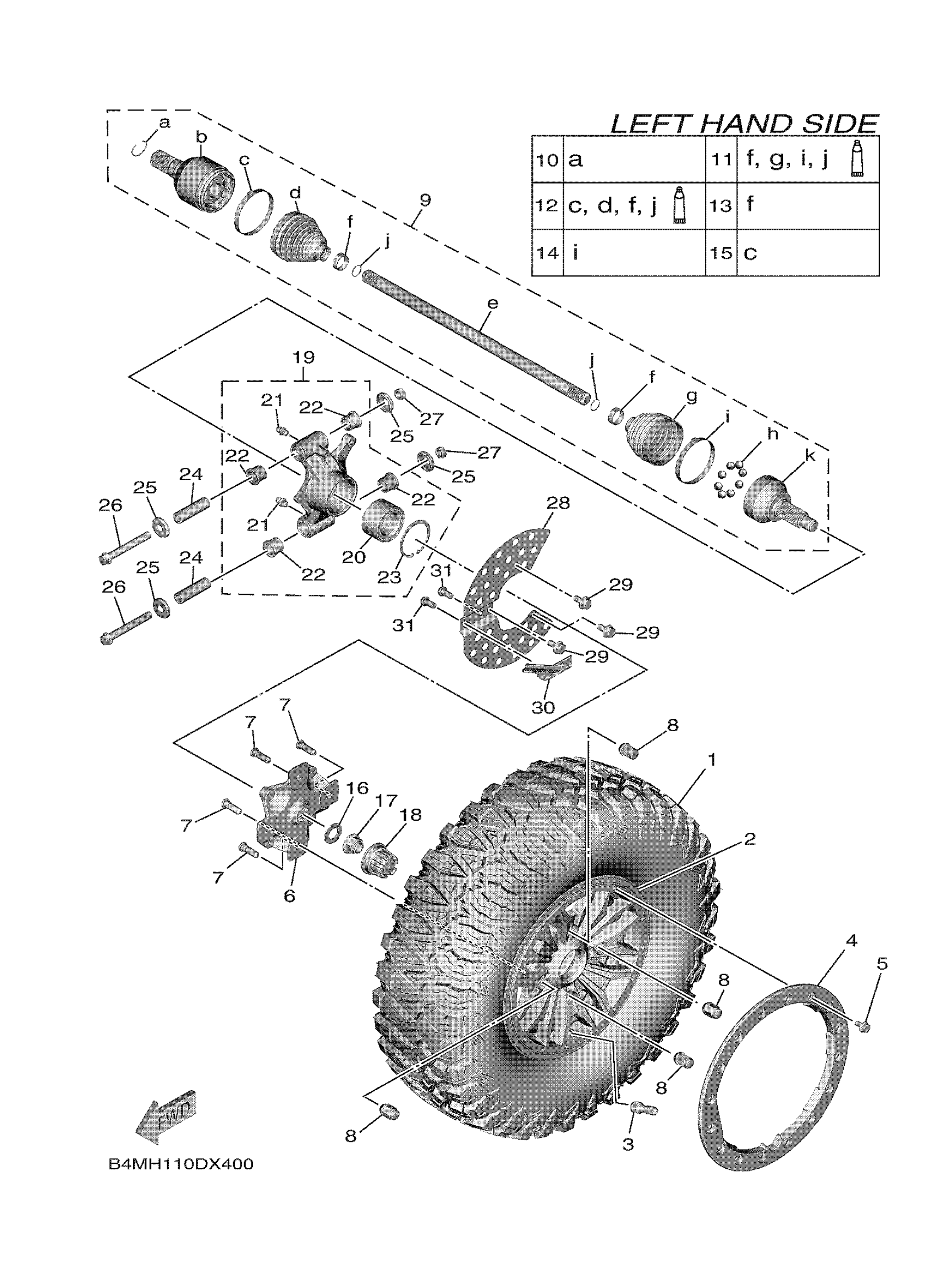

Yamaha YXE10WRCPL (WOLVERINE RMAX2 SPORT) B4MS 2023 REAR WHEEL Diagram
#
1
TIRE (30X10.00R14 GA-787A)
94110-14811-00
Unavailable
2
CAST WHEEL, FRONT
BKP-F5168-01-00
Unavailable
3
VALVE, RIM
93900-00840-00
$1.96
4
RING 1
B5H-F5185-20-00
Unavailable
5
BOLT, FLANGE
90105-088J5-00
$3.28
6
HUB, FRONT
B4J-F5111-02-00
$131.99
7
BOLT, SERRATION
90114-12005-00
$2.97
8
NUT, CROWN
90176-12801-00
Unavailable
9
REAR DRIVE SHAFT ASSY
B4M-F531H-03-00
Unavailable
10
CLIP, SPRING
B4J-F536E-00-00
Unavailable
11
BOOT SET (BALL JOI
B4J-F530X-00-00
$88.99
12
BOOT SET(DOUBLE OF
B4J-F530Y-00-00
$169.99
13
BAND
B4J-F5719-00-00
$10.49
14
BAND
B4J-F639A-00-00
$5.60
15
BAND
B4J-F6293-00-00
$5.60
16
WASHER, PLATE
90201-25023-00
Unavailable
17
NUT
90179-24006-00
Unavailable
18
CAP, WHEEL
2HC-F512A-00-00
Unavailable
19
REAR KNUCKLE ASSY
B4J-F530F-00-00
Unavailable
20
BEARING
93305-00801-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
BUSH, SOLID
90381-22001-00
Unavailable
23
CIRCLIP (70R)
93420-72065-00
Unavailable
24
COLLAR
90387-14025-00
Unavailable
25
COVER, THRUST 1
BYP-23517-00-00
Unavailable
26
BOLT, FLANGE
90105-14017-00
Unavailable
27
NUT, SELF-LOCKING
90185-14010-00
Unavailable
28
RING, WHEEL RR. 1
2HC-F534C-00-00
Unavailable
29
BOLT, FLANGE
95817-06012-00
Unavailable
30
PLATE, GUIDE 1
2HC-F2341-00-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
