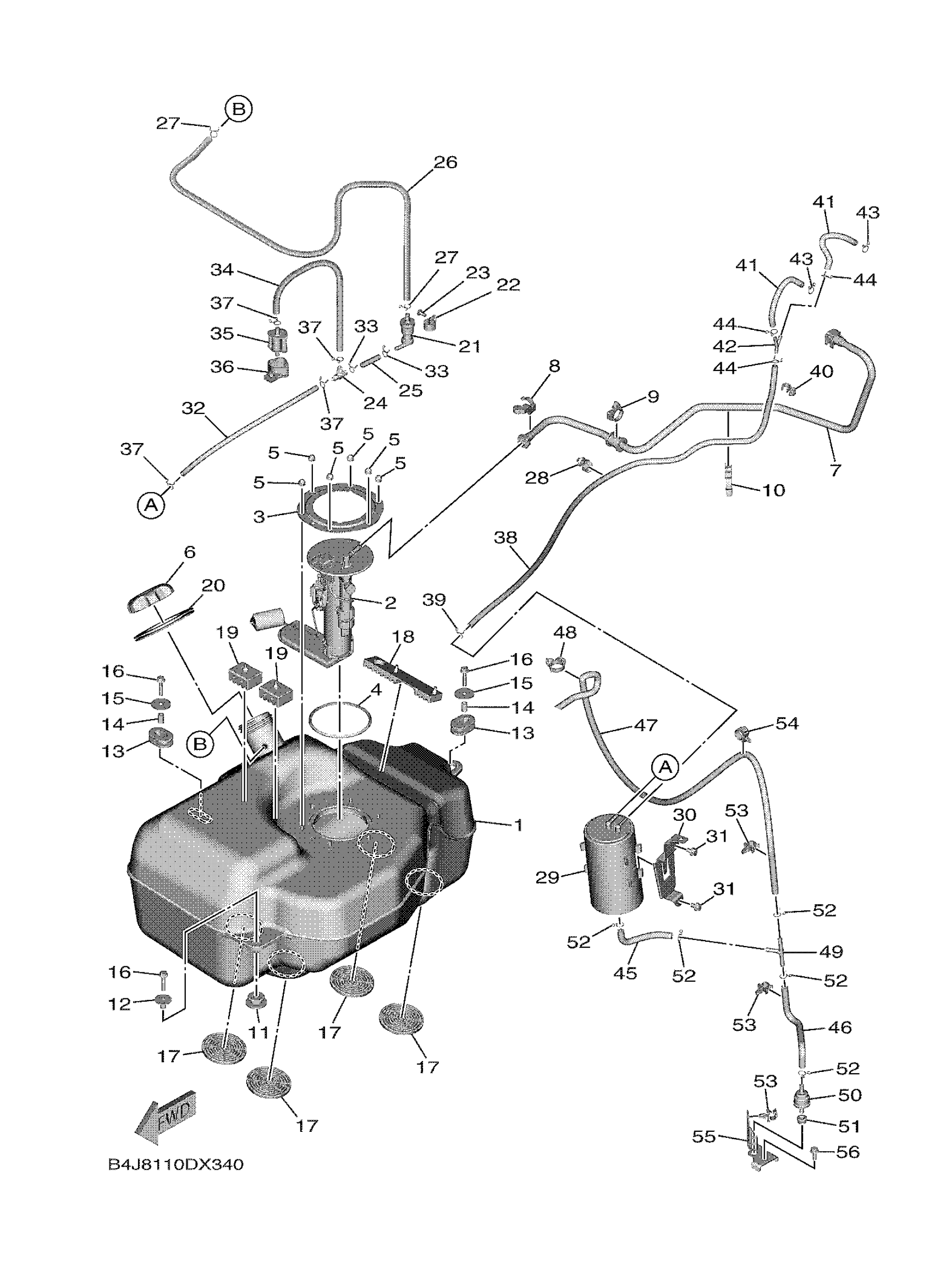

Yamaha YXE10WRCPL (WOLVERINE RMAX2 SPORT) B4MS 2023 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-01-00
Unavailable
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
7
PIPE, FUEL 1
B4J-13971-00-00
Unavailable
10
CLAMP
90464-10009-00
Unavailable
16
BOLT, FLANGE
95817-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
22
CLAMP
90464-15014-00
Unavailable
23
SCREW, BINDING
98907-05012-00
Unavailable
24
WAY 3
90413-06031-00
Unavailable
25
HOSE (L54)
90445-09043-00
Unavailable
26
HOSE (L810)
90445-09046-00
Unavailable
27
CLIP
90467-090A2-00
Unavailable
29
CANISTER ASSY
7CC-F4170-02-00
Unavailable
30
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
31
BOLT, FLANGE
95812-06010-00
Unavailable
32
HOSE (L270)
90445-09129-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
HOSE
90445-09029-00
Unavailable
35
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
36
BAND 1
3B4-24398-00-00
Unavailable
37
CLIP
90467-090A2-00
Unavailable
38
HOSE (L960)
90445-10065-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
40
CLAMP(6M7)
90464-09M31-00
Unavailable
41
HOSE (L130)
90445-10017-00
Unavailable
42
WAY 3 (73A)
90413-05013-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
PIPE 5
BG4-24315-00-00
Unavailable
46
PIPE 11
BG4-24322-00-00
Unavailable
47
HOSE (L1010)
90445-11100-00
Unavailable
49
WAY (70R)
90413-08012-00
Unavailable
50
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
51
GROMMET
90480-10003-00
Unavailable
52
CLIP
90467-100A1-00
Unavailable
53
CLAMP
90464-14M55-00
Unavailable
55
BRACKET 1
BG4-F148U-00-00
Unavailable
56
BOLT, FLANGE
90105-06831-00
Unavailable
