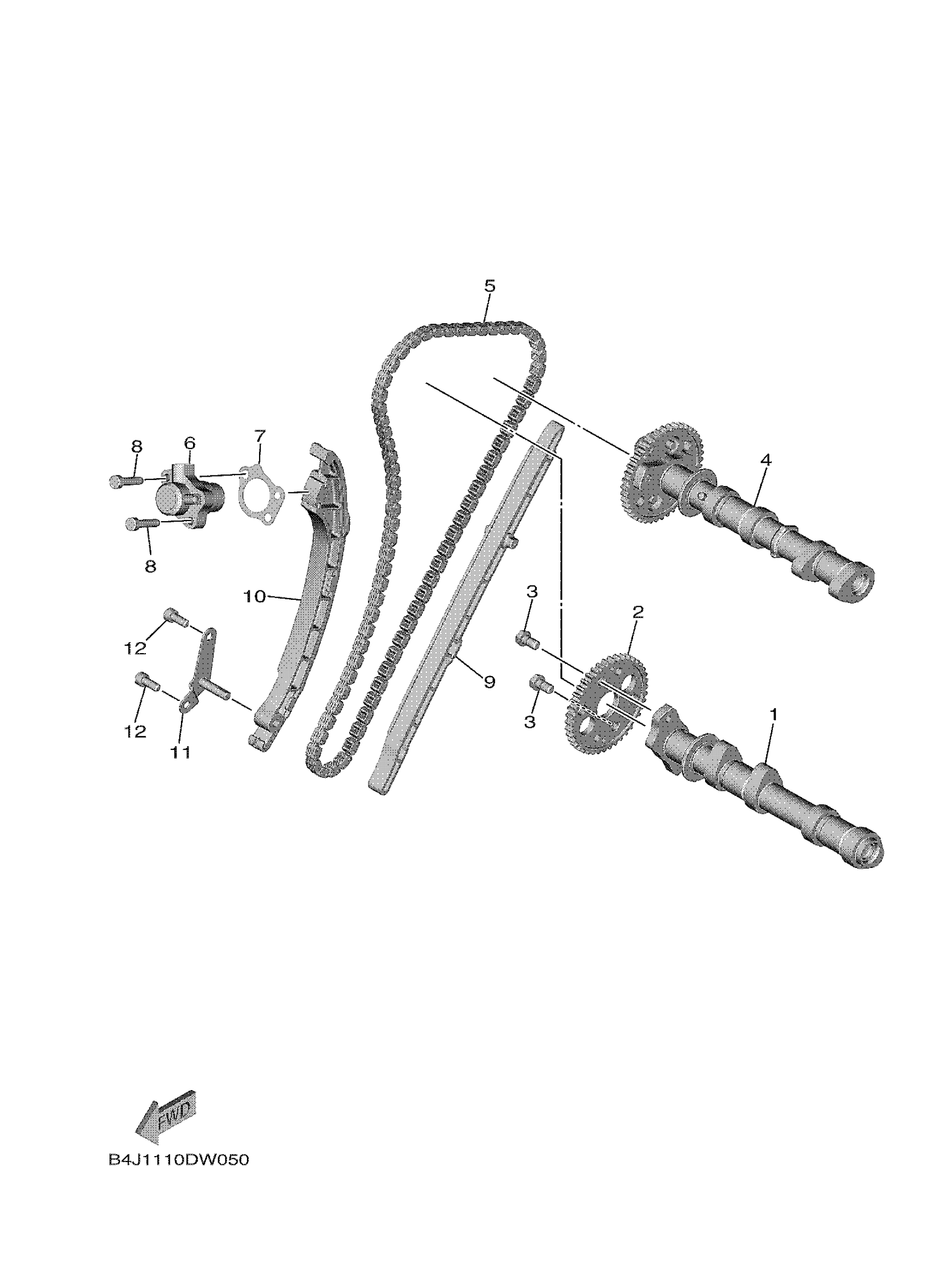

Yamaha YXE10WRCPL (WOLVERINE RMAX2 SPORT) B4MS 2023 CAMSHAFT & CHAIN Diagram

CAMSHAFT ASSY 1

B1R-E2170-00-00

Unavailable

SPROCKET, CAM CHAI

B1R-E2176-00-00

$46.90

BOLT, FLANGE

90105-07006-00

$5.84

CAMSHAFT ASSY 2

B1R-E2180-00-00

$302.06

CHAIN (T098XRH2015-146P-M)

94591-76146-00

$39.51

TENSIONER ASSY, CAM CHAIN

B1R-12210-00-00

$142.11

GASKET, TENSIONER CASE

15B-12213-00-00

$8.26

BOLT,SOCKET

91317-06025-00

$1.96

GUIDE, STOPPER 1

B1R-12231-00-00

$14.28

GUIDE, STOPPER 3

B1R-12221-00-00

$64.57

PLATE, GUIDE STOPP

B1R-E2233-00-00

Unavailable

BOLT (33M)

91312-06014-00

$4.43
