REAR BRAKE CALIPER

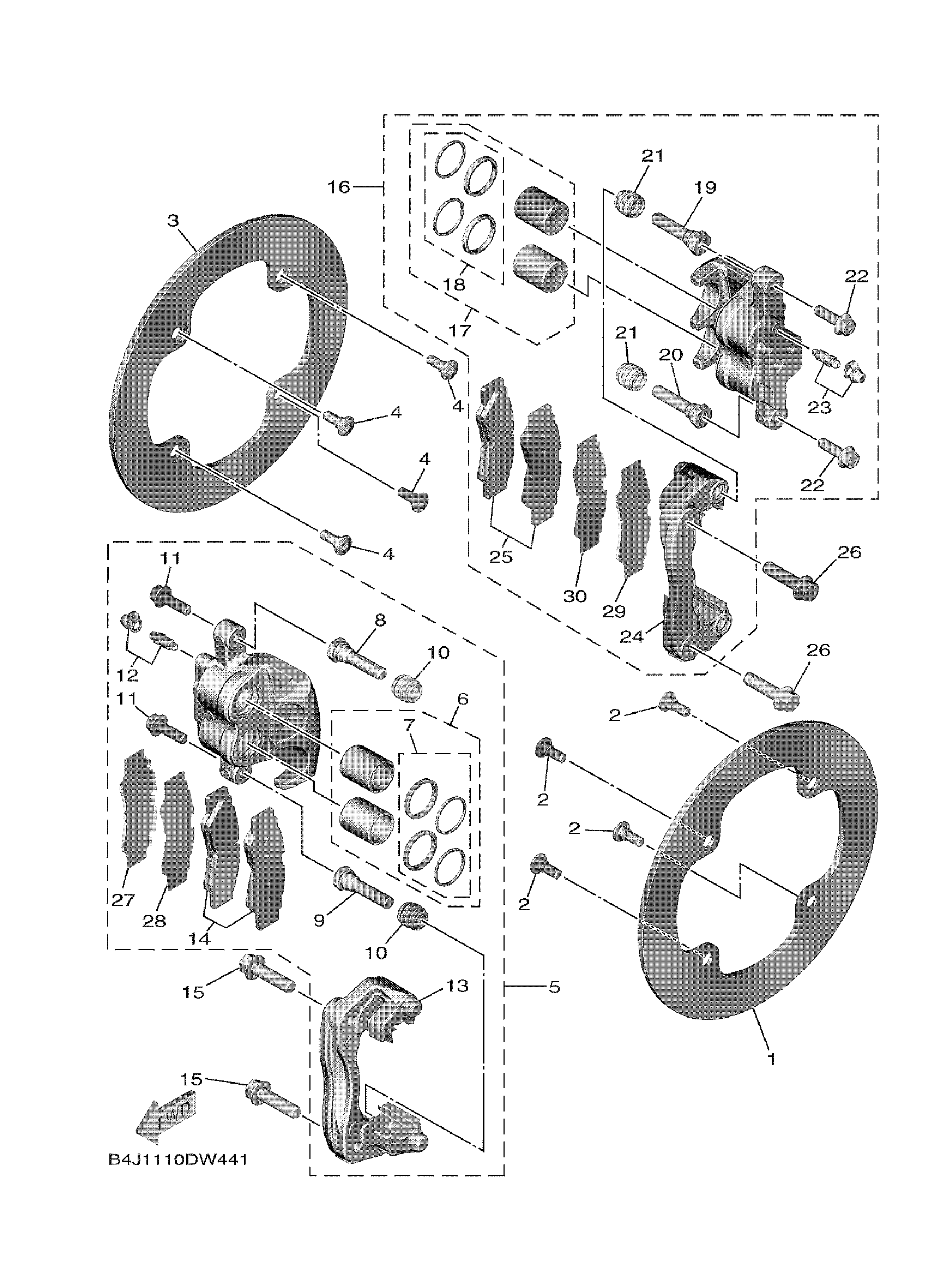

Yamaha YXE10WRCNL (WOLVERINE RMAX2 EPS SPORT) B4MH 2022 REAR BRAKE CALIPER Diagram
#
Description
Price
1
DISC, REAR BRAKE 1
B5H-F582V-00-00
Unavailable
2
BOLT
90109-08077-00
$8.49
3
DISC, REAR BRAKE 1
B5H-F582V-00-00
Unavailable
4
BOLT
90109-08077-00
$8.49
5
CALIPER ASSY, REAR 1
B4J-2580V-00-00
$322.99
6
PISTON ASSY, CALIPER
3LD-25802-00-00
$53.99
7
CALIPER SEAL KIT
3JD-25803-00-00
$21.99
8
BOLT
2HC-25926-00-00
Unavailable
9
BOLT
2HC-25926-10-00
Unavailable
10
BOOT, CALIPER
2HC-25917-00-00
$4.52
11
BOLT, FITTING
2HC-25833-00-00
$1.98
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BRACKET, SUPPORT
2HC-25921-00-00
$96.99
14
BRAKE PAD KIT 2
2HC-25806-00-00
$48.99
15
BOLT, FLANGE
90105-10405-00
$5.60
16
CALIPER ASSY, REAR 2
B4J-2580W-00-00
Unavailable
17
PISTON ASSY, CALIPER
3LD-25802-00-00
$53.99
18
CALIPER SEAL KIT
3JD-25803-00-00
$21.99
19
BOLT
2HC-25926-00-00
Unavailable
20
BOLT
2HC-25926-10-00
Unavailable
21
BOOT, CALIPER
2HC-25917-00-00
$4.52
22
BOLT, FITTING
2HC-25833-00-00
$1.98
23
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
24
BRACKET, SUPPORT
2HC-25921-00-00
$96.99
25
BRAKE PAD KIT 2
2HC-25806-00-00
$48.99
26
BOLT, FLANGE
90105-10405-00
$5.60
27
SHIM, CALIPER
B4J-25827-00-00
Unavailable
28
SHIM, CALIPER
B4J-25828-00-00
Unavailable
29
SHIM, CALIPER
B4J-25827-00-00
Unavailable
30
SHIM, CALIPER
B4J-25828-00-00
Unavailable
