- YXE10WRCNL (WOLVERINE RMAX2 EPS SPORT) B4MH 2022
FRONT BRAKE CALIPER

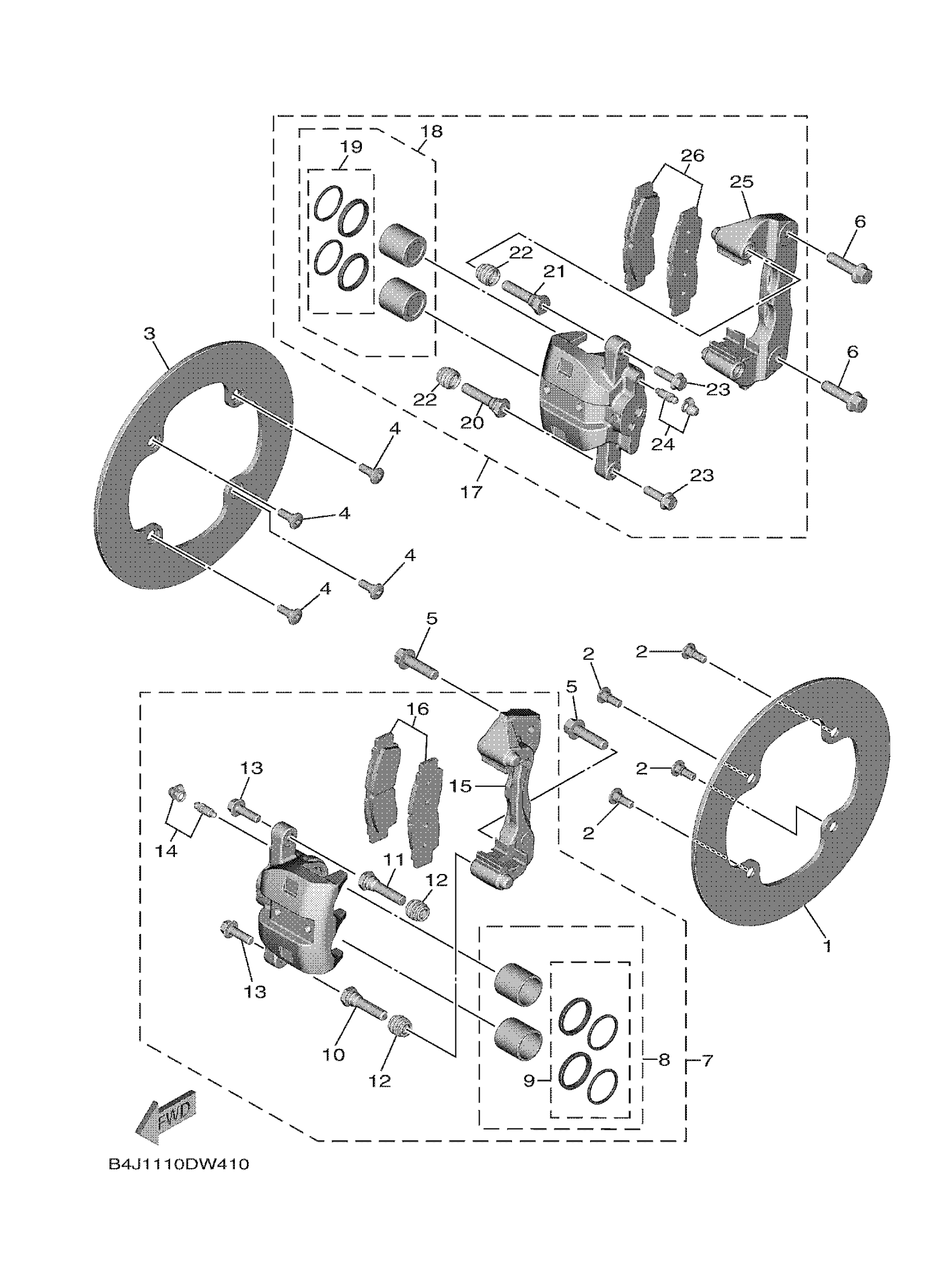

Yamaha YXE10WRCNL (WOLVERINE RMAX2 EPS SPORT) B4MH 2022 FRONT BRAKE CALIPER Diagram
#
Description
Price
1
DISC, BRAKE (LEFT)
B5H-F582T-00-00
$62.99
2
BOLT
90109-08077-00
$8.49
3
DISC, BRAKE (LEFT)
B5H-F582T-00-00
$62.99
4
BOLT
90109-08077-00
$8.49
5
BOLT, FLANGE
90105-10405-00
$5.60
6
BOLT, FLANGE
90105-10405-00
$5.60
7
CALIPER ASSY (LEFT)
2HC-2580T-00-00
$480.99
8
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
9
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
10
BOLT
2HC-25926-00-00
Unavailable
11
BOLT
2HC-25926-10-00
Unavailable
12
BOOT, CALIPER
2HC-25917-00-00
$4.52
13
BOLT, FITTING
2HC-25833-00-00
$1.98
14
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
15
BRACKET, CALIPER
2HC-25819-00-00
$111.99
16
BRAKE PAD KIT
2HC-25805-00-00
Unavailable
17
CALIPER ASSY (RIGHT)
2HC-2580U-00-00
Unavailable
18
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
19
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
20
BOLT
2HC-25926-00-00
Unavailable
21
BOLT
2HC-25926-10-00
Unavailable
22
BOOT, CALIPER
2HC-25917-00-00
$4.52
23
BOLT, FITTING
2HC-25833-00-00
$1.98
24
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
25
BRACKET, CALIPER
2HC-25819-00-00
$111.99
26
BRAKE PAD KIT
2HC-25805-00-00
Unavailable
