- YXE10WRATG (WOLVERINE RMAX2 1000 R SPEC) BKPB 2026
ELECTRICAL 3

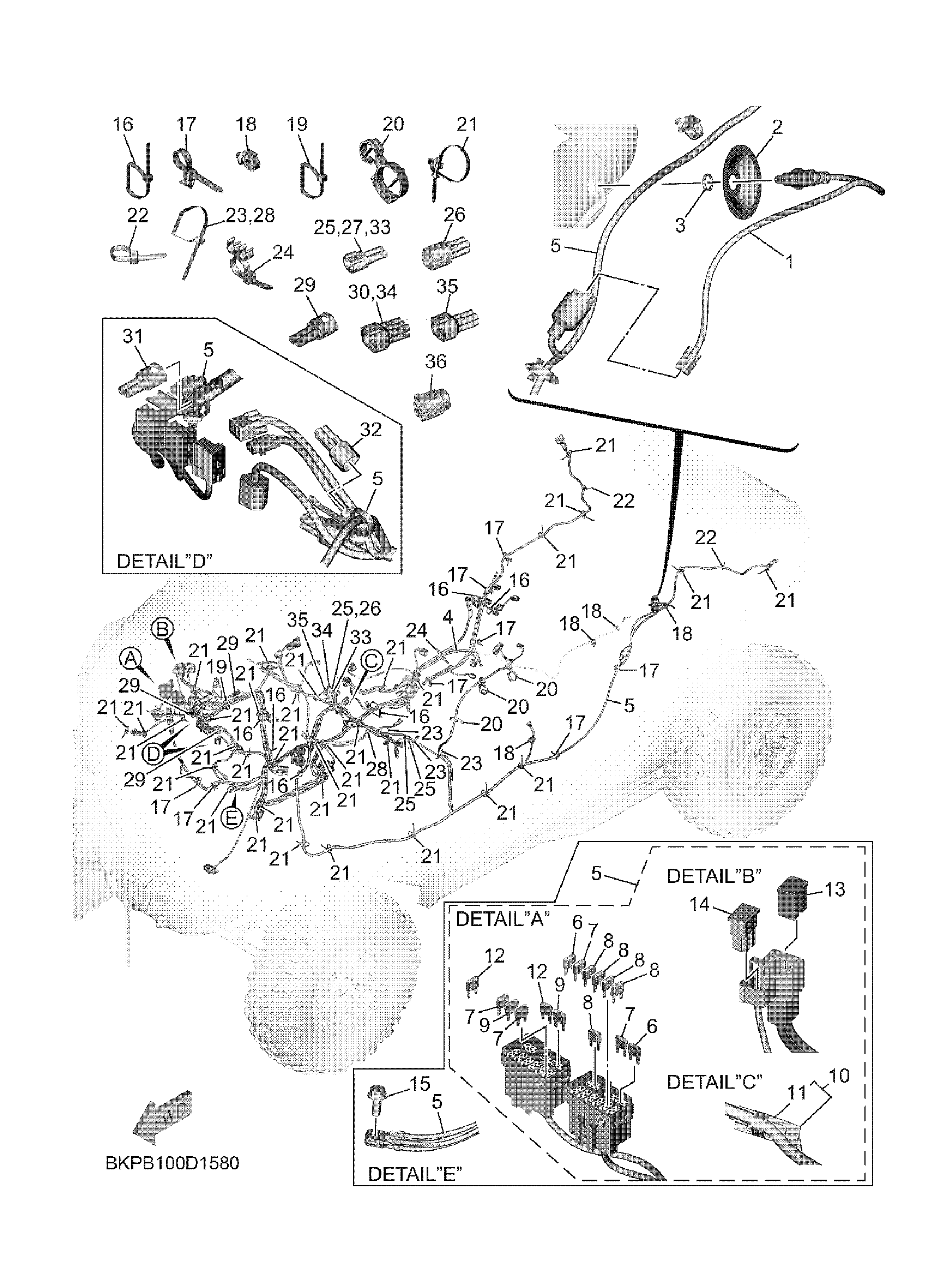

Yamaha YXE10WRATG (WOLVERINE RMAX2 1000 R SPEC) BKPB 2026 ELECTRICAL 3 Diagram
#
1
SENSOR, OXYGEN
1WS-8592A-10-00
$224.99
2
PLATE
B4J-E4255-00-00
$2.12
3
GASKET
B4J-11198-00-00
$5.49
4
WIRE, MINUS LEAD
BKP-82116-00-00
Unavailable
5
WIRE HARNESS ASSY
BKP-82590-10-00
Unavailable
6
FUSE
5JJ-82151-60-00
$7.99
7
FUSE (15A)
67F-82151-50-00
Unavailable
8
FUSE (7.5A-BL)
5JJ-82151-00-00
$6.99
9
. FUSE (10A)
67F-82151-40-00
Unavailable
10
CIRCUIT BREAKER ASSY
5B4-82180-00-00
$43.99
11
THERMO SWITCH ASSY
5B4-82560-00-00
$56.99
12
FUSE
5JJ-82151-20-00
$7.99
13
FUSE
BDW-82151-D0-00
$10.49
14
FUSE (50A)
BMG-82151-B0-00
$2.65
15
BOLT, FLANGE
90105-06831-00
$2.29
16
CLAMP
90464-48800-00
Unavailable
17
CLAMP(2TV)
90464-10112-00
Unavailable
18
CLAMP
90464-12830-00
Unavailable
19
CLAMP
90464-51800-00
Unavailable
20
CLAMP
90464-36008-00
Unavailable
21
CLAMP
1NS-F1338-00-00
Unavailable
22
CLAMP(JN6)
90464-31827-00
Unavailable
23
CLAMP(JN6)
90464-40825-00
Unavailable
24
CLAMP
90464-10009-00
Unavailable
25
CONNECTOR
B4J-82378-10-00
Unavailable
26
CONNECTOR
1PW-82378-10-00
Unavailable
27
CONNECTOR
B5H-82378-00-00
Unavailable
28
CLAMP(JN6)
90464-40825-00
Unavailable
29
CONNECTOR
B4J-82378-20-00
Unavailable
30
CONNECTOR
BKP-82378-20-00
Unavailable
31
CONNECTOR
B4J-82378-10-00
Unavailable
32
CONNECTOR
8CR-82378-00-00
Unavailable
33
CONNECTOR
B5H-82378-00-00
Unavailable
34
CONNECTOR
BKP-82378-00-00
Unavailable
35
CONNECTOR
BKP-82378-30-00
Unavailable
36
CONNECTOR
BKP-82378-10-00
Unavailable
