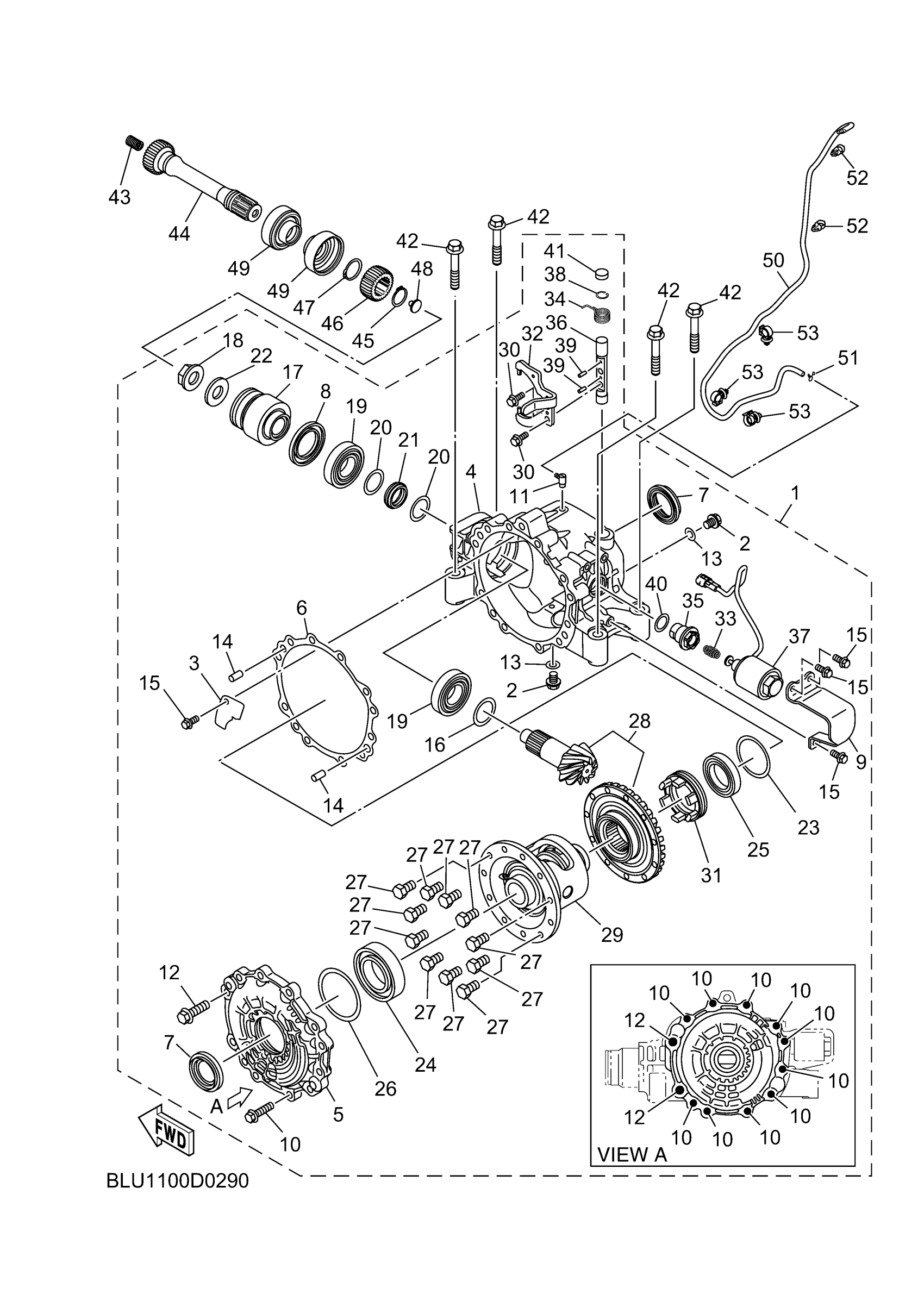

Yamaha YXE10WRATG (WOLVERINE RMAX2 1000 R SPEC) BKPB 2026 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CAS

BKP-G6101-00-00

Unavailable

2

BOLT

1XD-E2228-00-00

$4.94

3

PLATE, BAFFLE 1

BKP-E5123-00-00

Unavailable

4

HOUSING, DRIVE SHA

BKP-G6151-00-00

Unavailable

5

HOUSING, BEARING

BKP-G6152-00-00

Unavailable

6

GSKT., CASE

BKP-G631A-00-00

$48.99

7

OIL SEAL

BKP-E511B-00-00

$33.99

8

OIL SEAL

BKP-E511A-00-00

Unavailable

9

COVER

BKP-G7716-00-00

Unavailable

10

BOLT

BKP-E2157-00-00

Unavailable

11

. BREATHER

1CT-E5371-00-00

Unavailable

12

BOLT

BKP-E2228-00-00

Unavailable

13

GASKET

1CT-E1195-00-00

$6.99

14

ROLLER

BKP-E3362-00-00

Unavailable

15

BOLT, LOCK PLATE

BKP-G2478-00-00

Unavailable

16

SHIM

BKP-G5587-00-00

Unavailable

17

COUPLING

BKP-G6126-00-00

Unavailable

18

NUT

BKP-G2546-00-00

Unavailable

19

BEARING 1

BKP-E1428-00-00

Unavailable

20

WASHER

BKP-G2181-00-00

Unavailable

21

SPACER, EXPANSION

BKP-G6129-00-00

Unavailable

22

WASHER 2

BKP-G2182-00-00

Unavailable

23

SHIM

BKP-G5567-00-00

Unavailable

24

BEARING 2

BKP-E1429-00-00

Unavailable

25

BEARING 4

BKP-E142B-00-00

Unavailable

26

SHIM

BKP-G5577-00-00

Unavailable

27

BOLT

BKP-G6249-00-00

Unavailable

28

RING GEAR SET

BKP-G61A0-00-00

Unavailable

29

DIFFERENTIAL ASSY.

BKP-G6410-00-00

Unavailable

30

BOLT

BKP-G2544-00-00

Unavailable

31

SLIDER

BKP-G6253-00-00

Unavailable

32

FORK, SHIFT 2

BKP-G5682-00-00

Unavailable

33

SPRING

BKP-G384H-00-00

Unavailable

34

SPRING 1

BKP-G7489-00-00

Unavailable

35

ADAPTER

BKP-G6451-00-00

Unavailable

36

SHAFT

BKP-G6265-00-00

Unavailable

37

SOLENOID

BKP-H6110-00-00

Unavailable

38

CIRCLIP

BKP-E2842-00-00

Unavailable

39

PIN

BKP-G2379-00-00

Unavailable

40

PACKING

BKP-G6883-00-00

Unavailable

41

PLUG

BKP-G7339-00-00

Unavailable

42

BOLT, FLANGE

95812-12070-00

Unavailable

43

SPRING, COMPRESSION (400)

90501-20361-00

Unavailable

44

SHAFT, DRIVE

B4J-G6172-00-00

Unavailable

45

CIRCLIP(8CJ)

93410-27080-00

Unavailable

46

COUPLING

BG4-46126-00-00

Unavailable

47

CIRCLIP(3VD)

93440-31172-00

Unavailable

48

DAMPER

5KM-46559-00-00

Unavailable

49

SEAL 2

BG4-46137-00-00

Unavailable

50

HOSE (L1110)

90445-07050-00

Unavailable

51

CLIP (1J7)

90467-07029-00

Unavailable

52

CLAMP

90464-12830-00

Unavailable

53

CLAMP

90464-12830-00

Unavailable
