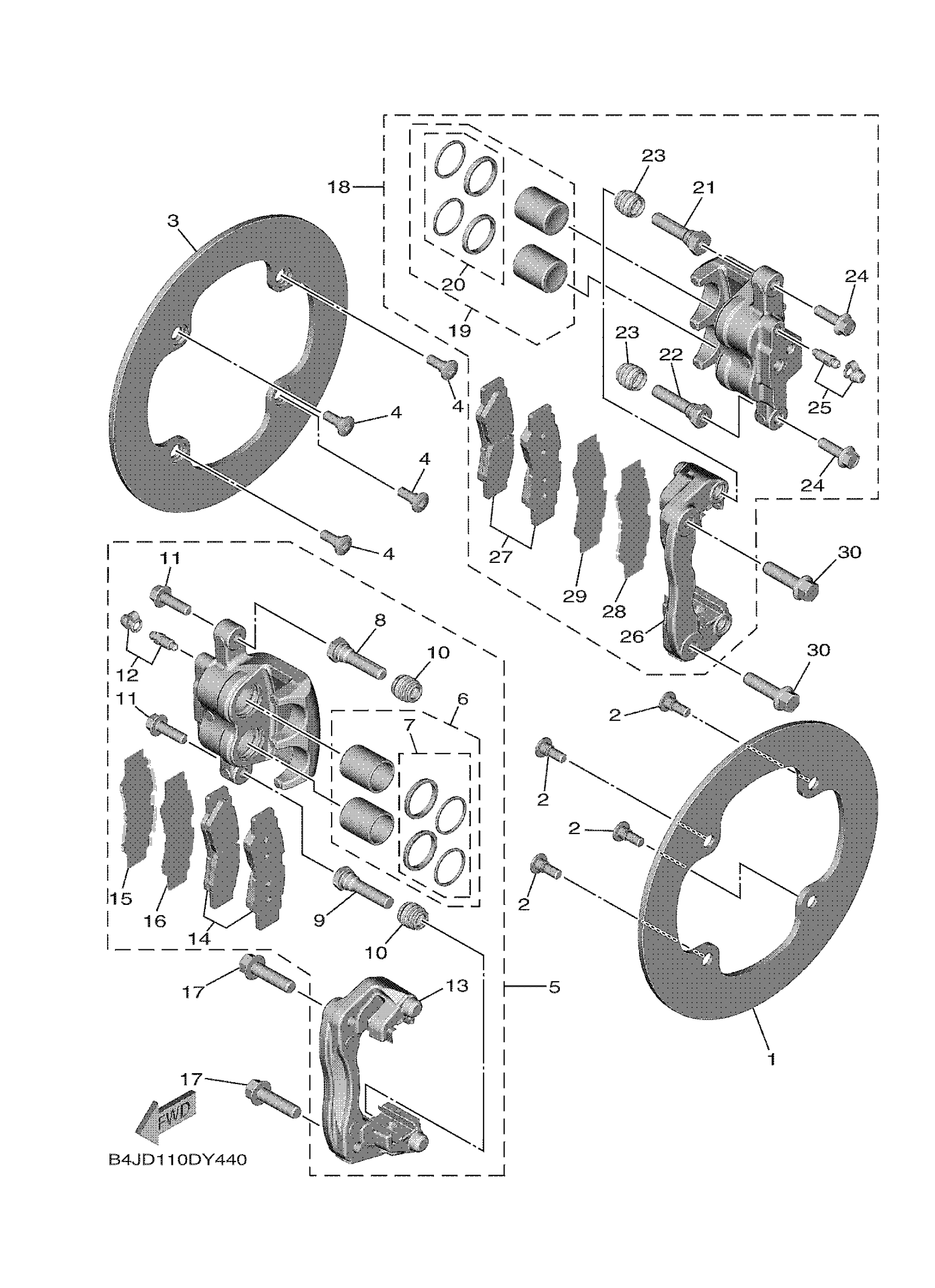

Yamaha YXE10WRARW (WOLVERINE RMAX2 R SPEC) D263 2024 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

2

BOLT

90109-08077-00

$8.49

3

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

4

BOLT

90109-08077-00

$8.49

5

CALIPER ASSY, REAR 1

B4J-2580V-00-00

$322.99

6

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

7

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$4.52

11

BOLT, FITTING

2HC-25833-00-00

$1.98

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

BRACKET, SUPPORT

2HC-25921-00-00

$96.99

14

BRAKE PAD KIT 2

2HC-25806-00-00

$48.99

15

SHIM, CALIPER

B4J-25827-00-00

Unavailable

16

SHIM, CALIPER

B4J-25828-00-00

Unavailable

17

BOLT, FLANGE

90105-10405-00

Unavailable

18

CALIPER ASSY, REAR 2

B4J-2580W-00-00

Unavailable

19

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

20

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

21

BOLT

2HC-25926-00-00

Unavailable

22

BOLT

2HC-25926-10-00

Unavailable

23

BOOT, CALIPER

2HC-25917-00-00

$4.52

24

BOLT, FITTING

2HC-25833-00-00

$1.98

25

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

26

BRACKET, SUPPORT

2HC-25921-00-00

$96.99

27

BRAKE PAD KIT 2

2HC-25806-00-00

$48.99

28

SHIM, CALIPER

B4J-25827-00-00

Unavailable

29

SHIM, CALIPER

B4J-25828-00-00

Unavailable

30

BOLT, FLANGE

90105-10405-00

Unavailable
