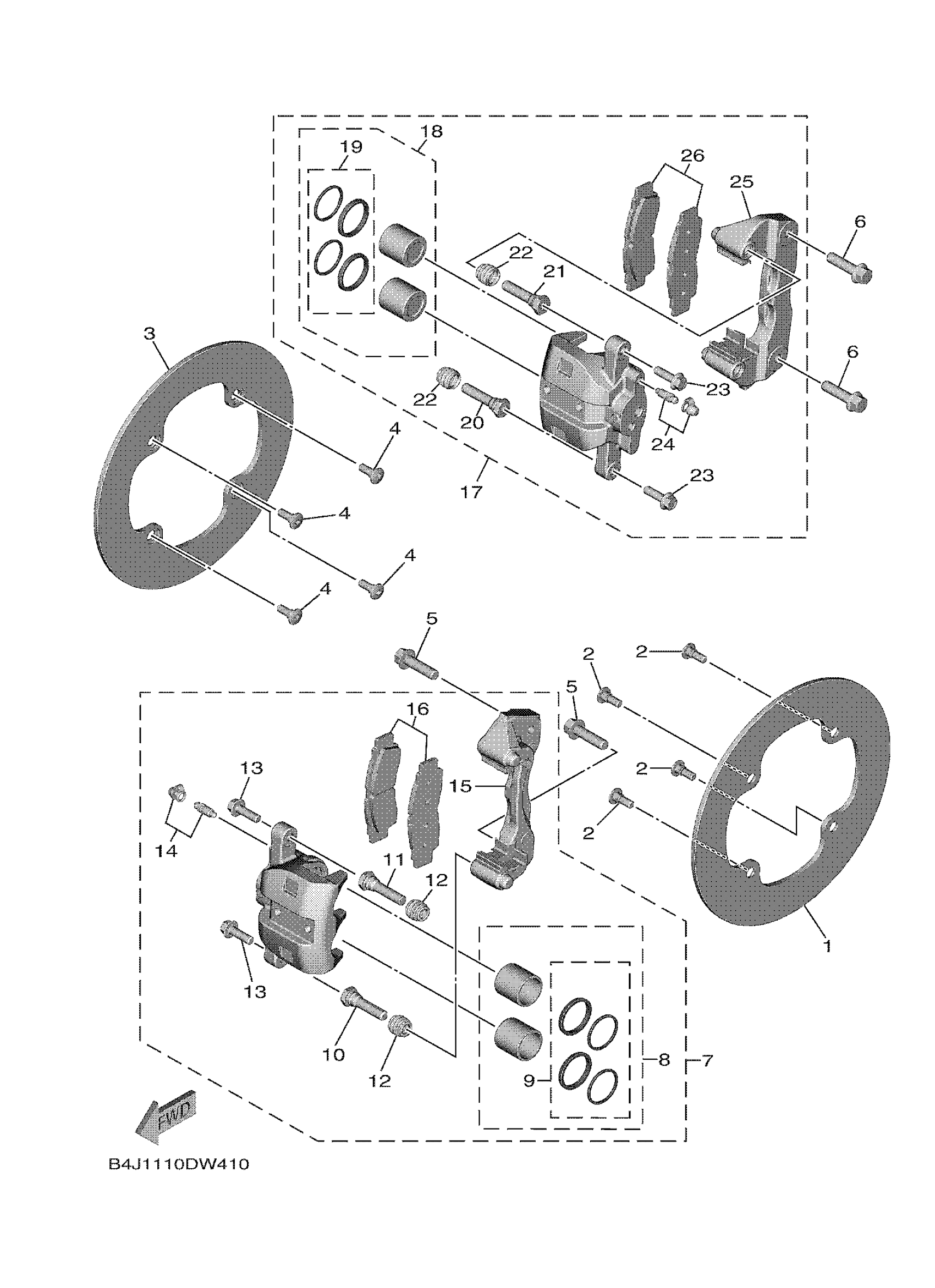

Yamaha YXE10WRARW (WOLVERINE RMAX2 R SPEC) D263 2024 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$62.99

2

BOLT

90109-08077-00

$8.49

3

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$62.99

4

BOLT

90109-08077-00

$8.49

5

BOLT, FLANGE

90105-10405-00

$5.60

6

BOLT, FLANGE

90105-10405-00

$5.60

7

CALIPER ASSY (LEFT)

2HC-2580T-00-00

$480.99

8

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

9

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

10

BOLT

2HC-25926-00-00

Unavailable

11

BOLT

2HC-25926-10-00

Unavailable

12

BOOT, CALIPER

2HC-25917-00-00

$4.52

13

BOLT, FITTING

2HC-25833-00-00

$1.98

14

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

15

BRACKET, CALIPER

2HC-25819-00-00

$111.99

16

BRAKE PAD KIT

2HC-25805-00-00

Unavailable

17

CALIPER ASSY (RIGHT)

2HC-2580U-00-00

Unavailable

18

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

19

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

20

BOLT

2HC-25926-00-00

Unavailable

21

BOLT

2HC-25926-10-00

Unavailable

22

BOOT, CALIPER

2HC-25917-00-00

$4.52

23

BOLT, FITTING

2HC-25833-00-00

$1.98

24

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

25

BRACKET, CALIPER

2HC-25819-00-00

$111.99

26

BRAKE PAD KIT

2HC-25805-00-00

Unavailable
