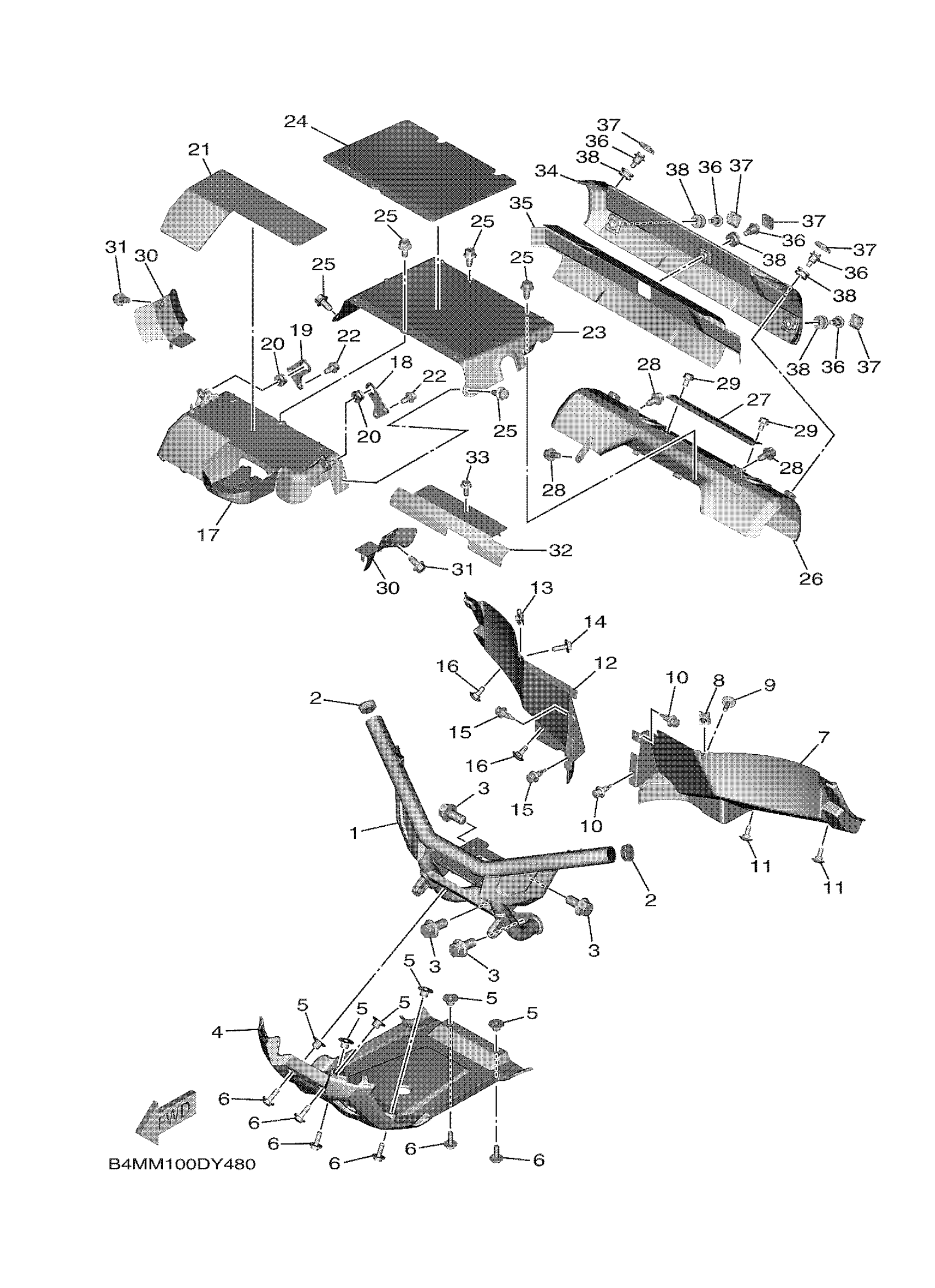

Yamaha YXE10WRAPL (WOLVERINE RMAX2 RSPEC) B4MM 2023 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

B4J-F845N-12-00

$100.99

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$6.99

3

BOLT, FLANGE

95812-12025-00

$9.49

4

COVER, UNDER

B4J-F8385-01-00

$68.99

5

COLLAR (4N0)

90387-071E0-00

$7.49

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

7

GUARD 1

BG4-F2361-01-00

$18.99

8

NUT, SPRING

90183-062A1-00

$1.96

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

11

BOLT

90109-06334-00

$2.60

12

GUARD 2

BG4-F2362-01-00

$26.99

13

NUT, SPRING

90183-062A1-00

$1.96

14

BOLT, WITH WASHER

90119-06226-00

$8.49

15

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

16

BOLT

90109-06334-00

$2.60

17

INSULATOR, HEAT

B4J-F2898-10-00

Unavailable

18

STAY, 4

B4J-F846W-00-00

Unavailable

19

STAY 5

B4J-F846X-00-00

Unavailable

20

GROMMET

90480-18019-00

Unavailable

21

DAMPER 1

B4J-F8415-00-00

Unavailable

22

BOLT, FLANGE

90105-08867-00

Unavailable

23

SHIELD, HEAT

B4J-F3892-02-00

Unavailable

24

DAMPER 3

B4J-F8425-00-00

Unavailable

25

BOLT, FLANGE

90105-08867-00

Unavailable

26

INSULATOR, MOUNTIN

B4J-F2891-11-00

Unavailable

27

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

28

BOLT, FLANGE

90105-08867-00

Unavailable

29

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

30

PROTECTOR 1

BAR-F2825-00-00

Unavailable

31

BOLT, FLANGE

90105-08867-00

Unavailable

32

PROTECTOR 1

B4J-F2825-02-00

Unavailable

33

BOLT, FLANGE

90105-06831-00

Unavailable

34

PROTECTOR, MUFFLER

BKP-F194H-00-00

Unavailable

35

SHEET, INSULATOR

B4J-HA7E0-00-00

Unavailable

36

BOLT

90109-06214-00

Unavailable

37

CAP

2MB-F143A-00-00

Unavailable

38

GROMMET

90480-12025-00

Unavailable
