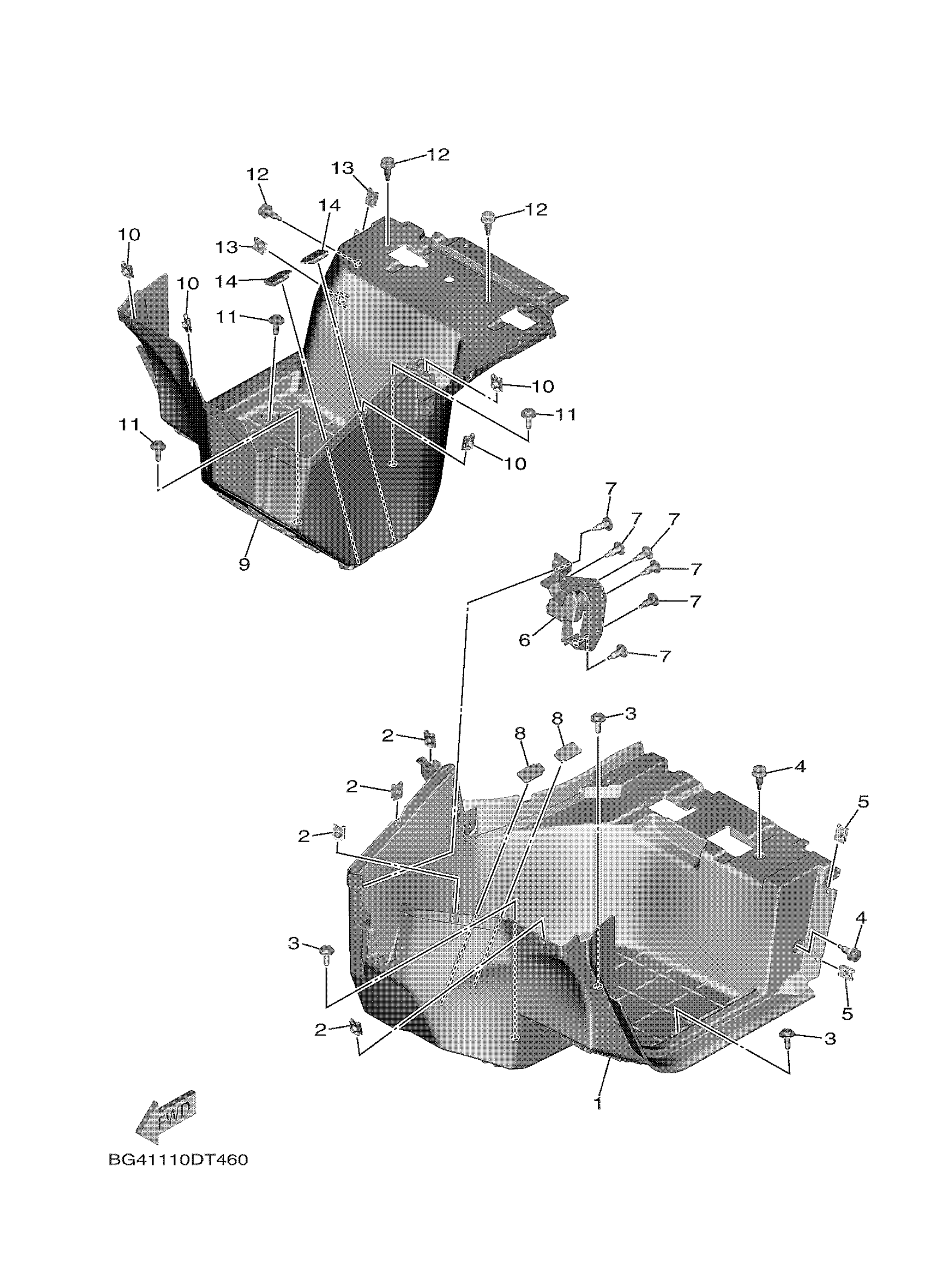

Yamaha YXE10WPZMG (WOLVERINE RMAX2 SE) B4M1 2021 STAND FOOTREST Diagram

#

Description

Price

1

FOOTREST 1

BG4-F7411-00-00

$116.62

2

NUT, SPRING

90183-062A1-00

$1.75

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.18

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

NUT, SPRING

90183-062A1-00

$1.75

6

COVER, DUST

BG4-F7286-00-00

$7.90

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

PLUG, HOLE

BG4-F312G-00-00

Unavailable

9

FOOTREST 2

BG4-F7421-01-00

$79.43

10

NUT, SPRING

90183-062A1-00

$1.75

11

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.18

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

NUT, SPRING

90183-062A1-00

$1.75

14

PLUG, HOLE

BG4-F312G-00-00

Unavailable
