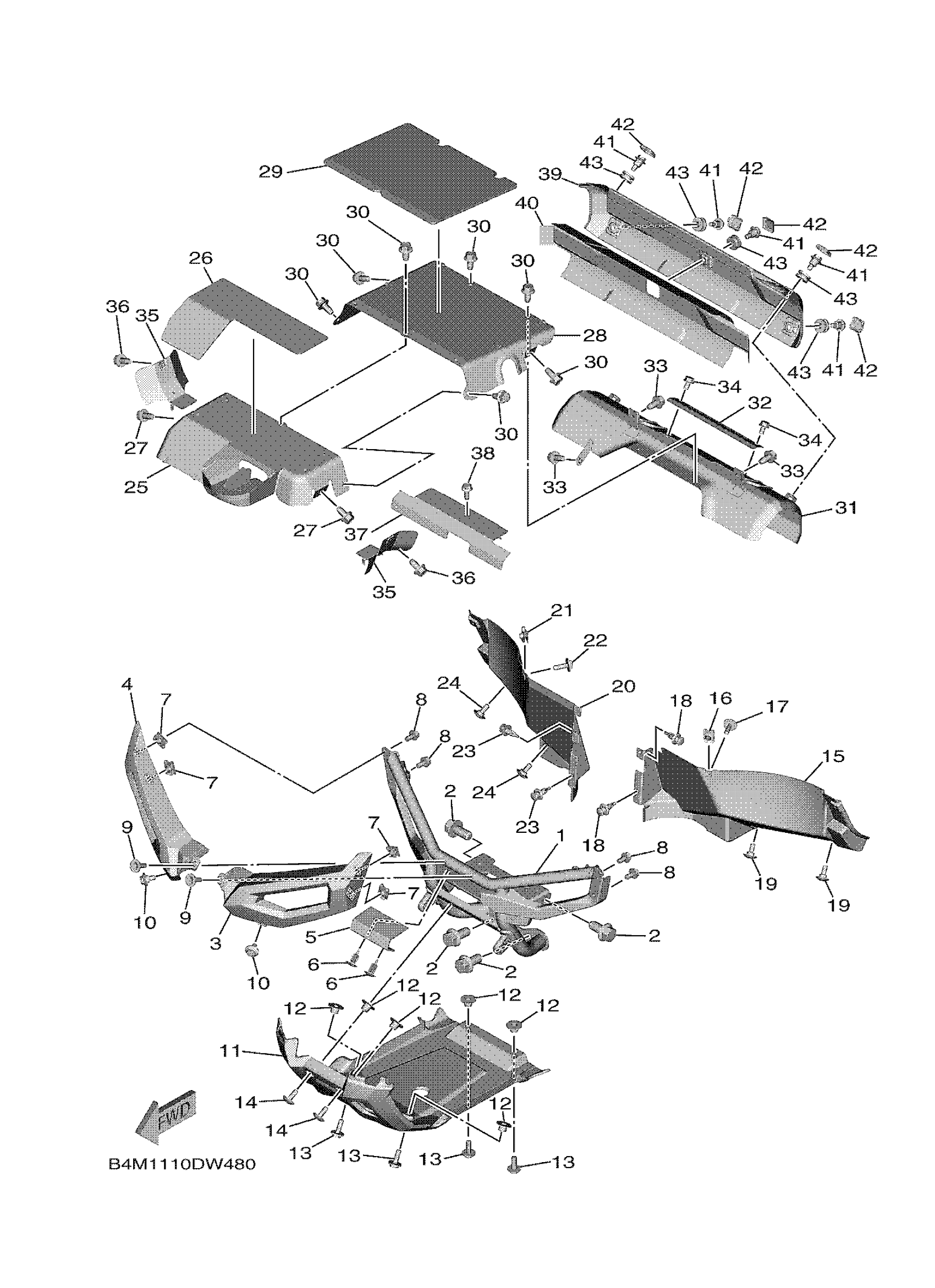

Yamaha YXE10WPZMG (WOLVERINE RMAX2 SE) B4M1 2021 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

B4J-F845N-02-00

$264.48

2

BOLT, FLANGE

95812-12025-00

$6.17

3

COVER 1

B4J-F842M-00-00

Unavailable

4

COVER 2

B4J-F842N-00-00

$15.80

5

COVER, FRONT

B4J-F286H-10-00

$3.90

6

RIVET(81E)

90269-05055-00

$6.54

7

NUT, SPRING

90183-062A1-00

$1.75

8

BOLT, FLANGE

95817-06012-00

$1.40

9

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

10

BOLT

90109-06202-00

$2.46

11

COVER, UNDER

B4J-F8385-01-00

$53.88

12

COLLAR (4N0)

90387-071E0-00

$5.73

13

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

14

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

15

GUARD 1

BG4-F2361-01-00

$15.26

16

NUT, SPRING

90183-062A1-00

$1.75

17

BOLT, WITH WASHER

90119-06226-00

Unavailable

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

19

BOLT

90109-06334-00

Unavailable

20

GUARD 2

BG4-F2362-01-00

Unavailable

21

NUT, SPRING

90183-062A1-00

$1.75

22

BOLT, WITH WASHER

90119-06226-00

Unavailable

23

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

24

BOLT

90109-06334-00

Unavailable

25

INSULATOR, HEAT

B4J-F2898-04-00

Unavailable

26

DAMPER 1

B4J-F8415-00-00

Unavailable

27

BOLT, FLANGE

90105-08867-00

Unavailable

28

SHIELD, HEAT

B4J-F3892-02-00

Unavailable

29

DAMPER 3

B4J-F8425-00-00

Unavailable

30

BOLT, FLANGE

90105-08867-00

Unavailable

31

INSULATOR, MOUNTIN

B4J-F2891-01-00

Unavailable

32

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

33

BOLT, FLANGE

90105-08867-00

Unavailable

34

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

35

PROTECTOR 1

BAR-F2825-00-00

Unavailable

36

BOLT, FLANGE

90105-08867-00

Unavailable

37

PROTECTOR 1

B4J-F2825-02-00

Unavailable

38

BOLT, FLANGE

90105-06831-00

Unavailable

39

PROTECTOR, MUFFLER

B4J-F194H-03-00

Unavailable

40

SHEET, INSULATOR

B4J-HA7E0-00-00

Unavailable

41

BOLT

90109-06214-00

Unavailable

42

CAP

2MB-F143A-00-00

Unavailable

43

GROMMET

90480-12025-00

Unavailable
