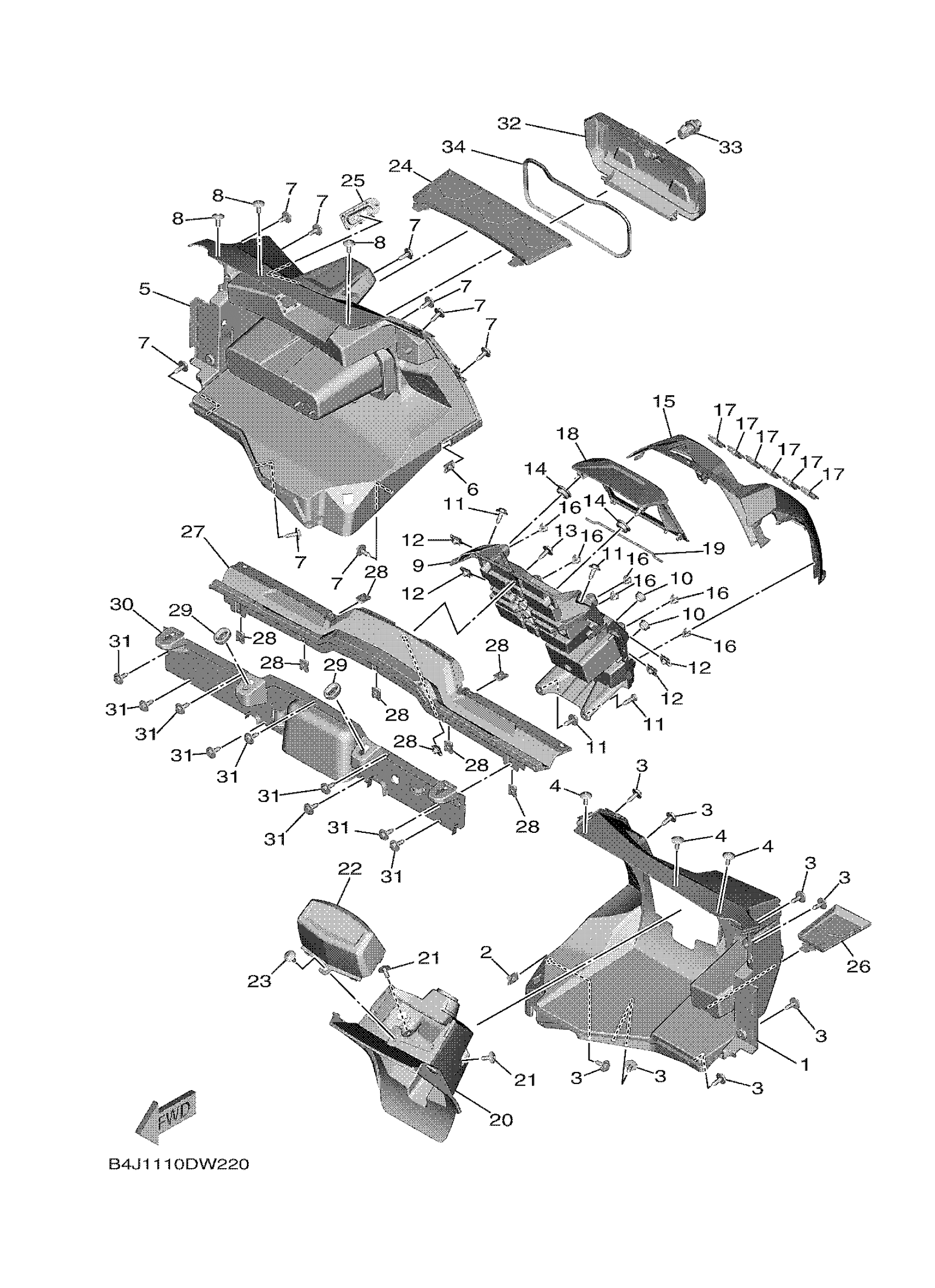

Yamaha YXE10WPZMG (WOLVERINE RMAX2 SE) B4M1 2021 FRONT FENDER 1 Diagram

#

Description
Price

1

PANEL, DASH 1

B4J-K7781-00-00

Unavailable

2

NUT, SPRING

90183-062A1-00

$1.96

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

5

PANEL, DASH 2

B4J-K7782-00-00

$59.99

6

NUT, SPRING

90183-062A1-00

$1.96

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

9

PANEL, DASH 3

B4J-K7783-00-00

$31.99

10

PLUG

90338-21004-00

$7.49

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

NUT, SPRING

90183-062A1-00

$1.96

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

GROMMET(4DN)

90480-01558-00

$4.19

15

TRIM, INSTRUMENT PANEL 2

B4J-K7738-01-00

$126.99

16

CLIP

90468-040A0-00

Unavailable

17

PLUG, HOLE

BG4-F312G-00-00

Unavailable

18

LID

B4J-F6214-03-00

Unavailable

19

PIN, HINGE

B4J-F177K-00-00

Unavailable

20

COVER, ADJUST

B4J-F387G-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

22

COVER, METER

B4J-H3559-00-00

Unavailable

23

BOLT

90109-06334-00

Unavailable

24

MAT 1

B4J-F7483-00-00

Unavailable

25

PLATE, RUBBER 1

B4J-F8483-00-00

Unavailable

26

MAT 2

B4J-F7484-00-00

Unavailable

27

COVER, FRONT

B4J-F2865-00-00

Unavailable

28

NUT, SPRING

90183-062A1-00

$1.96

29

GROMMET

90480-01822-00

Unavailable

30

PANEL, ACCESSORY

B4J-F839R-00-00

Unavailable

31

BOLT, WITH WASHER

90119-06226-00

$8.49

32

LID

B4J-F160F-00-00

Unavailable

33

LATCH ASSY 1

B4J-F17N0-01-00

Unavailable

34

SEAL 1

B4J-F1575-00-00

Unavailable
