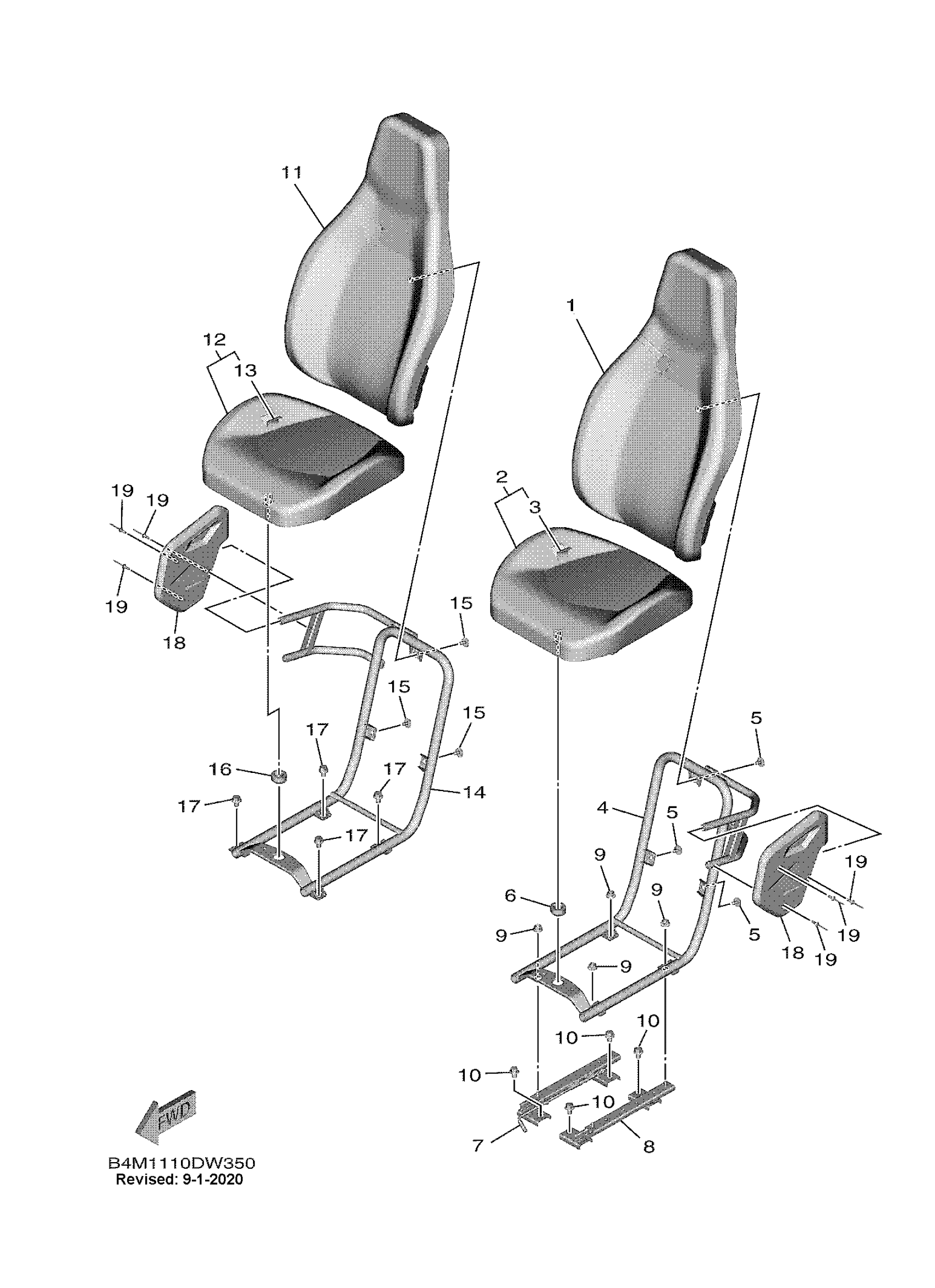

Yamaha YXE10WPLML (WOLVERINE RMAX 2 LE) B4M9 2021 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

B4J-F4790-11-00

$316.15

2

SEAT ASSY 2

B4J-K8420-10-00

$178.87

3

COVER, SEAT BACK

B4J-F4791-10-00

$264.47

4

FRAME, SEAT 1

B4J-F473C-02-00

$123.01

5

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

6

GROMMET

1XD-F4742-00-00

Unavailable

7

ADJUSTER ASSY

B4J-F7270-01-00

$46.40

8

ADJUSTER ASSY

B4J-F7260-01-00

$36.10

9

NUT, SELF-LOCKING

95602-08200-00

$2.65

10

BOLT, FLANGE

95817-08012-00

$3.81

11

SEAT BACK ASSY

B4J-F4790-11-00

$316.15

12

SEAT ASSY 2

B4J-K8420-10-00

$178.87

13

COVER, SEAT BACK

B4J-F4791-10-00

$264.47

14

FRAME, SEAT 2

B4J-F473D-02-00

$131.59

15

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

16

GROMMET

1XD-F4742-00-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

$3.81

18

COVER

B4J-F117F-00-00

Unavailable

19

RIVET, BLIND(J50)

90267-49152-00

Unavailable
