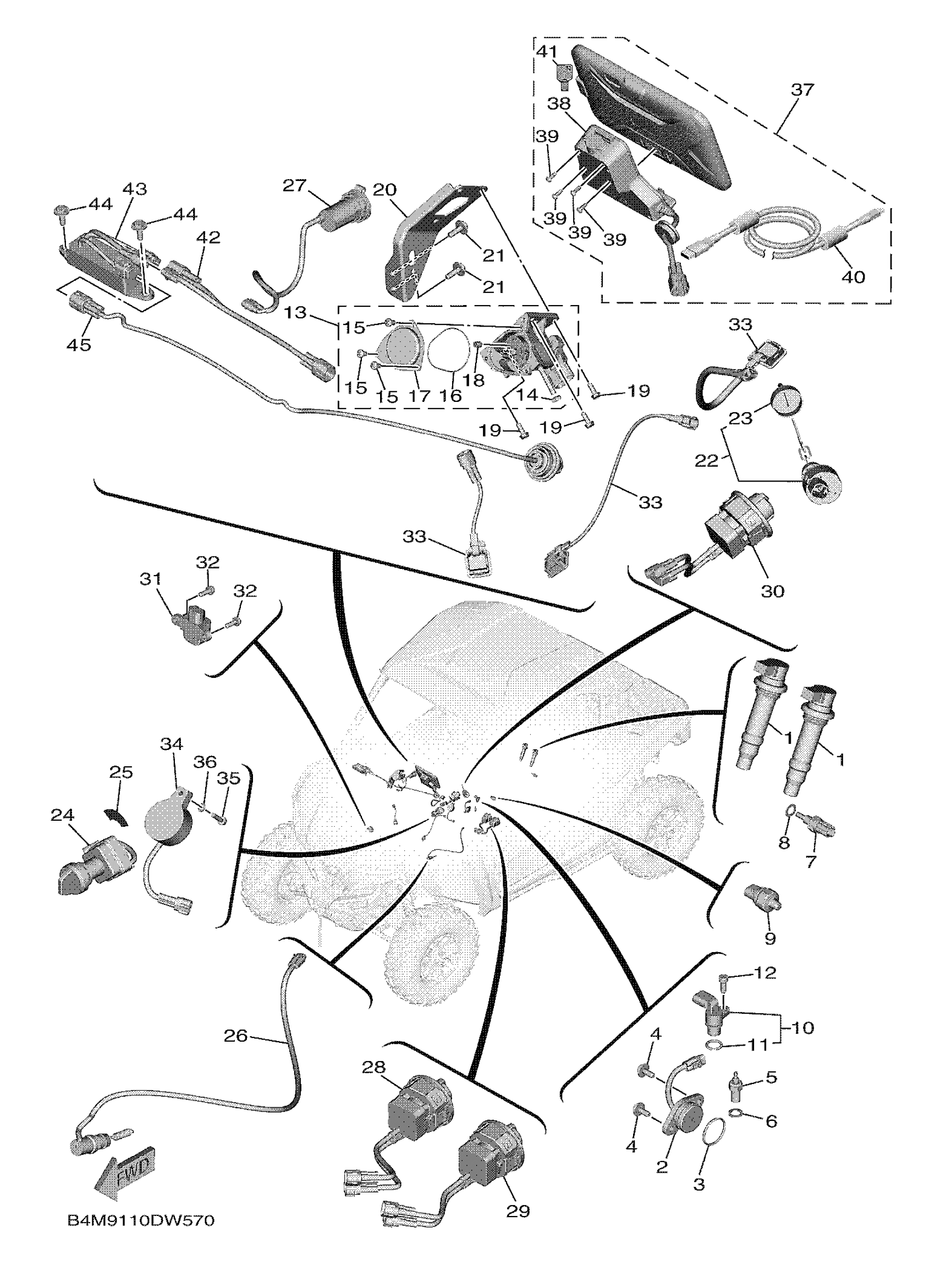

Yamaha YXE10WPLML (WOLVERINE RMAX 2 LE) B4M9 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WS-82310-00-00

$88.91

2

NEUTRAL SWITCH ASS

BG4-82540-02-00

Unavailable

3

O-RING (371)

93210-29196-00

$6.02

4

BOLT, WITH WASHER

90119-06137-00

$5.81

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

6

GASKET (1KH,1.0T)

90430-10148-00

$4.44

7

THERMO UNIT

52B-H3591-00-00

Unavailable

8

GASKET

90430-10004-00

$5.55

9

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

10

SENSOR, SPEED

1TP-83755-00-00

$62.98

11

O-RING

4D9-81168-00-00

$4.04

12

BOLT(3MA)

91312-06016-00

$4.57

13

SENSOR UNIT

BG4-8A410-01-00

Unavailable

14

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

15

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

16

O-RING

5LP-14147-00-00

Unavailable

17

COVER 1

5UG-14293-00-00

Unavailable

18

GUIDE, CABLE

1UY-14155-00-00

Unavailable

19

BOLT, SPECIAL

JW1-F3394-00-00

$0.83

20

BRKT, PIPE 1

B4J-F133K-00-00

Unavailable

21

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

22

MAIN SWITCH ASSY

1XD-H2510-11-00

Unavailable

23

CAP, KEY

5UG-H2579-00-00

Unavailable

24

KEY ASSY

BG4-8250A-00-00

Unavailable

25

LABEL

B4J-H2108-00-00

Unavailable

26

STOP SWITCH ASSY

B90-82530-01-00

Unavailable

27

TERMINAL COMP.

B4J-H254B-00-00

Unavailable

28

SWITCH, LAMP

B4J-82526-00-00

Unavailable

29

SWITCH, SELECT

B4J-87280-00-00

Unavailable

30

SWITCH, SELECT

B4J-87280-10-00

Unavailable

31

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

32

BOLT, SPECIAL

JW1-F3394-00-00

$0.83

33

AUXILIARY LIGHT AS

B4J-H5460-00-00

Unavailable

34

BUZZER

2MB-83383-00-00

Unavailable

35

BOLT(3JK)

97027-05020-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable

37

AUX. DISPLAY ASSY

B4J-H21H0-05-00

Unavailable

38

ADAPTER, INTERFACE

B4J-H5335-02-00

$392.56

39

SCREW, SPECIAL

B8K-H3358-01-00

Unavailable

40

CABLE, USB

B8K-H21E2-01-00

Unavailable

41

KEY

B4J-F5848-01-00

Unavailable

42

WIRE,LEAD

B4J-H2117-01-00

Unavailable

43

PLUG, USB

B4J-H21E1-04-00

Unavailable

44

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

45

CABLE, USB

B4J-H21E2-01-00

Unavailable
