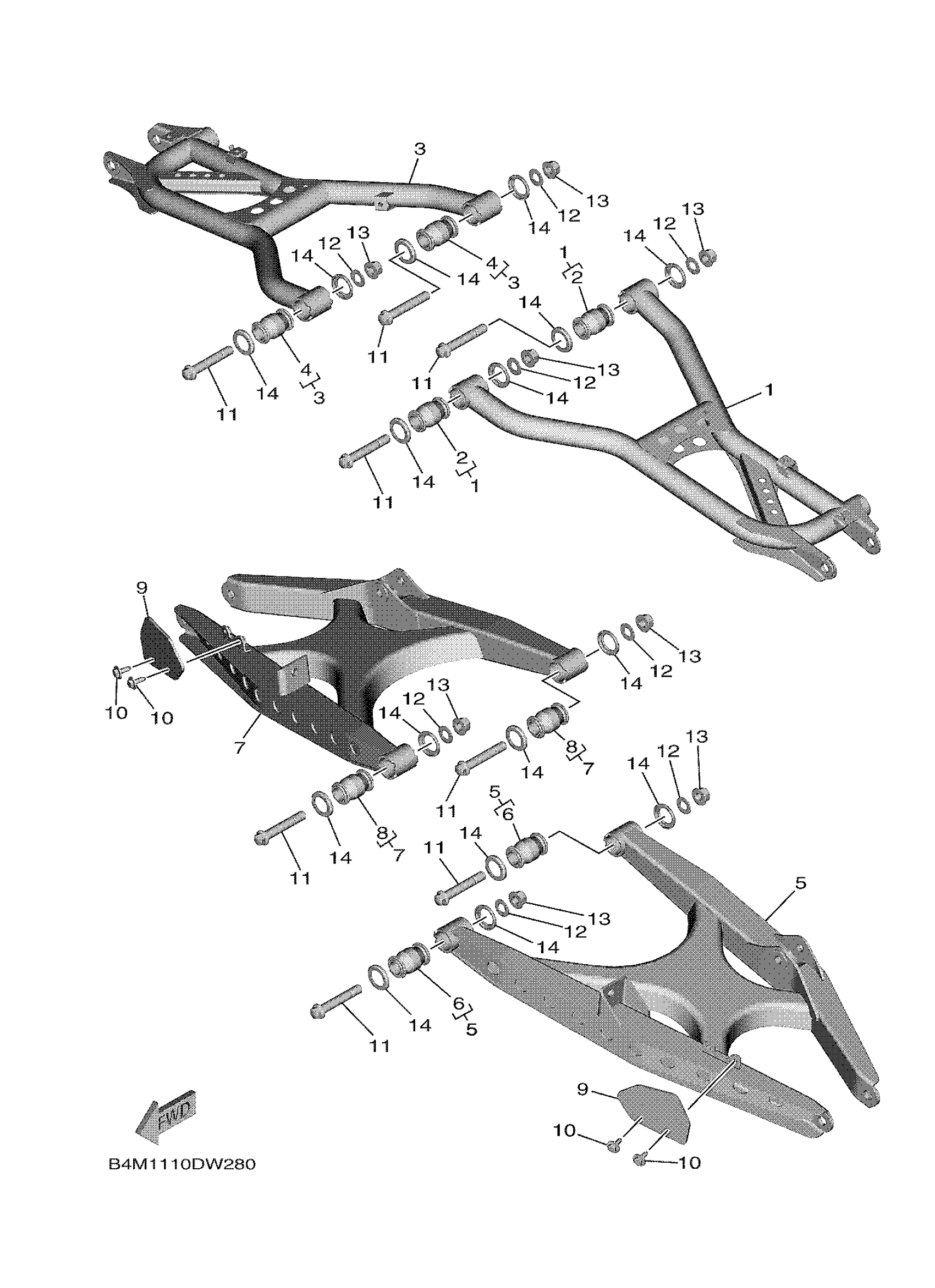

Yamaha YXE10WPAMW (WOLVERINE RMAX 2) B4M41 2021 REAR ARM Diagram

#

Description
Price

1

RR. ARM ASSY

B4M-F2102-03-00

$89.47

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. ARM ASSY

B4M-F2103-03-00

Unavailable

4

BUSH

B4J-F3526-01-00

Unavailable

5

REAR ARM ASS

B4M-F210M-03-00

$144.48

6

BUSH

B4J-F3526-01-00

Unavailable

7

REAR ARM ASS

B4M-F210N-03-00

$144.48

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$1.97

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

BOLT, FLANGE

90105-12095-00

$7.16

12

WASHER, PLATE

90201-12045-00

$4.81

13

NUT, SELF-LOCKING

90185-12002-00

$9.38

14

COVER, THRUST 1

B4J-F3517-00-00

$0.99
