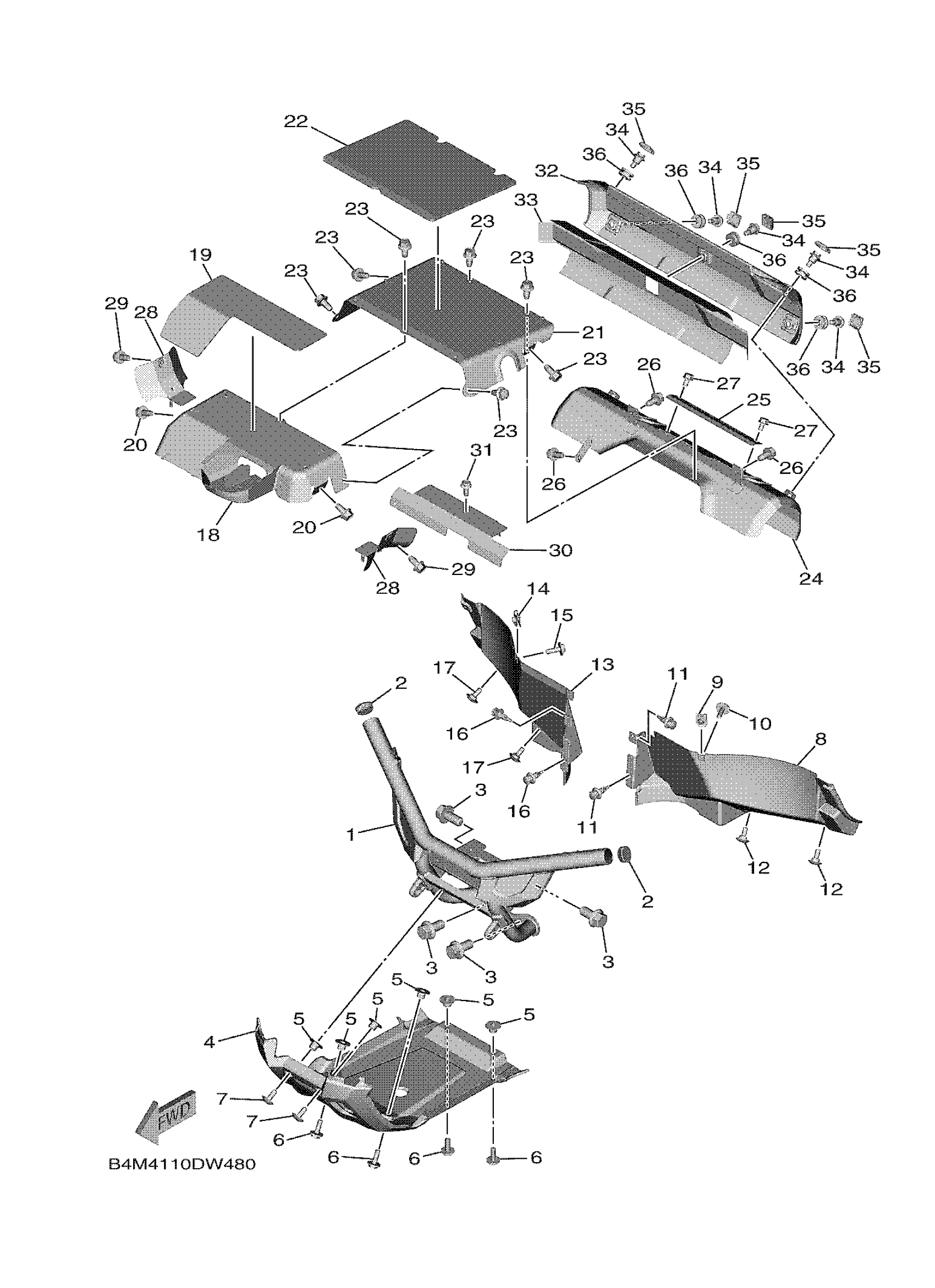

Yamaha YXE10WPAMW (WOLVERINE RMAX 2) B4M41 2021 GUARD Diagram
#
1
BAR, CARRY FRONT
B4J-F845N-12-00
$100.99
2
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
3
BOLT, FLANGE
95812-12025-00
$9.49
4
COVER, UNDER
B4J-F8385-01-00
$68.99
5
COLLAR (4N0)
90387-071E0-00
$7.49
6
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
8
GUARD 1
BG4-F2361-01-00
$18.99
9
NUT, SPRING
90183-062A1-00
$1.96
10
BOLT, WITH WASHER
90119-06226-00
$8.49
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
12
BOLT
90109-06334-00
$2.60
13
GUARD 2
BG4-F2362-01-00
$26.99
14
NUT, SPRING
90183-062A1-00
$1.96
15
BOLT, WITH WASHER
90119-06226-00
$8.49
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
BOLT
90109-06334-00
$2.60
18
INSULATOR, HEAT
B4J-F2898-04-00
Unavailable
19
DAMPER 1
B4J-F8415-00-00
Unavailable
20
BOLT, FLANGE
90105-08867-00
Unavailable
21
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
22
DAMPER 3
B4J-F8425-00-00
Unavailable
23
BOLT, FLANGE
90105-08867-00
Unavailable
24
INSULATOR, MOUNTIN
B4J-F2891-01-00
Unavailable
25
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
26
BOLT, FLANGE
90105-08867-00
Unavailable
27
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
28
PROTECTOR 1
BAR-F2825-00-00
Unavailable
29
BOLT, FLANGE
90105-08867-00
Unavailable
30
PROTECTOR 1
B4J-F2825-02-00
Unavailable
31
BOLT, FLANGE
90105-06831-00
Unavailable
32
PROTECTOR, MUFFLER
B4J-F194H-03-00
Unavailable
33
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
34
BOLT
90109-06214-00
Unavailable
35
CAP
2MB-F143A-00-00
Unavailable
36
GROMMET
90480-12025-00
Unavailable
