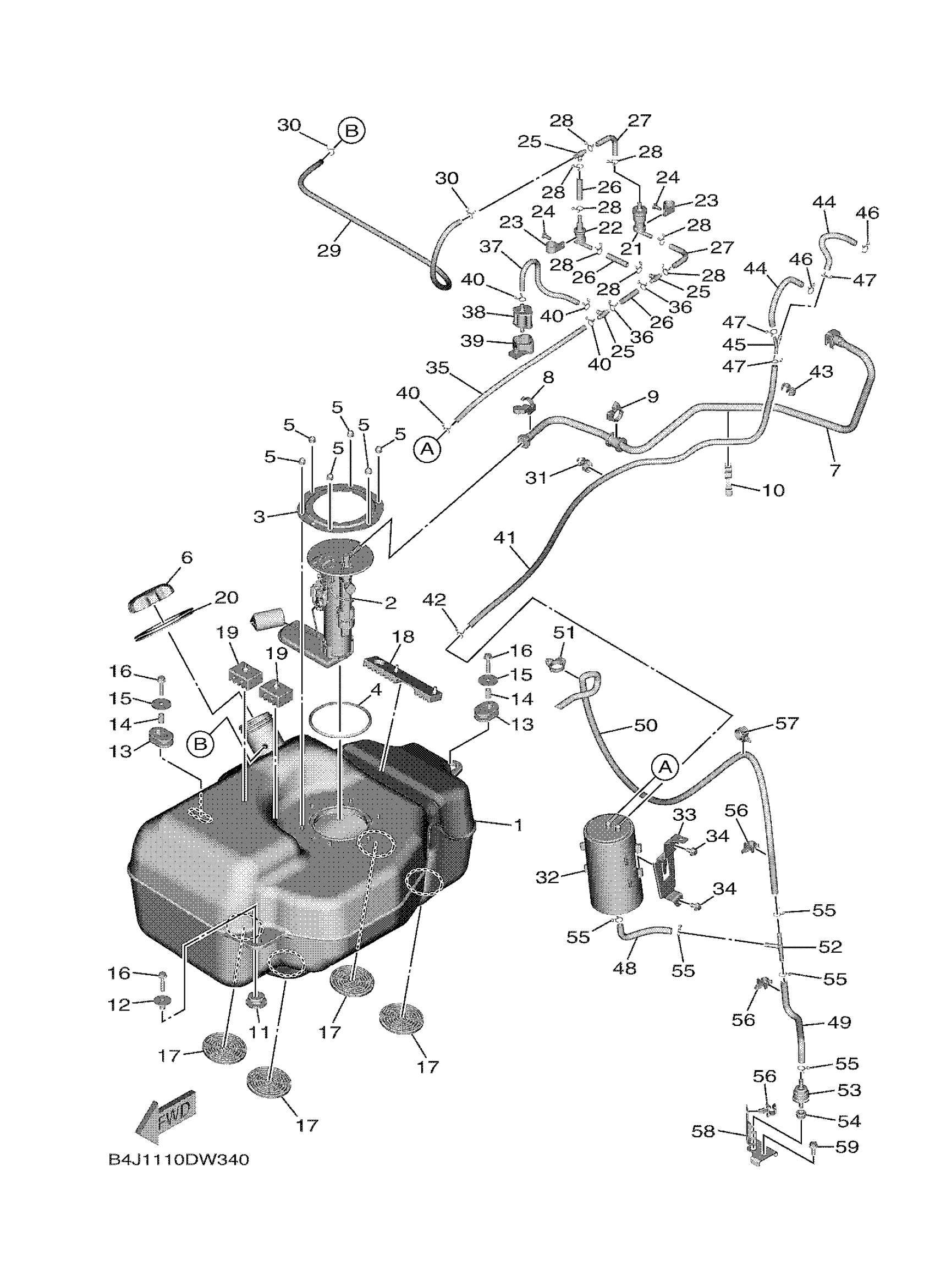

Yamaha YXE10WPAMW (WOLVERINE RMAX 2) B4M41 2021 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-01-00
Unavailable
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
6
CAP ASSY
BKP-24610-00-00
Unavailable
7
PIPE, FUEL 1
B4J-13971-00-00
Unavailable
10
CLAMP
90464-10009-00
Unavailable
16
BOLT, FLANGE
95817-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
22
ROLL OVER VALVE ASSY
3UH-24180-00-00
Unavailable
23
CLAMP
90464-15014-00
Unavailable
24
SCREW, BINDING
98907-05012-00
Unavailable
25
WAY 3
90413-06031-00
Unavailable
26
HOSE
90445-09832-00
Unavailable
27
TUBE
2HC-F4864-00-00
Unavailable
28
CLIP
90467-090A2-00
Unavailable
29
HOSE (L760)
90445-09130-00
Unavailable
30
CLIP
90467-090A2-00
Unavailable
32
CANISTER ASSY
7CC-F4170-02-00
Unavailable
33
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
34
BOLT, FLANGE
95812-06010-00
Unavailable
35
HOSE (L270)
90445-09129-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
HOSE 1
B4J-1243A-00-00
Unavailable
38
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
39
BAND 1
3B4-24398-00-00
Unavailable
40
CLIP
90467-090A2-00
Unavailable
41
HOSE (L960)
90445-10065-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CLAMP(6M7)
90464-09M31-00
Unavailable
44
HOSE (L130)
90445-10017-00
Unavailable
45
WAY 3 (73A)
90413-05013-00
Unavailable
46
CLIP
90467-100A1-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
48
PIPE 5
BG4-24315-00-00
Unavailable
49
PIPE 11
BG4-24322-00-00
Unavailable
50
HOSE (L1010)
90445-11100-00
Unavailable
52
WAY (70R)
90413-08012-00
Unavailable
53
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
54
GROMMET
90480-10003-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
CLAMP
90464-14M55-00
Unavailable
57
CLAMP
90464-16006-00
Unavailable
58
BRACKET 1
BG4-F148U-00-00
Unavailable
59
BOLT, FLANGE
90105-06831-00
Unavailable
