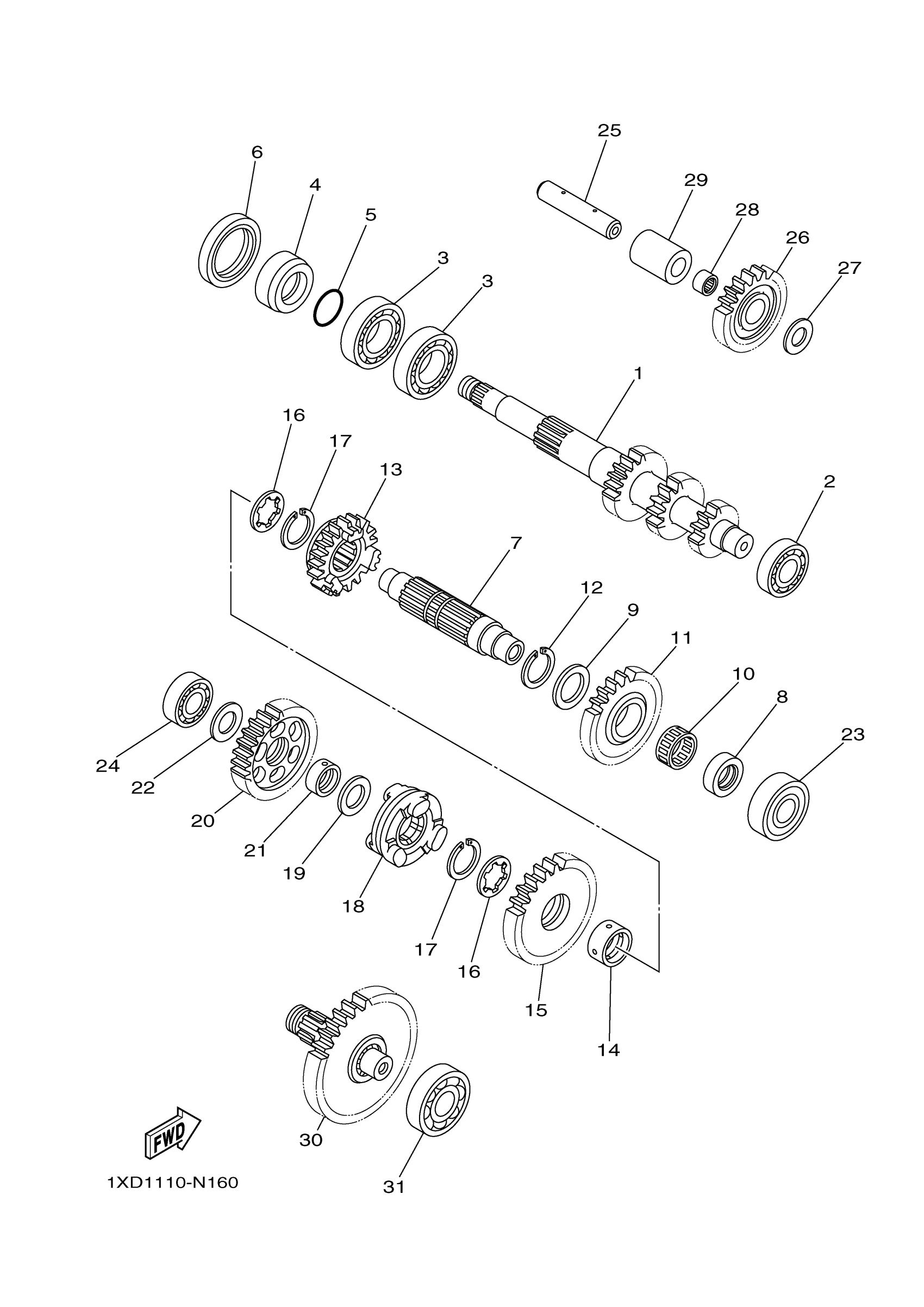

Yamaha YXC70VPXSG (VIKING VI EPS) BHEF 2025 TRANSMISSION Diagram
#
1
SHAFT, SECONDARY
1XD-17681-00-00
Unavailable
2
BEARING (5Y1)
93306-00426-00
$42.99
3
BEARING(55X)
93306-07801-00
$55.99
4
COLLAR
90387-26001-00
$40.99
5
O-RING
93210-26001-00
$5.60
6
OIL SEAL
93102-42004-00
$30.99
7
AXLE, DRIVE
3B4-17421-00-00
Unavailable
8
COLLAR
90387-22032-00
$15.99
9
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
10
BRG,CYL-CAL ROLLER 15G KY
93310-32590-00
$34.99
11
GEAR, REVERSE WHEEL 2 (28T)
3B4-17253-00-00
$113.99
12
CIRCLIP (4L0)
93440-25084-00
$5.60
13
GEAR, MIDDLE DRIVE (21T)
3B4-17582-00-00
Unavailable
14
COLLAR(1UX)
90387-250R3-00
$30.99
15
GEAR, LOW WHEEL (31T)
3B4-17233-00-00
$138.99
16
WASHER, CLAW
90214-22007-00
Unavailable
17
CIRCLIP (4L0)
93440-25084-00
$5.60
18
CLUTCH, DOG
5B4-17285-00-00
Unavailable
19
WASHER, PLATE
90201-20028-00
Unavailable
20
GEAR, HIGH WHEEL (30T)
1XD-17223-00-00
Unavailable
21
COLLAR
90387-20021-00
Unavailable
22
WASHER, PLATE(XA1)
90201-170U8-00
Unavailable
23
BEARING
93306-20483-00
Unavailable
24
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
25
AXLE, IDLE
3B4-17432-01-00
Unavailable
26
GEAR, REVERSE WHEEL 1
16B-17243-00-00
Unavailable
27
WASHER, PLATE
90201-15029-00
Unavailable
28
BEARING
93310-31576-00
Unavailable
29
COLLAR
90387-15018-00
Unavailable
30
DRIVE PINION ASSY (41T)
3B4-17520-00-00
Unavailable
31
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
