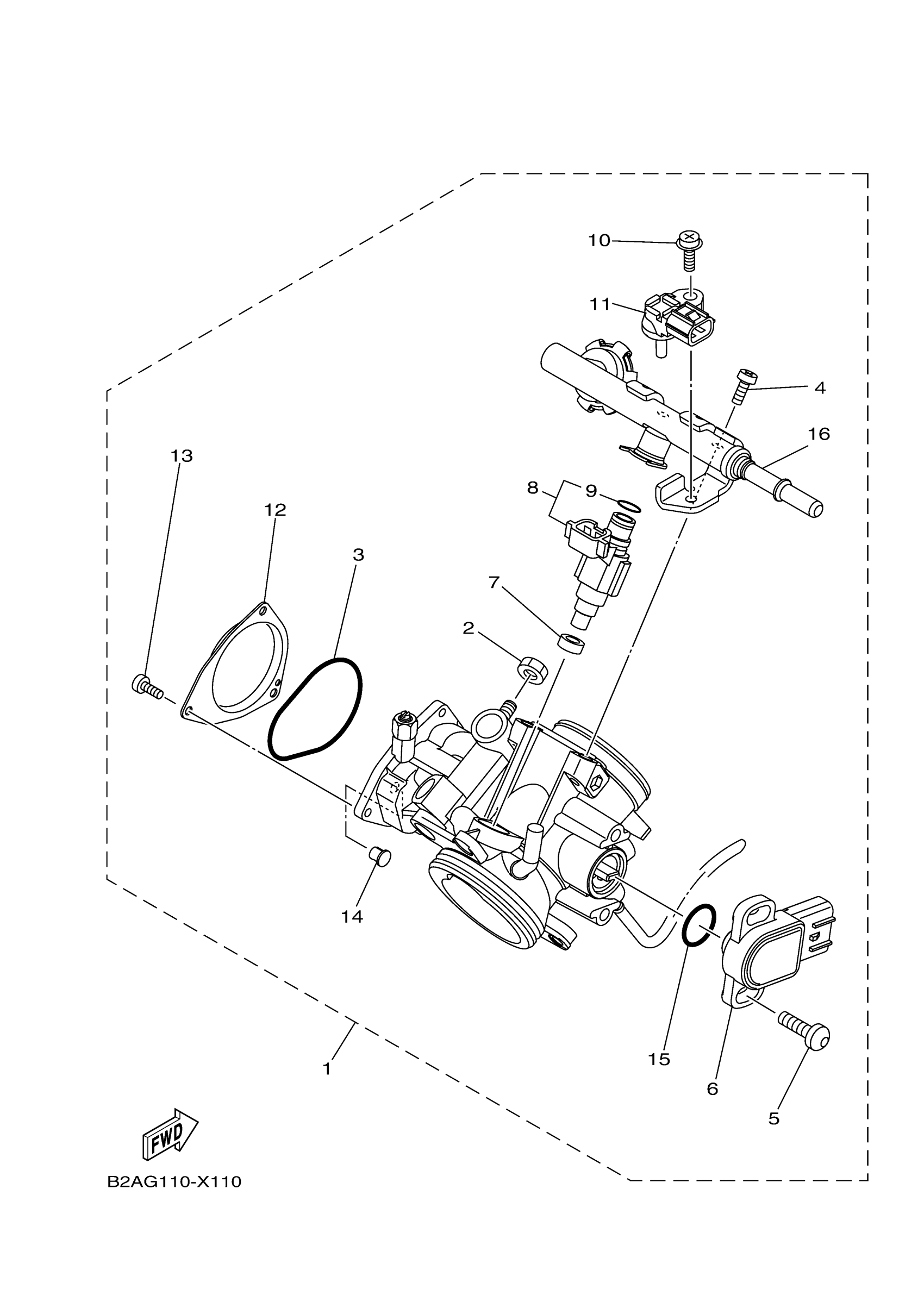

Yamaha YXC70VPXSG (VIKING VI EPS) BHEF 2025 THROTTLE BODY ASSY 1 Diagram

Description

Price

THROTTLE BODY ASSY

1XD-13750-02-00

$774.99

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

O-RING

5LP-14147-00-00

$9.49

SCREW, PAN

98517-06012-00

$2.93

SCREW

8CC-14216-10-00

$6.68

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

GASKET, MANIFOLD

8FP-13556-00-00

$11.73

INJECTOR

1XD-13761-00-00

$135.27

O-RING

1XD-14147-00-00

$11.77

SCREW

2C0-14216-00-00

$2.94

SENSOR, PRESSURE

5S7-82380-00-00

$155.03

COVER 1

5UG-14293-00-00

$9.69

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.94

GUIDE, CABLE

1UY-14155-00-00

$15.19

O-RING

5YP-14562-00-00

$6.17

DELIVERY PIPE ASSY 1

1XD-13160-00-00

Unavailable
