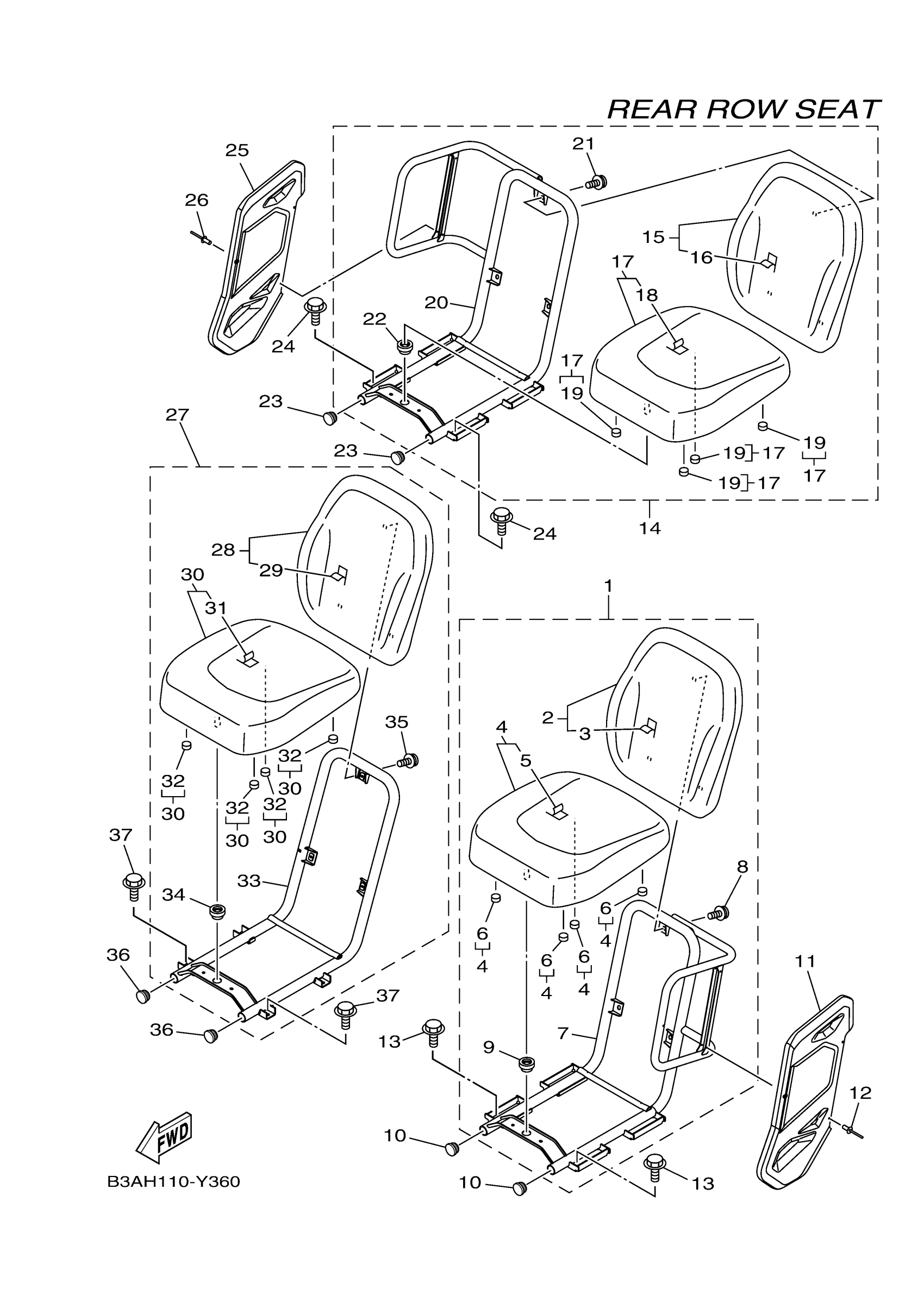

Yamaha YXC70VPXRG (VIKING VI EPS) BHEC 2024 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$256.18

2

SEAT BACK ASY

1XD-F4790-01-00

$458.81

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

6

DAMPER, SEAT

1XD-F4723-00-00

$1.43

7

FRAME, SEAT 1

1XD-F473C-01-00

$285.88

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

Unavailable

10

PLUG

2HC-F2417-00-00

$1.91

11

COVER,2

1XD-F475X-01-00

$30.12

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

BOLT, FLANGE

95817-08012-00

$3.81

14

SEAT 2

2PG-F7499-02-00

$300.21

15

SEAT BACK ASY

1XD-F4790-01-00

$458.81

16

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

17

SEAT ASSY

1XD-F4700-01-00

Unavailable

18

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

19

DAMPER, SEAT

1XD-F4723-00-00

$1.43

20

FRAME, SEAT 2

1XD-F473D-01-00

$246.18

21

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

22

GROMMET

1XD-F4742-00-00

Unavailable

23

PLUG

2HC-F2417-00-00

$1.91

24

BOLT, FLANGE

95817-08012-00

$3.81

25

COVER,2

1XD-F475X-01-00

$30.12

26

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

27

SEAT 3

2PG-F749A-02-00

$315.40

28

SEAT BACK ASY

1XD-F4790-01-00

$458.81

29

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

30

SEAT ASSY

1XD-F4700-01-00

Unavailable

31

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

32

DAMPER, SEAT

1XD-F4723-00-00

$1.43

33

DAMPER

1XD-F473Y-01-00

Unavailable

34

GROMMET

1XD-F4742-00-00

Unavailable

35

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

36

PLUG

2HC-F2417-00-00

$1.91

37

BOLT, FLANGE

95817-08012-00

$3.81
