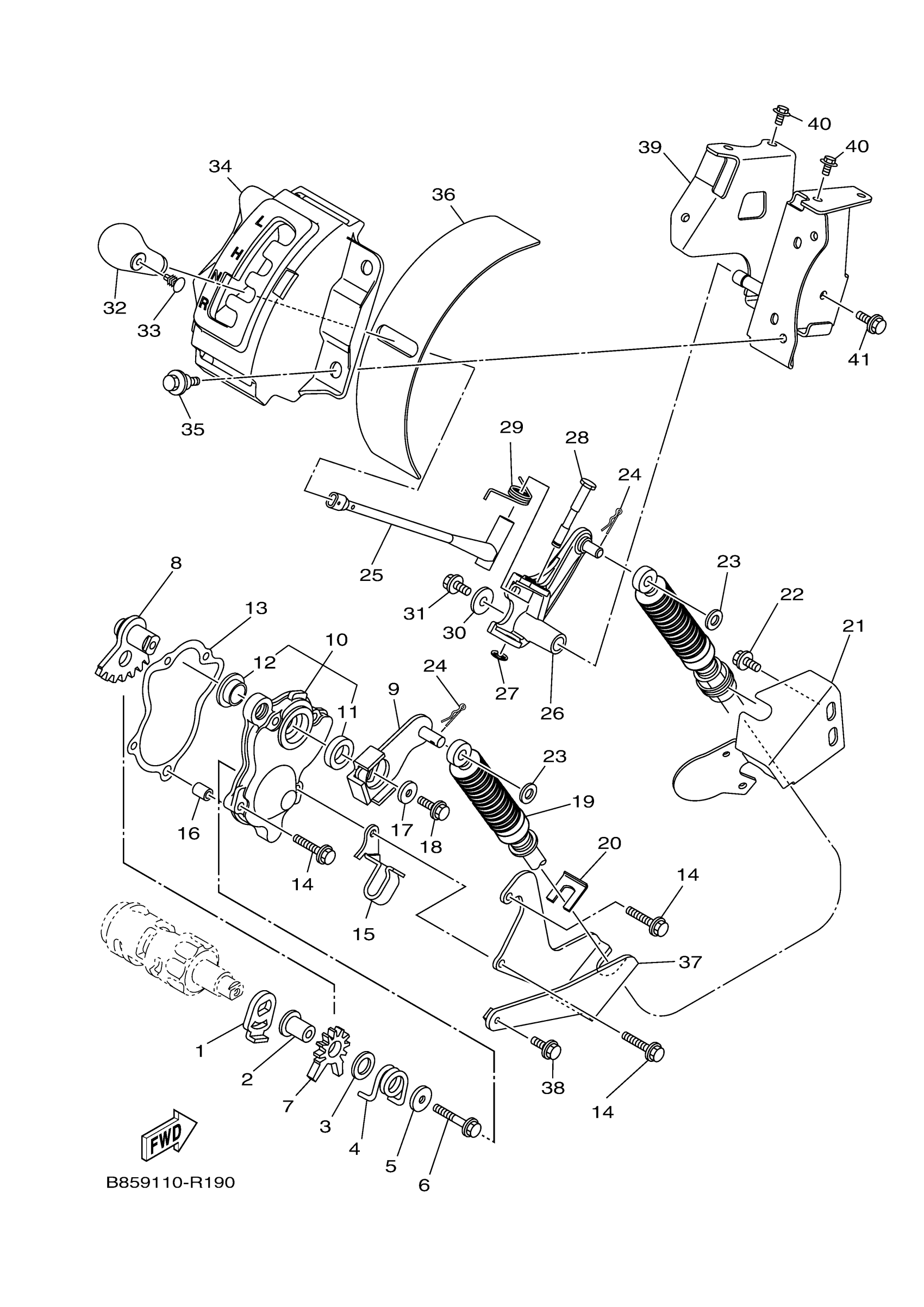

Yamaha YXC70VPXPG (VIKING VI EPS) BHE9 2023 SHIFT SHAFT Diagram
#
Description
Price
10
SHIFTER BRKT. ASSY
3B4-18380-00-00
Unavailable
12
SPACER 2
3B4-18582-00-00
Unavailable
15
CLAMP
90462-10048-00
Unavailable
16
PIN, DOWEL
99530-08012-00
Unavailable
18
BOLT, FLANGE
90105-06175-00
Unavailable
19
CABLE, CONTROL 1
2PG-2637E-00-00
Unavailable
20
CIRCLIP
1XD-25866-00-00
Unavailable
21
HOLDER, ADJUSTING
B42-F6381-00-00
Unavailable
22
BOLT, FLANGE
95817-08014-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
CLIP
90468-16001-00
Unavailable
25
LEVER COMP. 1
1XD-E8190-10-00
Unavailable
26
ARM, SHIFT 2
1XD-E8169-00-00
Unavailable
27
CIRCLIP(53L)
99001-06600-00
Unavailable
28
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
29
SPRING, RETURN
1HP-E8196-00-00
Unavailable
31
BOLT, FLANGE
95817-06016-00
Unavailable
32
KNOB, SHIFT LEVER
28P-18174-00-00
Unavailable
33
RIVET(81E)
90269-05055-00
Unavailable
34
GUIDE, SHIFT
1XD-E8172-00-00
Unavailable
35
BOLT
90109-06172-00
Unavailable
36
COVER, DUST
1HP-E8154-01-00
Unavailable
37
BRACKET, SHIFTER
1XD-18431-00-00
Unavailable
38
BOLT, FLANGE
95022-06012-00
Unavailable
39
PLATE, SHIFT ARM
1XD-E811A-00-00
Unavailable
40
BOLT, FLANGE
95817-06012-00
Unavailable
41
BOLT, FLANGE
90105-06831-00
Unavailable
