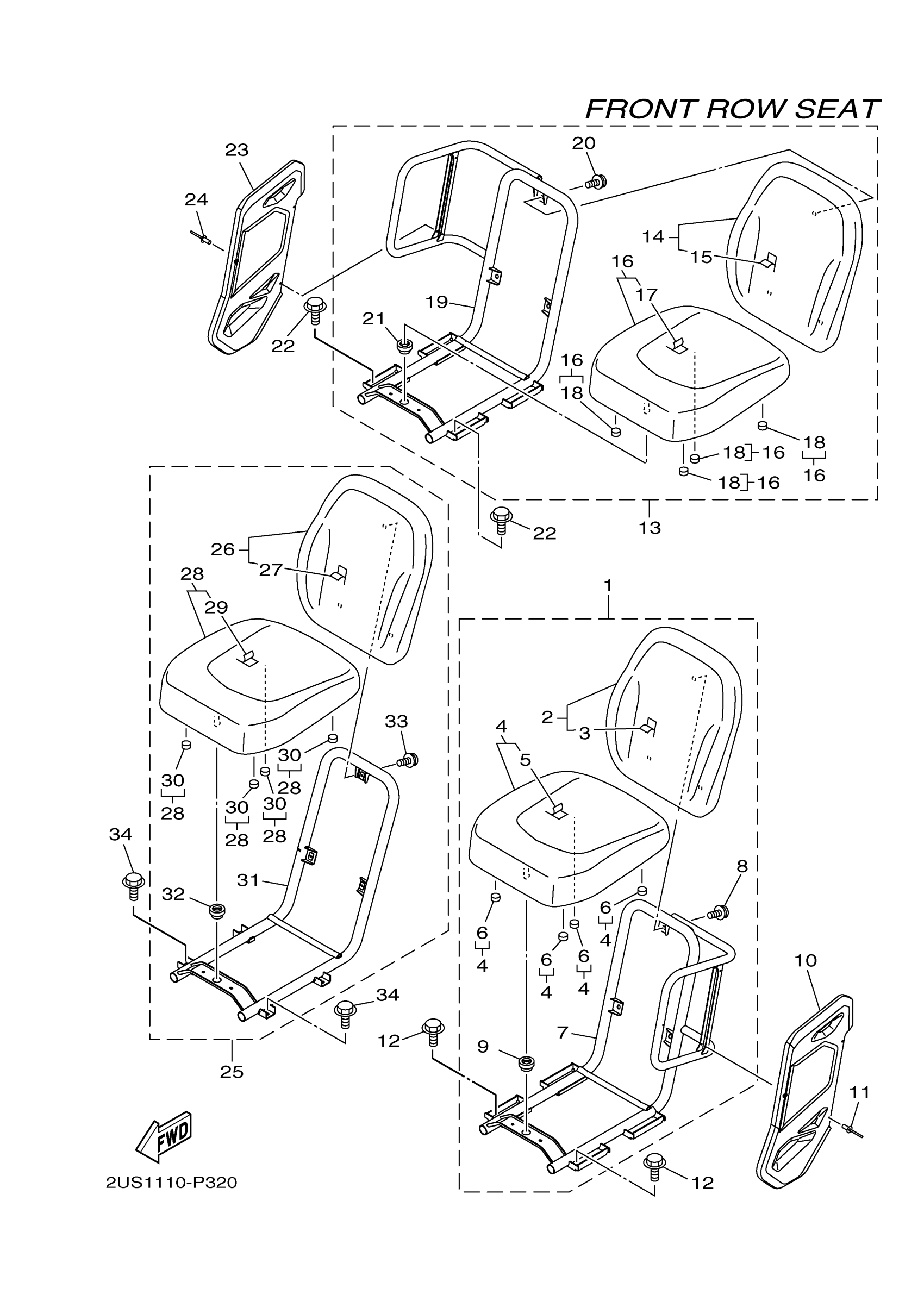

Yamaha YXC70VPXNG (VIKING VI EPS) BHE5 2022 SEAT Diagram
#
1
SEAT 1
2PG-F7498-02-00
Unavailable
2
SEAT BACK ASY
1XD-F4790-01-00
$449.99
3
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
4
SEAT ASSY
1XD-F4700-01-00
Unavailable
5
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
6
DAMPER, SEAT
1XD-F4723-00-00
$1.46
7
FRAME, SEAT 1
1XD-F473C-01-00
Unavailable
8
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
9
GROMMET
1XD-F4742-00-00
$3.69
10
COVER,2
1XD-F475X-01-00
$38.99
11
RIVET, BLIND(EU0,USA)
90267-489U9-00
$5.60
12
BOLT, FLANGE
95817-08012-00
$5.49
13
SEAT 2
2PG-F7499-02-00
Unavailable
14
SEAT BACK ASY
1XD-F4790-01-00
$449.99
15
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
16
SEAT ASSY
1XD-F4700-01-00
Unavailable
17
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
18
DAMPER, SEAT
1XD-F4723-00-00
$1.46
19
FRAME, SEAT 2
1XD-F473D-01-00
Unavailable
20
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
21
GROMMET
1XD-F4742-00-00
$3.69
22
BOLT, FLANGE
95817-08012-00
$5.49
23
COVER,2
1XD-F475X-01-00
$38.99
24
RIVET, BLIND(EU0,USA)
90267-489U9-00
$5.60
25
SEAT 3
2PG-F749A-02-00
Unavailable
26
SEAT BACK ASY
1XD-F4790-01-00
$449.99
27
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
28
SEAT ASSY
1XD-F4700-01-00
Unavailable
29
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
30
DAMPER, SEAT
1XD-F4723-00-00
$1.46
31
DAMPER
1XD-F473Y-01-00
Unavailable
32
GROMMET
1XD-F4742-00-00
$3.69
33
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
34
BOLT, FLANGE
95817-08012-00
$5.49
