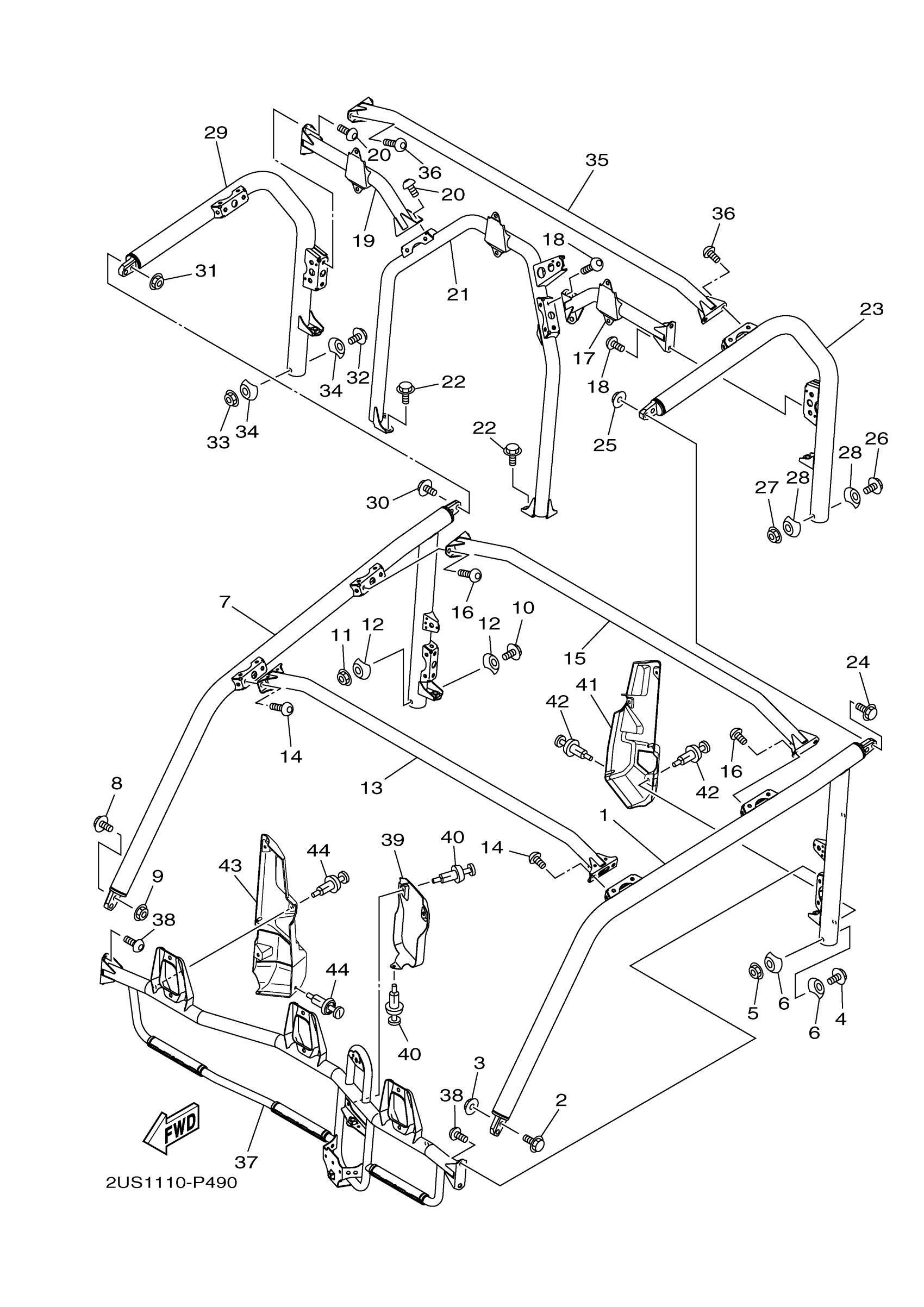

Yamaha YXC70VPXNG (VIKING VI EPS) BHE5 2022 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
2PG-K831A-10-00
$332.99
2
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
3
NUT, SELF-LOCKING
90185-10011-00
$5.60
4
BOLT, BUTTON HEAD
92012-10070-00
$3.76
5
NUT, SELF-LOCKING
90185-10011-00
$5.60
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
2PG-K831E-10-00
$332.99
8
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
9
NUT, SELF-LOCKING
90185-10011-00
$5.60
10
BOLT, BUTTON HEAD
92012-10070-00
$3.76
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
WASHER 2
1XD-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
2PG-K8392-10-00
$127.99
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
MEMBER, ROOF FRAME
2PG-K8393-10-00
$143.99
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
SUNROOF PIPE ASSY
2PG-K830E-10-00
Unavailable
18
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
19
SUNROOF PIPE ASSY
2PG-K830F-10-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
21
ROOF SUPPORT ASSY
2PG-K830A-10-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
FRAME, SUNROOF 1
2PG-K833M-10-00
Unavailable
24
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
25
NUT, SELF-LOCKING
90185-10011-00
$5.60
26
BOLT, BUTTON HEAD
92012-10070-00
$3.76
27
NUT, SELF-LOCKING
90185-10011-00
$5.60
28
WASHER 2
1XD-K7526-00-00
$5.49
29
FRAME, SUNROOF 2
2PG-K833R-10-00
Unavailable
30
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
31
NUT, SELF-LOCKING
90185-10011-00
$5.60
32
BOLT, BUTTON HEAD
92012-10070-00
$3.76
33
NUT, SELF-LOCKING
90185-10011-00
$5.60
34
WASHER 2
1XD-K7526-00-00
$5.49
35
MEMBER, ROOF FRAME
2PG-K8394-10-00
Unavailable
36
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
37
ROOF SUPPORT ASSY
2PG-K830C-10-00
Unavailable
38
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
39
COVER, 4
2PG-K8284-02-00
Unavailable
40
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
41
COVER,SD PILLAR LH
2PG-K813F-02-00
Unavailable
42
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
43
COVER,SD PILLAR RH
2PG-K813G-02-00
Unavailable
44
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
