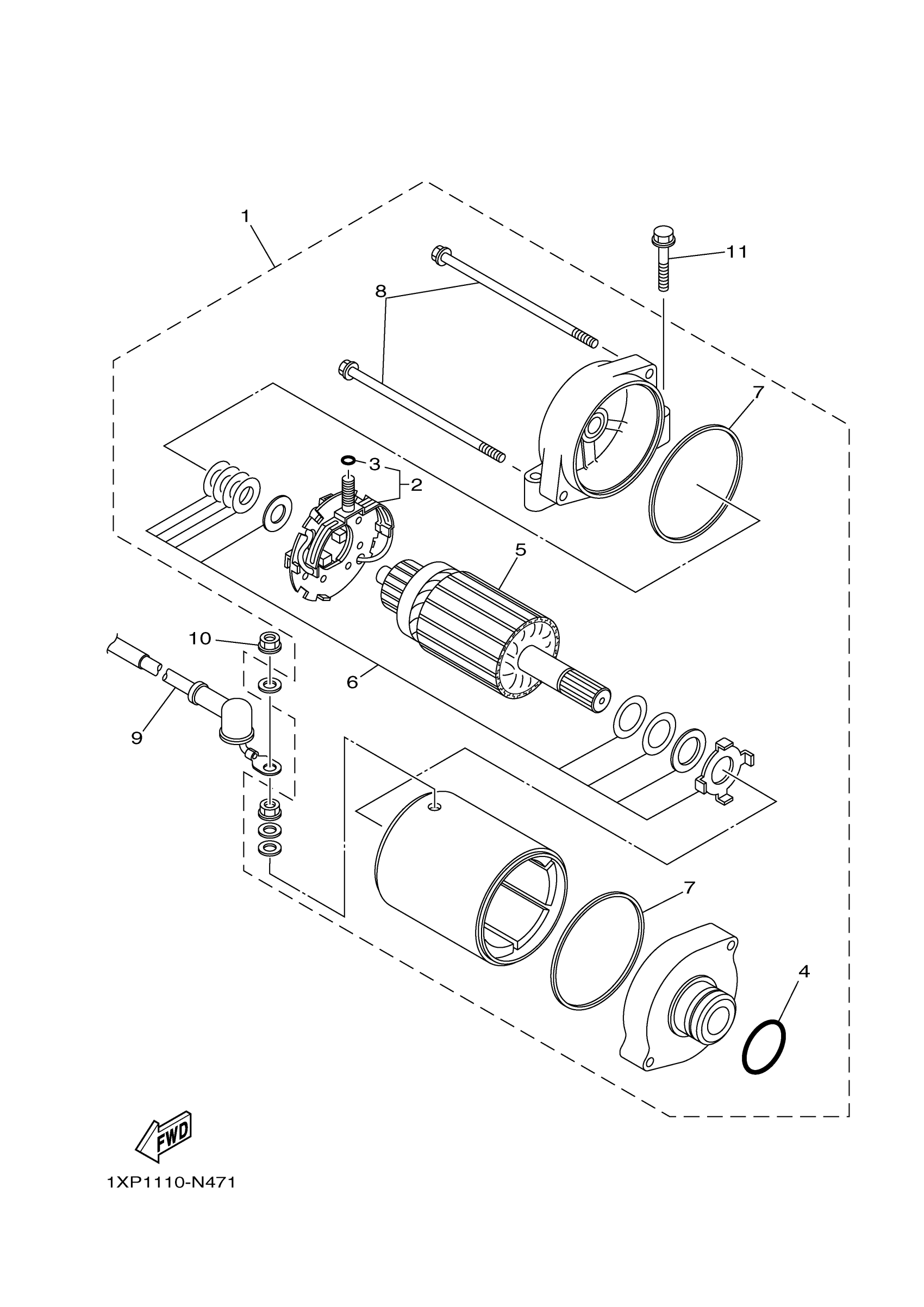

Yamaha YXC70VPXLG (VIKING VI EPS) B85T 2020 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1S3-81890-00-00

$185.11

2

BRUSH SET

3AJ-81801-00-00

$110.54

3

.. O-RING

3TB-81847-00-00

$2.31

4

O-RING (437)

93210-24235-00

$5.34

5

ARMATURE ASSY

4NK-81850-00-00

$307.82

6

WASHER KIT

3KS-81809-00-00

$4.71

7

GASKET

35C-81844-00-00

Unavailable

8

BOLT

3AJ-81826-00-00

$21.17

9

CORD, STARTER MOTOR

2PG-H1815-00-00

$49.72

10

NUT

4XV-8182A-00-00

$5.86

11

BOLT, FLANGE

95022-06030-00

$1.31
