Description

Price

1

FOOTREST, REAR 1

2PG-F7431-00-00

$64.99

2

NUT, SPRING

90183-060A6-00

$5.49

3

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

FOOTREST, REAR 2

2PG-F7441-00-00

$69.99

7

NUT, SPRING

90183-060A6-00

$5.49

8

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

COVER, FOOTREST

2PG-F7423-00-00

$50.99

12

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

COVER, REAR FOOTRE

2PG-F7433-00-00

$37.99

16

NUT, SPRING

90183-060A6-00

$5.49

17

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

18

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

19

COVER, REAR FOOTRE

2PG-F7444-00-00

Unavailable

20

NUT, SPRING

90183-060A6-00

$5.49

21

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

22

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

23

DAMPER

B42-2174X-00-00

Unavailable

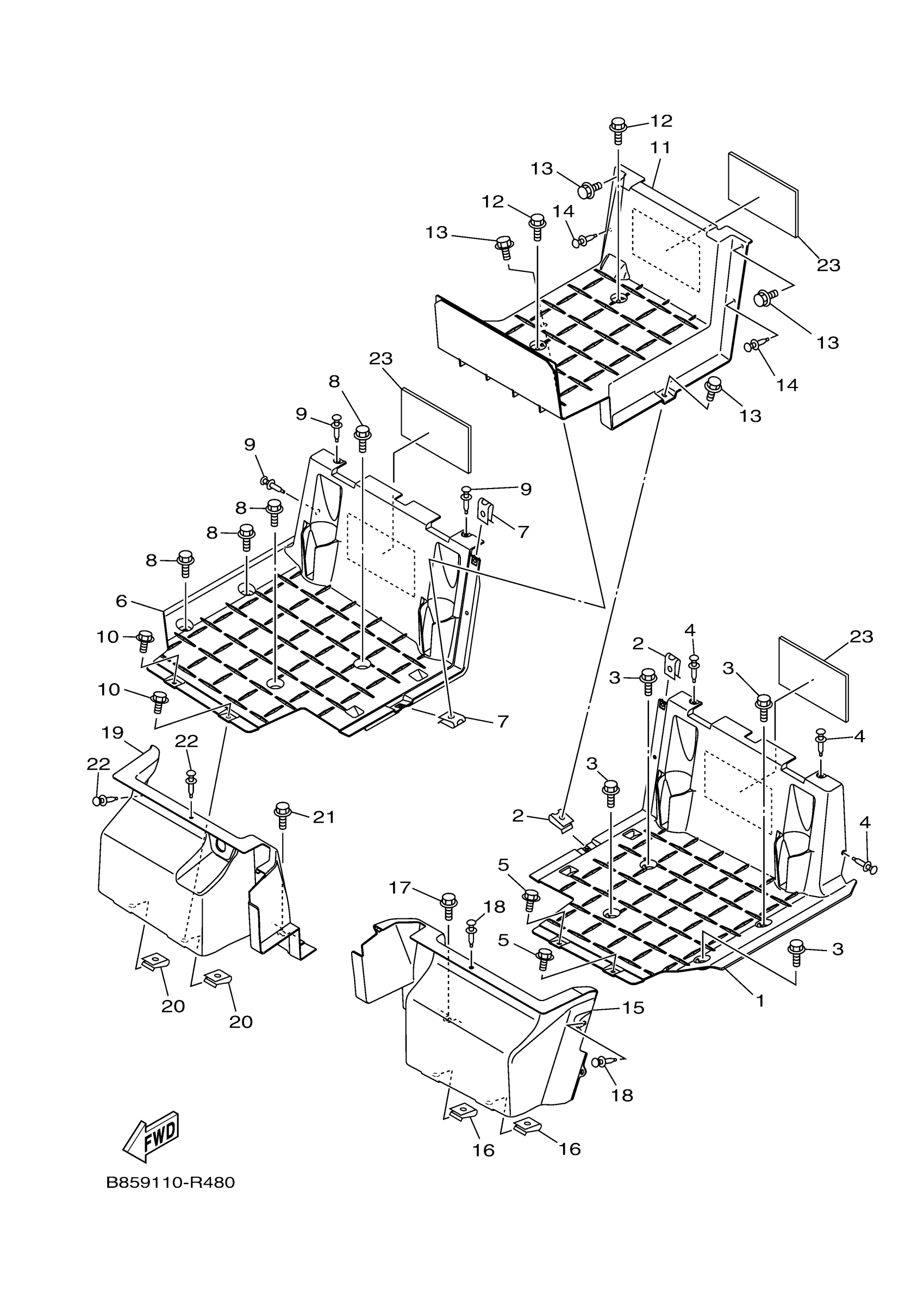

Yamaha YXC70VPXLG (VIKING VI EPS) B85T 2020 STAND FOOTREST 2 Diagram

FOOTREST, REAR 1

NUT, SPRING

BOLT, SPECIAL 1

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

FOOTREST, REAR 2

NUT, SPRING

BOLT, SPECIAL 1

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

COVER, FOOTREST

BOLT, SPECIAL 1

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

COVER, REAR FOOTRE

NUT, SPRING

BOLT, SPECIAL 1

RIVET,SPEC'L SHAPE

COVER, REAR FOOTRE

NUT, SPRING

BOLT, SPECIAL 1

RIVET,SPEC'L SHAPE

DAMPER
