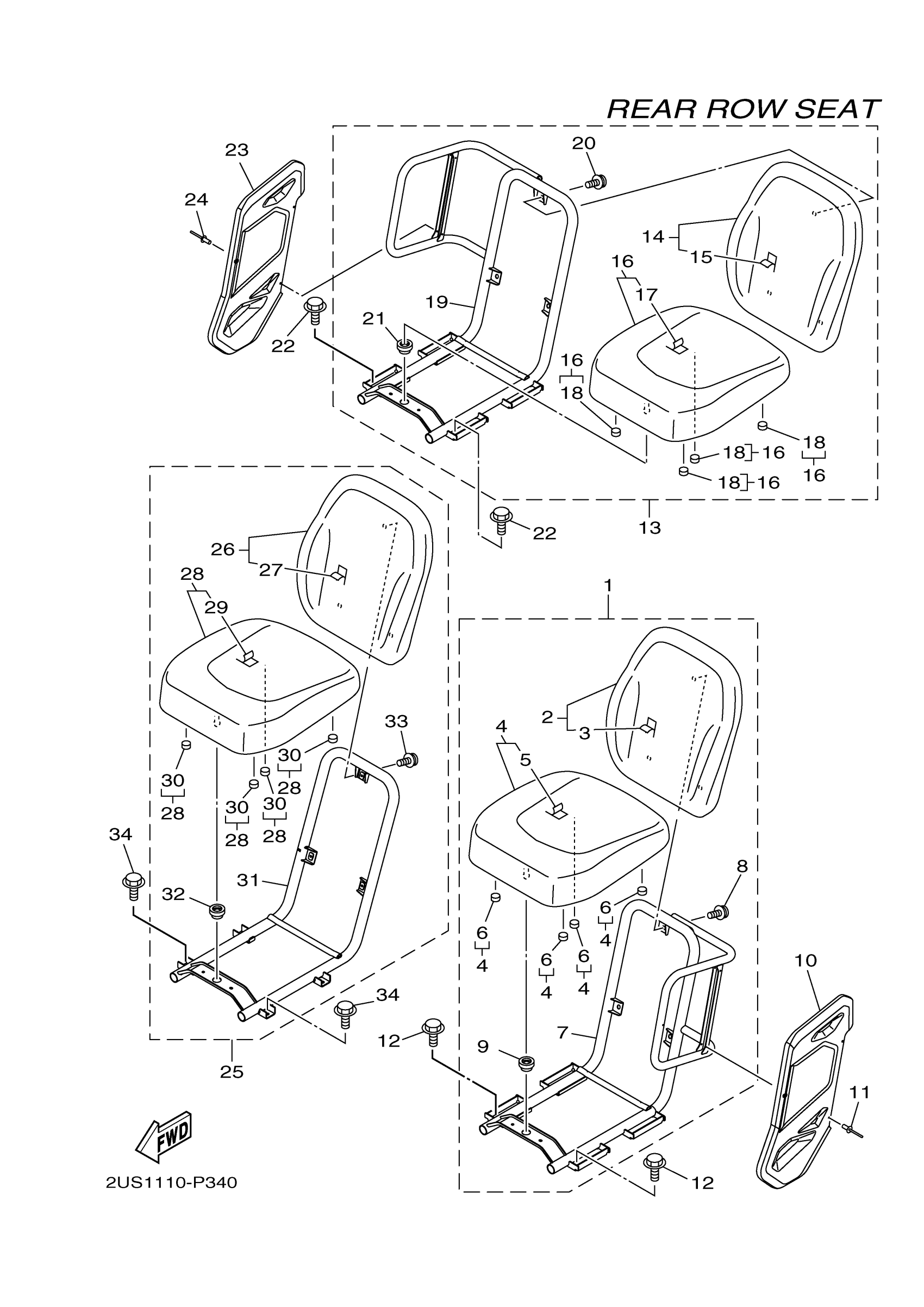

Yamaha YXC70VPXLG (VIKING VI EPS) B85T 2020 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$268.00

2

SEAT BACK ASY

1XD-F4790-01-00

$479.98

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$170.08

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$161.25

6

DAMPER, SEAT

1XD-F4723-00-00

$1.49

7

FRAME, SEAT 1

1XD-F473C-01-00

$299.08

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

Unavailable

10

COVER,2

1XD-F475X-01-00

$31.51

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.98

13

SEAT 2

2PG-F7499-02-00

$314.06

14

SEAT BACK ASY

1XD-F4790-01-00

$479.98

15

COVER,SINGLE SEAT

1XD-F4711-01-00

$170.08

16

SEAT ASSY

1XD-F4700-01-00

Unavailable

17

COVER,DOUBLE SEAT

1XD-F4731-01-00

$161.25

18

DAMPER, SEAT

1XD-F4723-00-00

$1.49

19

FRAME, SEAT 2

1XD-F473D-01-00

$257.54

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

$3.98

23

COVER,2

1XD-F475X-01-00

$31.51

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-02-00

$329.95

26

SEAT BACK ASY

1XD-F4790-01-00

$479.98

27

COVER,SINGLE SEAT

1XD-F4711-01-00

$170.08

28

SEAT ASSY

1XD-F4700-01-00

Unavailable

29

COVER,DOUBLE SEAT

1XD-F4731-01-00

$161.25

30

DAMPER, SEAT

1XD-F4723-00-00

$1.49

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

Unavailable

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.98
