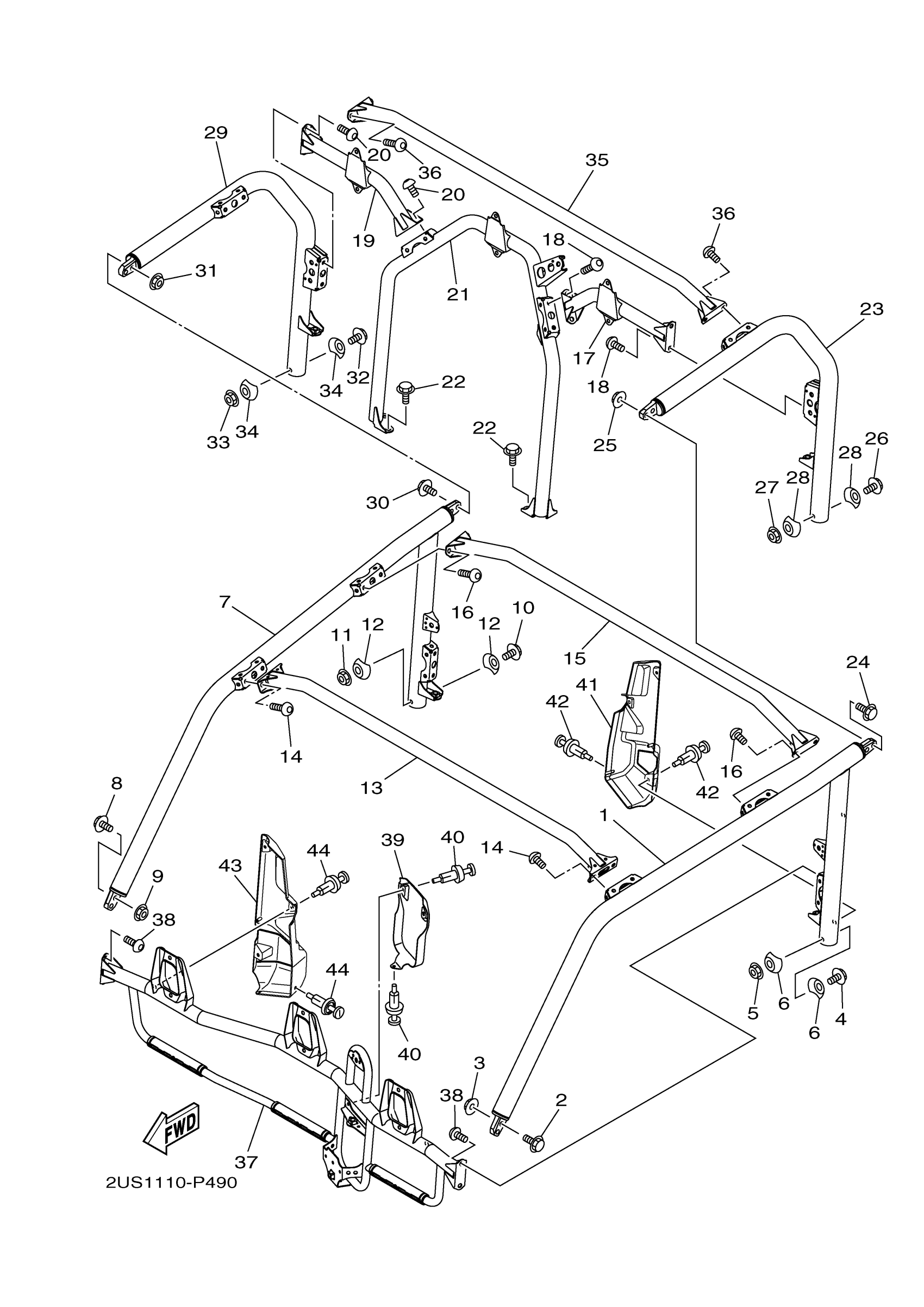

Yamaha YXC70VPXLG (VIKING VI EPS) B85T 2020 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2PG-K831A-10-00

Unavailable

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10070-00

$3.92

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

2PG-K831E-10-00

Unavailable

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10070-00

$3.92

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

2PG-K8392-10-00

$106.91

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

MEMBER, ROOF FRAME

2PG-K8393-10-00

$120.85

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

SUNROOF PIPE ASSY

2PG-K830E-10-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

19

SUNROOF PIPE ASSY

2PG-K830F-10-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

2PG-K830A-10-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

FRAME, SUNROOF 1

2PG-K833M-10-00

Unavailable

24

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

25

NUT, SELF-LOCKING

90185-10011-00

$3.67

26

BOLT, BUTTON HEAD

92012-10070-00

$3.92

27

NUT, SELF-LOCKING

90185-10011-00

$3.67

28

WASHER 2

1XD-K7526-00-00

$3.92

29

FRAME, SUNROOF 2

2PG-K833R-10-00

Unavailable

30

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

31

NUT, SELF-LOCKING

90185-10011-00

$3.67

32

BOLT, BUTTON HEAD

92012-10070-00

$3.92

33

NUT, SELF-LOCKING

90185-10011-00

$3.67

34

WASHER 2

1XD-K7526-00-00

$3.92

35

MEMBER, ROOF FRAME

2PG-K8394-10-00

Unavailable

36

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

37

ROOF SUPPORT ASSY

2PG-K830C-10-00

Unavailable

38

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

39

COVER, 4

2PG-K8284-02-00

Unavailable

40

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

41

COVER,SD PILLAR LH

2PG-K813F-02-00

Unavailable

42

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

43

COVER,SD PILLAR RH

2PG-K813G-02-00

Unavailable

44

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
