MASTER CYLINDER

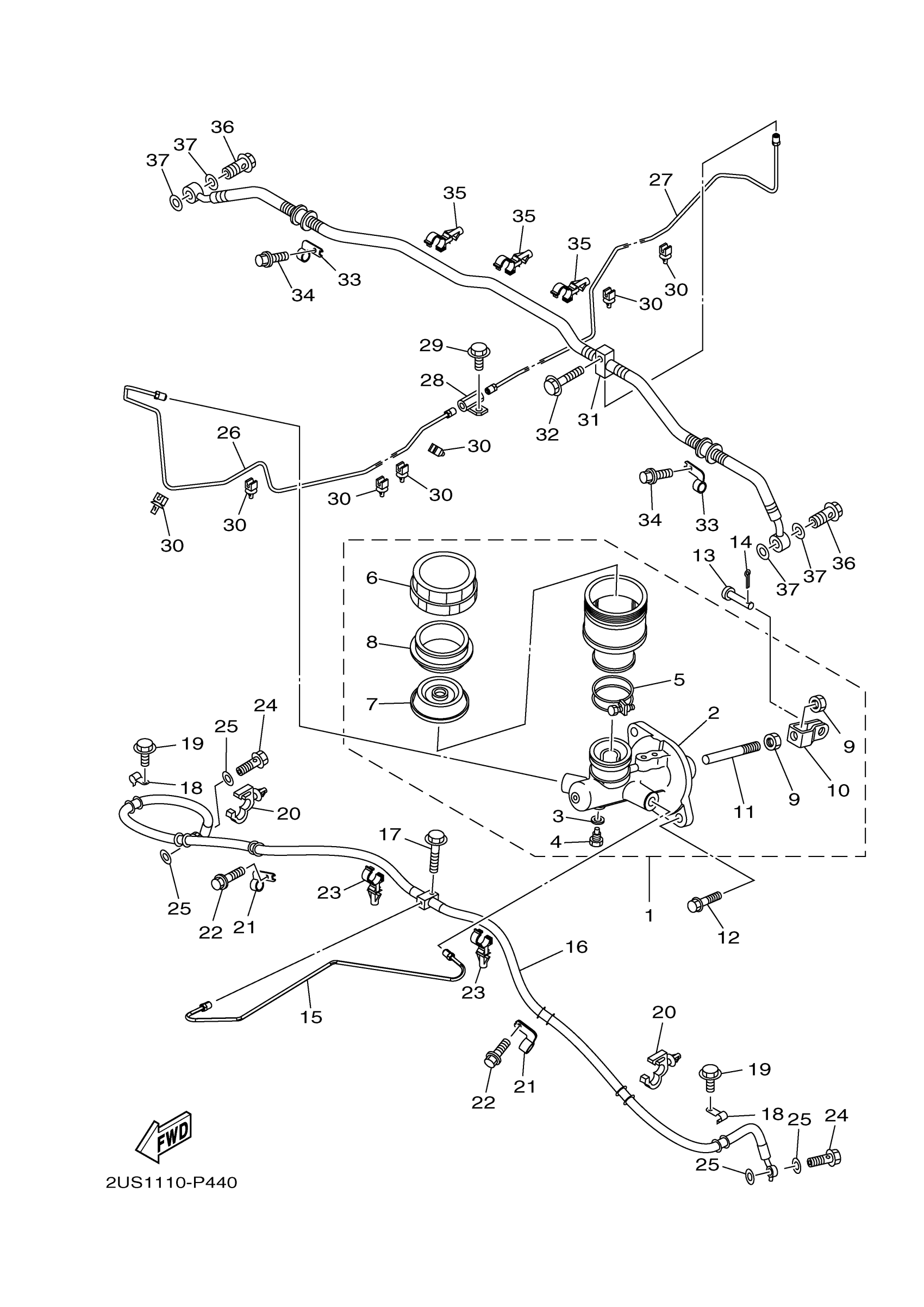

Yamaha YXC70VPXKG (VIKING VI EPS) B85N 2019 MASTER CYLINDER Diagram
#
1
MASTER CYLINDER AS
2PG-2583T-01-00
Unavailable
2
CYLINDER KIT, MAST
5UG-25808-00-00
Unavailable
3
WASHER, OIL BOLT
5UG-25878-00-00
Unavailable
4
BOLT, OIL 1
5UG-25877-00-00
$0.99
5
BAND
5UG-25719-00-00
$6.99
6
CAP, RESERVOIR
5UG-25852-00-00
$17.49
7
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
$9.99
8
BUSH,DIAPHRAGM
5UG-25855-00-00
$5.49
9
NUT, HEXAGON SMALL
95317-08700-00
$9.49
10
JOINT
2YK-27222-00-00
$21.99
11
PUSH ROD COMP.
5UG-25880-00-00
Unavailable
12
BOLT, FLANGE
90105-08129-00
$4.88
13
PIN, CLEVIS
90240-08005-00
$8.49
14
PIN, COTTER
91490-20025-00
$1.99
15
PIPE, BRAKE 2
1XD-F5882-01-00
$13.49
16
HOSE, BRAKE 1
1XD-F5872-02-00
Unavailable
17
BOLT, FLANGE
95817-06025-00
Unavailable
18
HOLDER, BRAKE HOSE 1
5KM-25875-00-00
Unavailable
19
BOLT, FLANGE
95812-06010-00
Unavailable
20
CLAMP
90464-18002-00
Unavailable
21
HOLDER, BRAKE HOSE
2PG-25876-00-00
Unavailable
22
BOLT, FLANGE
95812-06010-00
Unavailable
23
CLAMP
90464-16012-00
Unavailable
24
BOLT, UNION
90401-10015-00
Unavailable
25
WASHER, PLATE(481)
90201-10118-00
Unavailable
26
PIPE, BRAKE
2PG-F5871-01-00
Unavailable
27
PIPE, BRAKE 3
2PG-F5883-00-00
Unavailable
28
JOINT
JX2-25885-11-00
Unavailable
29
BOLT, FLANGE
90105-06831-00
Unavailable
30
CLAMP 1
5KM-81677-00-00
Unavailable
31
HOSE, BRAKE 2
1XD-F5873-02-00
Unavailable
32
BOLT, FLANGE
90105-06833-00
Unavailable
33
HOLDER, BRAKE HOSE
2PG-25876-00-00
Unavailable
34
BOLT, FLANGE
95812-06010-00
Unavailable
35
CLAMP
90464-16012-00
Unavailable
36
BOLT, UNION
90401-10015-00
Unavailable
37
WASHER, PLATE(481)
90201-10118-00
Unavailable
